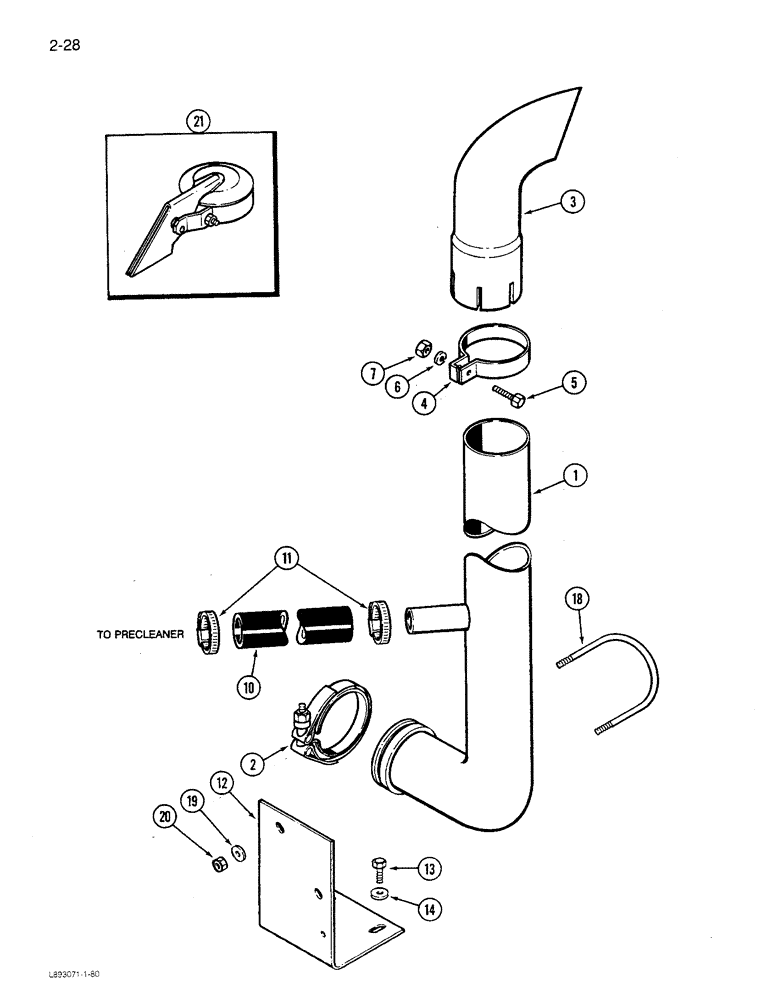

Запчасти Case IH 1680 (2-028) - EXHAUST SYSTEM, 6TA-830 ENGINE (01) - ENGINE

1

84609C1

TUBE,85 mm ID x 88.9 mm OD x 620, 197.4 mm L

- aspirator

1шт.

For units without the cross fan cleaning system, for units with cross fan cleaning system dealer may need to order 120116A1 which measures 27.48 from end to center , the 84609C1 measures 24.4" from end to center.

1шт.

2

A170807

CLAMP,102mm ID

tube retaining

1шт.

3

1275833C2

TUBE,89.92 mm ID, 88.9 mm OD

ELBOW - exhaust

1шт.

4

1321280C1

CLAMP

- elbow, exhaust pipe

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - ejector, 280 mm (Order 407001R2 and, Serial Range: cut-length)

1шт.

11

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

2шт.

12

84569C3

BRACKET

- tube support

1шт.

13

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

14

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

18

S93558

U-BOLT

- mounting, 3/8 NC x 5 inch

1шт.

19

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

20

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

21

A19795

CAP

ASSEMBLY - weather, exhaust (If equipped)

1шт.
