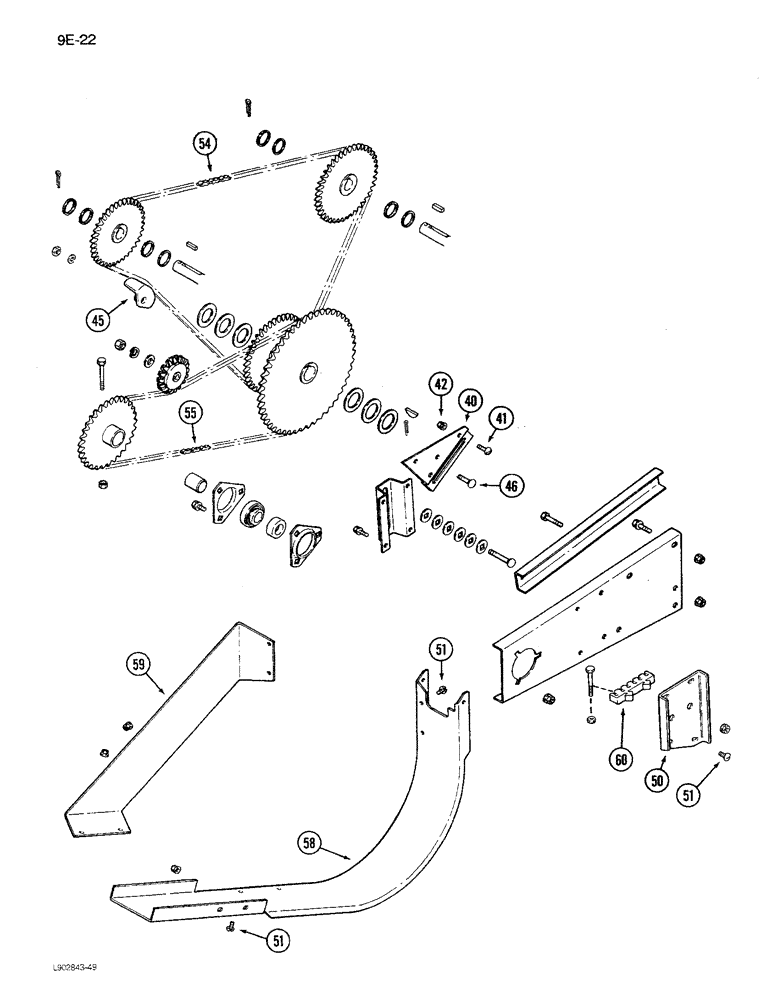

Запчасти Case IH 1680 (9E-22) - GRAIN TANK UNLOADER CHAIN DRIVE, PRIOR TO P.I.N. JJC0115352 (CONTD) (17) - GRAIN TANK & UNLOADER

40

193779C1

SUPPORT

PLATE - support, continued

1шт.

41

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

3шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

45

936878R1

BLOCK

- tightener

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

1шт.

50

1302435C2

SUPPORT

- shield

1шт.

51

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

8шт.

54

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Prior to P.I.N. JJC0047801 use 157 links of No. 40 chain and (2) offset links 1303D.

1шт.

P.I.N. JJC0047801 through JJC0115352, use 161 links of No. 40 chain and (1) connecting link 1301D.

1шт.

55

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Use 133 links of No. 50 chain and (1) connecting link 1310D.

1шт.

58

1302434C2

GUARD

SHIELD - drive, unloader

1шт.

59

183351C1

PLATE

- side

1шт.

60

3102155R1

HOLDER

- shear bolt

1шт.
