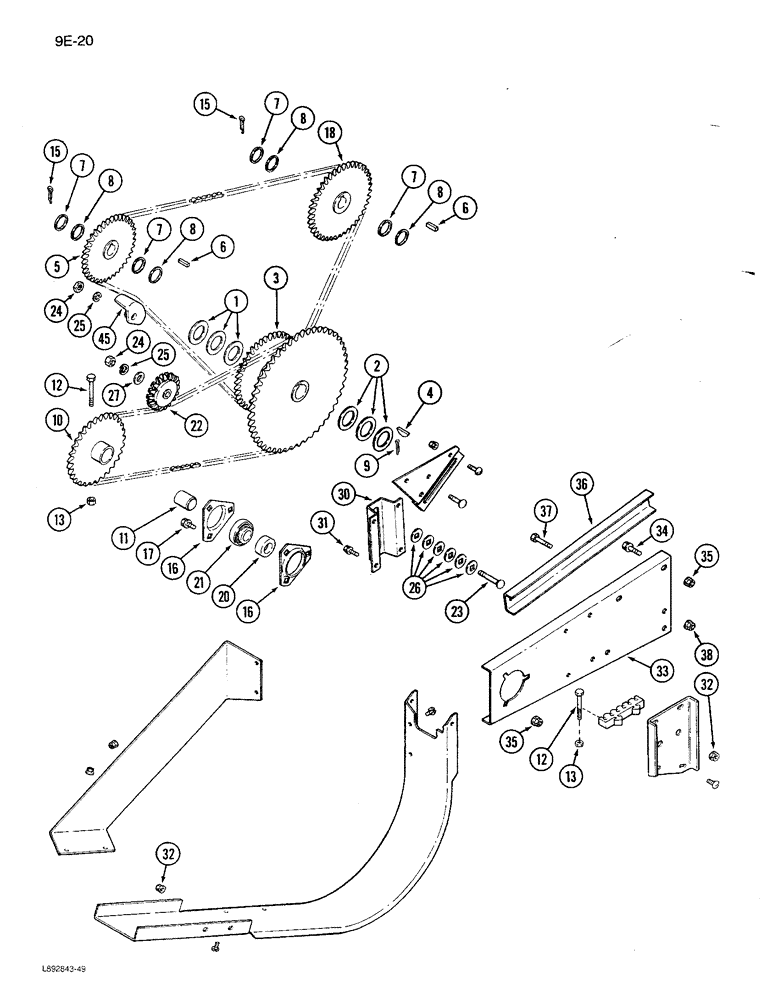

Запчасти Case IH 1680 (9E-20) - GRAIN TANK UNLOADER CHAIN DRIVE, PRIOR TO P.I.N. JJC0115352 (17) - GRAIN TANK & UNLOADER

1

162679C1

WASHER

WASHER - flat, 1-13/32 x 2-1/4 x 1/16 inch

3шт.

2

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- flat, 1-13/32 x 2-1/4 x 1/8 inch

1шт.

3

192511C2

SPROCKET ASSY.

SPROCKET - driven

1шт.

3

REF

INSTRUCTION

SPROCKET - driven (Not Shown)

1шт.

For use with retrofit kit only. See Figure 9E-30.

1шт.

4

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

192922C1

SPROCKET

- driven, front (43 teeth)

1шт.

Prior to P.I.N. JJC0047801.

1шт.

5

187331C1

SPROCKET ASSY.

SPROCKET - driven, front (49 teeth)

1шт.

P.I.N. JJC0047801 through JJC0115351.

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 3/32 inch

8шт.

8

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

9

432-2432

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

10

1321167C92

DRIVE SPROCKET

SPROCKET ASSEMBLY - drive, Incl 11

1шт.

11

574294R1

BUSHING

- sprocket, Serviced if Needed but is Included in Ref. 10

1шт.

12

326-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

4шт.

13

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

16

571425R1

FLANGED BEARING

- bearing

4шт.

17

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

6шт.

18

192925C1

SPROCKET

- driven, rear (37 teeth)

1шт.

Prior to P.I.N. JJC0047801.

1шт.

18

192922C1

SPROCKET

- driven, rear (43 teeth)

1шт.

P.I.N. JJC0047801 through JJC0115351.

1шт.

20

557115R11

COLLAR

COLLAR ASSEMBLY - locking

2шт.

21

455959R92

2шт.

Ref #21 - The larger Collar Assy is 1319397C1.

1шт.

22

565442R91

SPROCKET

- tightener (17 teeth)

1шт.

23

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 2-1/2 inch

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

- square hole, 17/32 x 1-1/4 x 1/8 inch

1шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

30

192901C1

SUPPORT

BRACKET - support, sprocket

1шт.

31

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

12шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

33

192899C2

SUPPORT

- outer, jackshaft

1шт.

34

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

SCREW - hex flange, 3/8 NC x 1-1/4 inch

3шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

9шт.

36

1319469C1

CHANNEL

- support

1шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

38

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.
