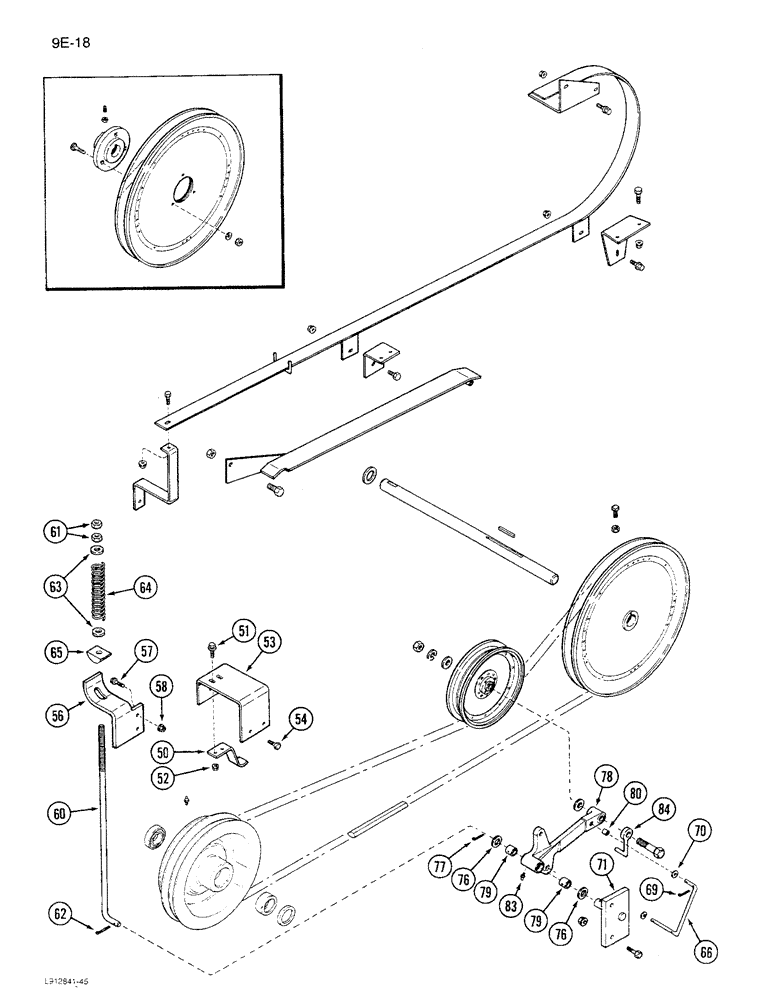

Запчасти Case IH 1680 (9E-18) - GRAIN TANK UNLOADER BELT DRIVE, P.I.N. JJC0115352 AND AFTER (CONTD) (17) - GRAIN TANK & UNLOADER

50

1347452C1

SUPPORT

- trap, belt, continued

1шт.

51

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - lock, 3/8 NC x 1 inch

2шт.

52

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

53

194493C2

SUPPORT

CHANNEL - inner, belt guide

1шт.

54

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

56

185070C1

SUPPORT

- spring

1шт.

57

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

58

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

60

185061C1

ROD

- tightener

1шт.

61

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

62

432-1216

COTTER PIN,3/16" x 1"

1шт.

63

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

64

391745R1

SPRING

- arm, tightener

1шт.

65

194652C1

PIVOT

- rod

1шт.

66

193820C1

ROD

- retainer

1шт.

69

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

70

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

4шт.

71

1324456C1

SUPPORT

- arm, tightener

1шт.

76

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch

2шт.

77

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

78

185059C93

LEVER ASSY.

ARM ASSEMBLY - tightener, Includes: Ref. 79 - 83

1шт.

79

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

- arm

2шт.

80

1302225C1

BUSHING

- arm

1шт.

83

87414

LUBE NIPPLE,1/4" - 28

FITTING - straight lube, 1/4 inch

1шт.

84

194894C1

ROD

- belt, upper

1шт.
