Запчасти Case IH 1680 (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

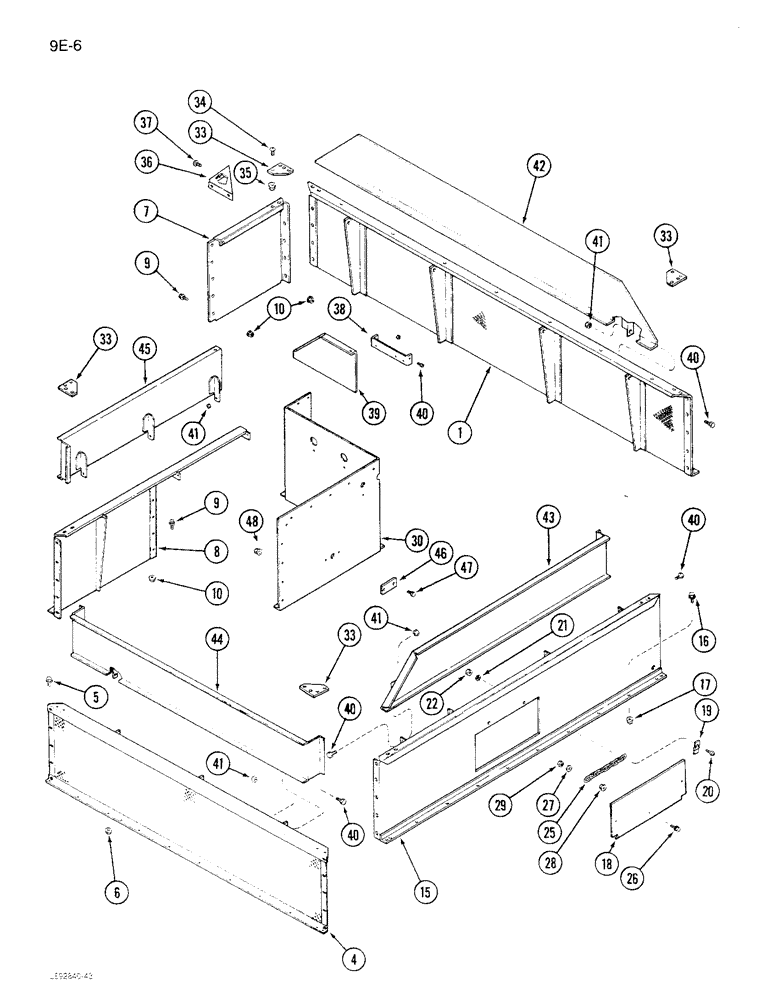

Схема запчастей Case IH 1680 - (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER
45
41
30
38
4
20
8
1
34
10
41
33
47
46
41
16
15
39
6
40
42
40
37
10
21
25
41
29
33
33
19
40
44
22
33
9
26
40
7
35
5
9
40
27
48
17
36
18
43
28

Артикул

Название

Примечание

Количество

1

1327652C4

SHIELD

SUPPORT - graion tank, front extension (Replaces 1327652C3)

1шт.

4

1327593C3

SHIELD

EXTENSION - grain tank rear (Replaces 1327593C2)

1шт.

5

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

21шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

21шт.

7

1321775C1

EXTENSION

- grain tank, left front

1шт.

8

1321771C1

EXTENSION

- grain tank, left rear

1шт.

9

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

1шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

15

1327640C1

EXTENSION

- grain tank, right

1шт.

16

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

12шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

18

1327644C2

PLATE

DOOR - extension

1шт.

19

167800C1

CLIP

LATCH - door

2шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- pan head slotted machine, No. 10 NC x 3/4 inch

2шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

225-14110

NUT,#10-24

2шт.

25

167570C1

CHAIN,203.2mm L

- safety

1шт.

26

187797C1

BOLT,Hex Serr Flg, 1/4" - 20 x 1"

- hex flange, 1/4 NC x 1 inch

2шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

28

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

29

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC

2шт.

30

1317635C1

SUPPORT

- left center extension

1шт.

33

1321757C1

PLATE

BAR - extension

4шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

16шт.

35

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

16шт.

36

1327510C1

SUPPORT

- center extension gusset

1шт.

37

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

4шт.

38

1321802C1

CHANNEL

- left front flip-up

1шт.

39

1321829C1

EXTENSION

- left front flip-up

1шт.

40

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

16шт.

41

25077R1

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

16шт.

42

1321779C2

EXTENSION

upper front flip-up, Replaces: 1321779C1

1шт.

For umbrella extension, dealer can go to Mauer Mfg in Iowa , 712-262-2992.

1шт.

43

1979256C1

EXTENSION

ASSEMBLY - flip-up, right

1шт.

44

1979230C1

CABLE EXTENSION

EXTENSION ASSEMBLY - flip-up, rear

1шт.

45

1979232C1

CABLE EXTENSION

EXTENSION ASSEMBLY - flip-up, left rear

1шт.

46

1317645C1

COVER

- bearing hole

1шт.

47

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange, 5/16 NC x 1/2 inch

2шт.

48

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

Выбрано товаров: 40
