Запчасти Case IH 1680 (9E-04) - GRAIN TANK LOWER SUPPORTS (17) - GRAIN TANK & UNLOADER

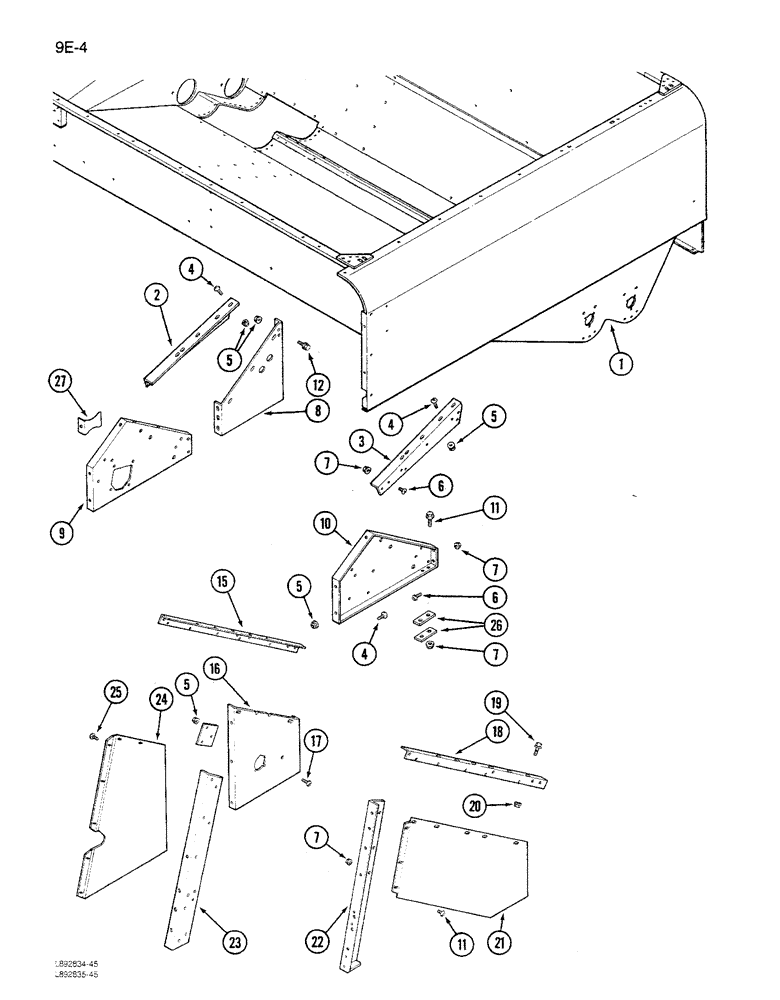

Схема запчастей Case IH 1680 - (9E-04) - GRAIN TANK LOWER SUPPORTS (17) - GRAIN TANK & UNLOADER
11
5
19
21
20
6
27
4
25
2
5
17
4
24
8
7
1
9
7
5
15
23
16
5
12
7
3
22
4
10
11
26
18
6
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

TANK ASSEMBLY - grain (See Figure 9E-02)

1шт.

2

192768C2

SUPPORT

- grain tank, diagonal left

1шт.

3

192769C2

SUPPORT

- grain tank, diagonal right

1шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

6

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

1шт.

7

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

8

193429C2

SUPPORT

- grain tank, left front

1шт.

9

192771C2

SUPPORT

- grain tank, center left

1шт.

10

192772C2

SUPPORT

- grain tank, center right

1шт.

11

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

17шт.

12

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

6шт.

15

193469C1

SUPPORT

ANGLE - grain tank, rear bottom left

1шт.

16

1347380C1

COVER

SUPPORT - grain tank, rear support fixed left

1шт.

17

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

18

193470C1

SUPPORT

ANGLE - grain tank, rear bottom right

1шт.

19

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

4шт.

20

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

10шт.

21

193465C1

SUPPORT

- grain tank, rear right

1шт.

22

181394C1

SUPPORT

- grain tank, rear vertical right

1шт.

23

193462C2

SUPPORT

- grain tank, rear vertical left

1шт.

24

193464C1

SUPPORT

- grain tank, rear left

1шт.

25

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

17шт.

26

1302549C1

SHIM

BAR - grain tank, front left post

1шт.

27

193531C1

SUPPORT

- filler

4шт.

Выбрано товаров: 25
