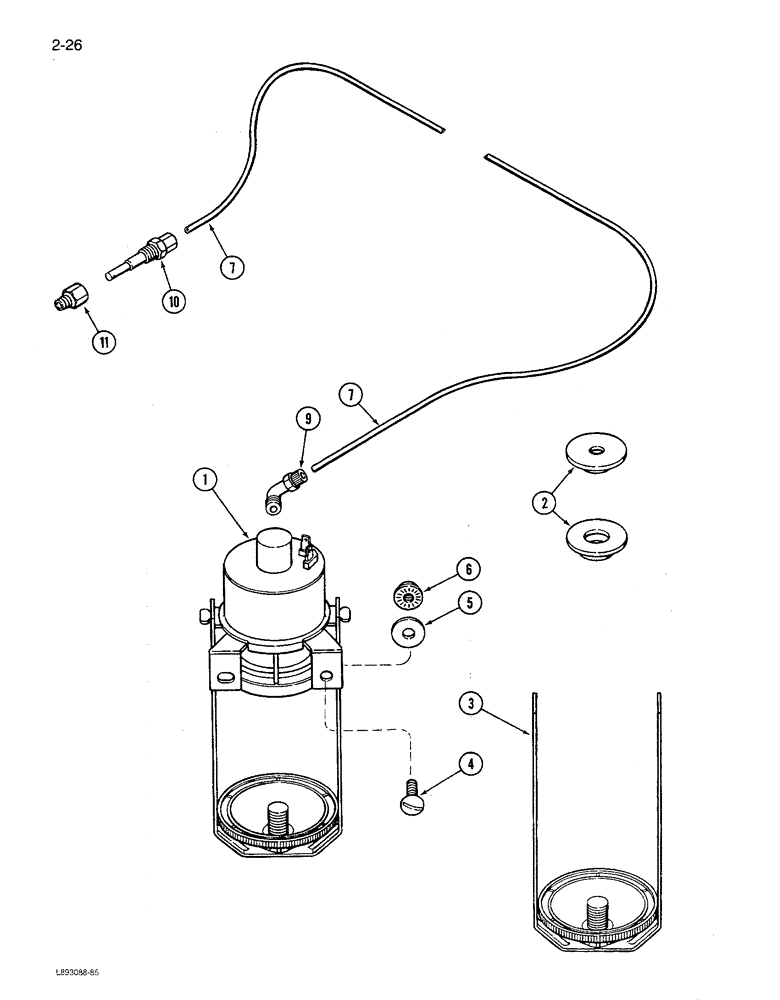

Запчасти Case IH 1680 (2-026) - COLD START ASSISTANCE, 6TA-830 ENGINE (01) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether start, Includes: Ref. 2 and 3

1шт.

2

1963571C1

GASKET

GASKET - injector solenoid, 19/32 inch diameter

1шт.

3

121851C1

RETAINER

BAIL ASSEMBLY - injector

1шт.

4

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head lock, 5/16 NC x 1 inch

2шт.

5

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

7

NSS

NOT SOLD SEPARAT

TUBE - nylon, 72 inch (Order 1954063CX and, Serial Range: cut-length)

1шт.

9

289970C91

FITTING

ELBOW ASSEMBLY - 90 degree, 1/8 PT x 1/8 inch thread

1шт.

10

A172900

NOZZLE CAP

NOZZLE - atomizer, ether

1шт.

11

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer, 1/4 x 1/8 inch PT

1шт.
