Запчасти Case IH 1680 (9D-30) - ELEVATOR DRIVE JACKSHAFT (CONTD) (16) - GRAIN ELEVATORS & AUGERS

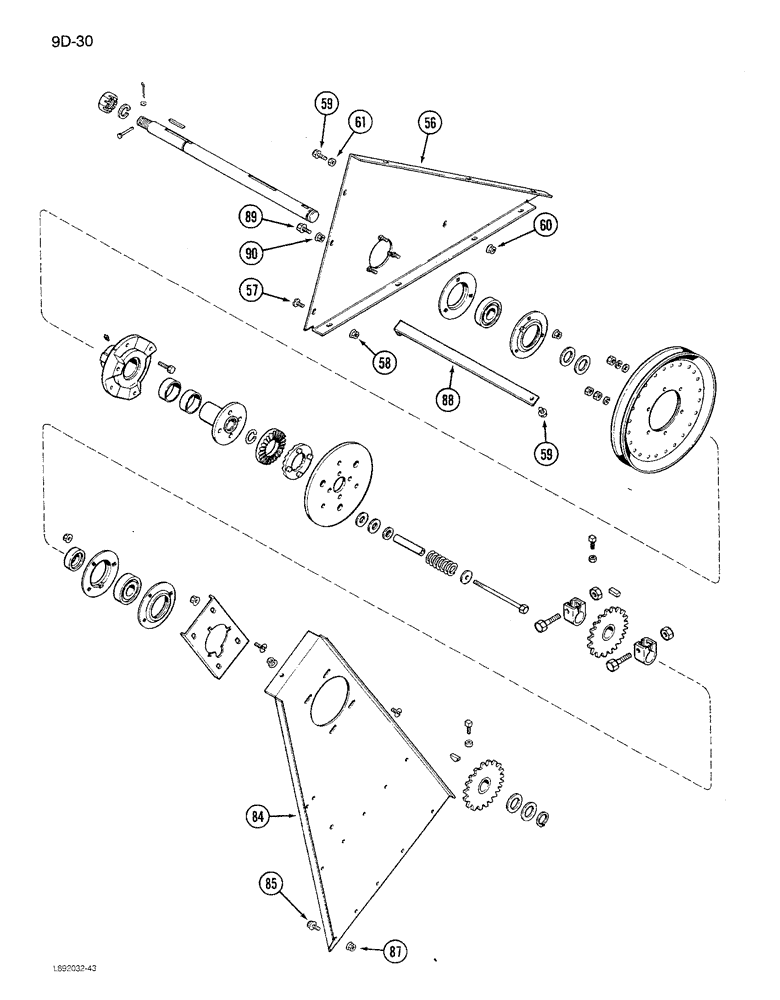

Схема запчастей Case IH 1680 - (9D-30) - ELEVATOR DRIVE JACKSHAFT (CONTD) (16) - GRAIN ELEVATORS & AUGERS
90
60
61
87
89
85
56
57
59
59
58
84
88

Артикул

Название

Примечание

Количество

56

183206C1

SUPPORT

- inner, jackshaft, continued

1шт.

57

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

6шт.

58

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

59

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex flange lock, 3/8 NC x 1 inch

2шт.

60

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

61

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

1шт.

84

192190C1

SUPPORT

- outer elevator jackshaft

1шт.

85

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

10шт.

87

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

10шт.

88

192230C1

SUPPORT

BRACE - outer support

1шт.

89

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

90

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

Выбрано товаров: 12
