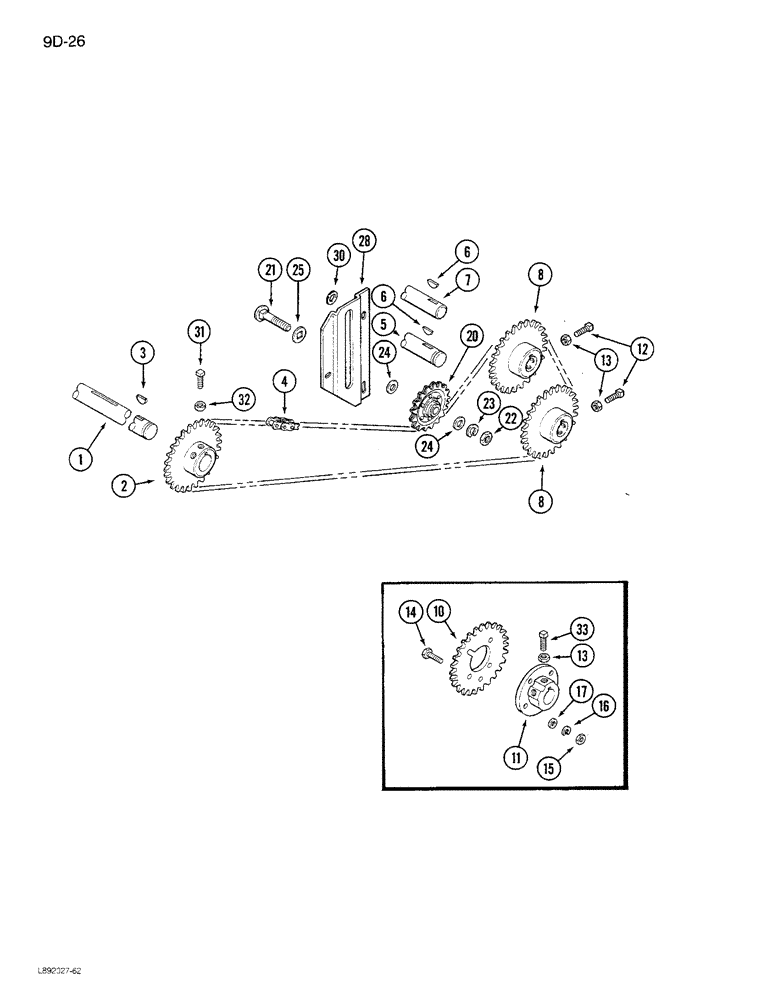

Запчасти Case IH 1680 (9D-26) - TAILINGS ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

1319247C1

SHAFT

- drive, jackshaft

1шт.

2

192139C2

SPROCKET

- drive 25T

1шт.

3

124554

O-RING

- Woodruff, 5/16 x 1 inch

1шт.

4

REF

INSTRUCTION

CHAIN ASSEMBLY - tailings drive

1шт.

Use 153 links from Number 50 chain and one connecting link 1310D.

1шт.

5

REF

INSTRUCTION

AUGER - delivery (See Figure 9D-18)

1шт.

6

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

- head, elevator

1шт.

8

1345472C1

SPROCKET

- chain drive (With 2 inch hub OD)

2шт.

8

1979808C1

SPROCKET ASSY.

SPROCKET - chain drive (With 1-3/4 inch hub OD)

2шт.

10

188188C1

SPROCKET ASSY.

SPROCKET - drive, chain, 27 teeth (If equipped)

2шт.

11

1302217C1

HUB

- sprocket (If equipped)

2шт.

12

86-13816

SET SCREW,Sq Hd, 3/8" - 24 x 1"

SCREW - square head set, 3/8-24 NF x 1 inch (Used with 1979808C1 sprocket)

4шт.

12

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - square head set, 3/8-16 NC x 1 inch (Used with 1345472C1 sprocket)

2шт.

13

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8-24 inch NF (Used with 1979808C1 sprocket)

4шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8-16 inch NC (Used with 1345472C1 sprocket)

2шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (If equipped)

8шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (If equipped)

8шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (If equipped) 5/16"

8шт.

17

27309R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (If equipped)

8шт.

20

631905R91

SPROCKET

- idler

1шт.

21

411-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT - round head square neck, 5/8 NC x 2-1/2 inch

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

25

498-81009

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

- flat, 21/32 square center x 1-1/4 x 3/32 inch

2шт.

28

1302069C2

SUPPORT

BRACKET - support, sprocket

1шт.

30

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 5/32 inch

3шт.

31

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - square head set, 3/8 NC x 1 inch

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

33

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - square head set, 3/8 NC x 1-1/4 inch

2шт.
