Запчасти Case IH 1680 (9D-24) - TAILINGS ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS

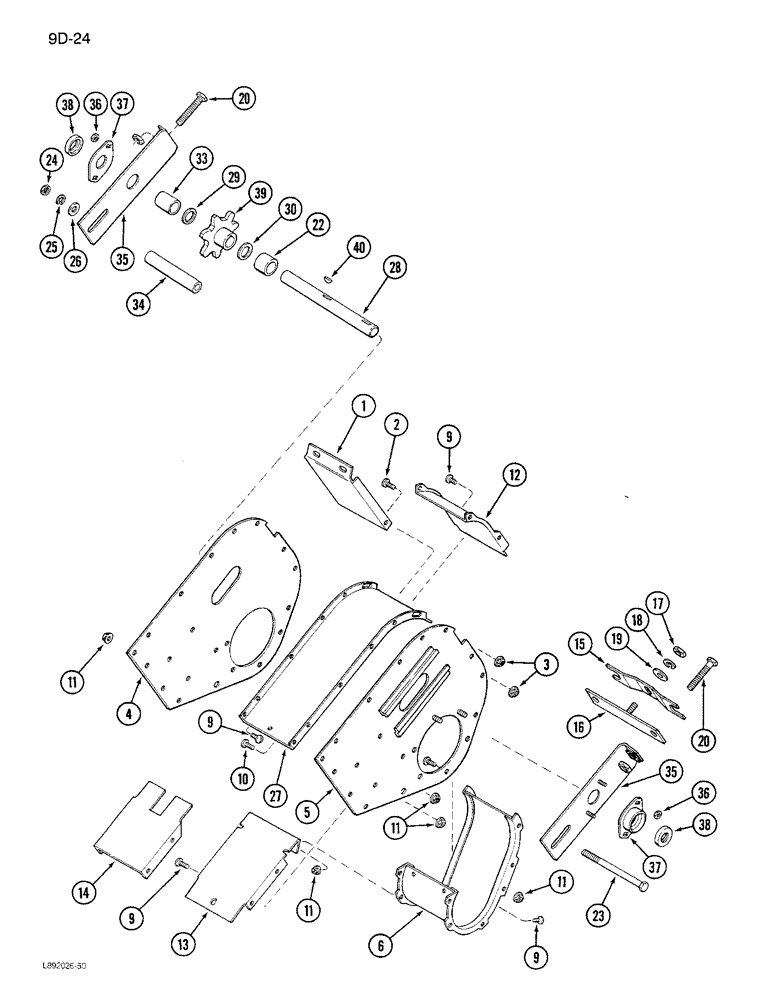

Схема запчастей Case IH 1680 - (9D-24) - TAILINGS ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS
17
9
27
36
13
11
12
1
35
38
11
10
29
38
37
15
2
23
4
34
30
22
9
14
5
11
25
6
9
36
19
9
20
35
18
26
28
39
3
16
40
37
24
11
33
20

Артикул

Название

Примечание

Количество

1

192426C1

SUPPORT

- upper

2шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex flange, 5/16 NC x 3/4 inch

2шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

4

181366C1

SIDE PLATE

SIDE - head, left

1шт.

5

181367C1

SIDE PLATE

SIDE - head, right

1шт.

6

188119C1

TROUGH

head

1шт.

There is a spacer that went in to production Dec of 96. It can be used on older machines as an added brace. The spacer is 27829R1, the bolt is P/N 424-5112 (5/16 x 7 inches), the nut is P/N 425-105 (5/16 NC), and the lock washer is P/N 492-11031.

1шт.

9

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

20шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

11шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

35шт.

12

191776C1

COVER

COVER - head

1шт.

13

191782C1

SUPPORT

BOTTOM - head

1шт.

14

181327C1

BOTTOM

- head

1шт.

15

181376C1

CLAMP

- tightener

1шт.

16

181375C1

SUPPORT

BAR - tightener bolt

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

20

667486R1

BOLT

BOLT - tightener bar

2шт.

22

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

1шт.

23

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

- hex, 5/16 NC x 7 inch

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

27

191783C1

TOP COVER

COVER - top, head

1шт.

28

191785C1

SHAFT

- sprocket, head

1шт.

29

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

30

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

33

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Sprocket, LH 1" Pipe x 2 3/4"

1шт.

34

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

Sprocket, RH 1" Pipe x 1 9/16"

1шт.

35

181364C1

SUPPORT

- shaft

2шт.

36

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

37

214490C91

BALL BEARING,25.4mm ID

BEARING - head, shaft

2шт.

Plant option was to use 2 of P/N 50591 Flange, 1 of P/N 214366C91 Brg and 1 of P/N 1979640C1 plate per side.

1шт.

38

455102R21

COLLAR

ASSEMBLY - bearing lock

2шт.

39

168683C1

SPROCKET

- chain, conveyor

1шт.

40

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

Выбрано товаров: 37
