Запчасти Case IH 1680 (9D-22) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS

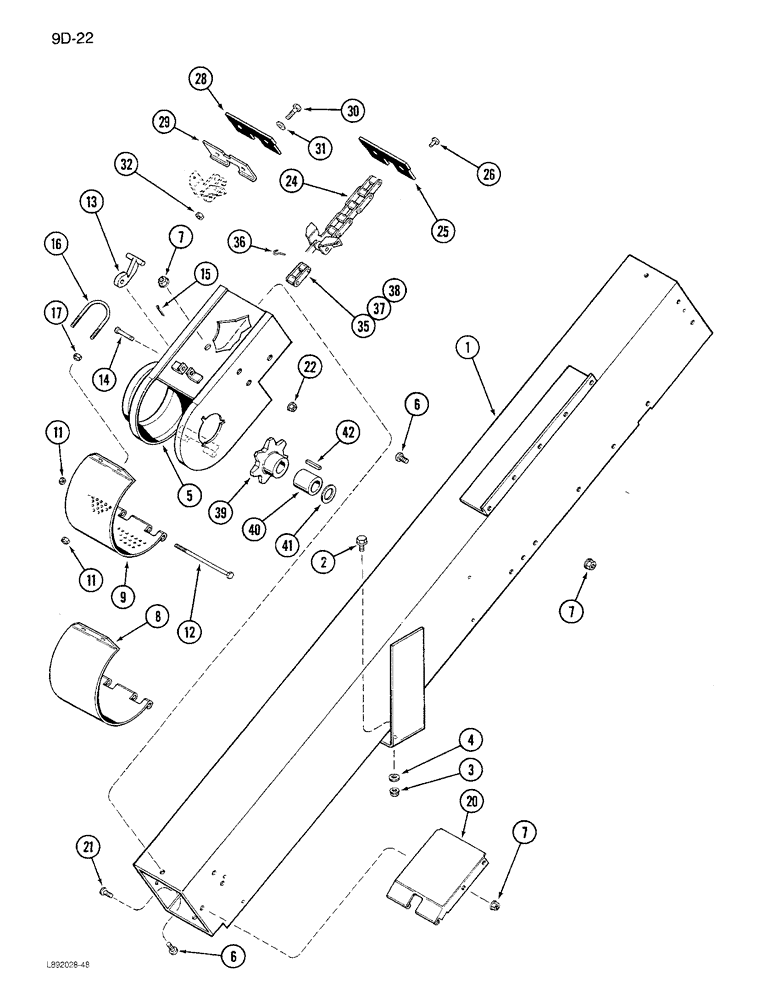

Схема запчастей Case IH 1680 - (9D-22) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS
12
7
8
37
17
7
1
32
35
7
15
13
30
39
14
29
42
28
2
24
11
16
11
6
5
6
36
26
20
9
31
3
41
21
4
38
25
22
40

Артикул

Название

Примечание

Количество

1

192430C2

ELEVATOR TUBE

HOUSING - elevator

1шт.

2

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

5

183160C1

BOOT

- elevator

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

8шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

8

156910C1

DOOR

- boot (Not perforated)

1шт.

9

174193C1

DOOR

- boot (Perforated)

1шт.

11

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

12

413-5104

BOLT,Hex, 5/16" - 18 x 6-1/2", Gr 5

- hex, 5/16 NC x 6-1/2 inch

1шт.

13

155909C1

LATCH

- door

1шт.

14

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - head, 1/4 x 1-1/4 inch

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT - door

1шт.

17

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC (Replaces 22468R1)

4шт.

20

191790C2

END

HINGE - bottom

1шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

24

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSEMBLY - elevator

1шт.

1303123C91

ELEVATOR CHAIN

FLIGHT ASSEMBLY - rubber, Includes: Ref. 25 and 26

27шт.

25

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor

1шт.

26

185315C1

RIVET

- flight

2шт.

1303124C92

RUBBER FLIGHT

FLIGHT ASSEMBLY - steel, Includes: Ref. 28 - 32

1шт.

28

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor, rubber

1шт.

29

1303125C1

STEEL FLIGHT

FLIGHT - conveyor, steel

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

32

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

35

631254R91

DRAG LINK

LINK - connecting

1шт.

36

1329837C2

PIN,2.63mm OD

- roller S type, chain

1шт.

37

23880R1

OFFSET LINK

LINK - offset

1шт.

38

631253R91

LINK

- roller, single pitch

1шт.

39

1302200C1

SPROCKET ASSY.

SPROCKET - conveyor chain

1шт.

40

28082R1

SPACER,1 3/8" Tube x 1 3/8"

- sprocket, 1-3/8 x 1-3/8 inch tube

1шт.

41

20885R1

WASHER

- flat, 1-9/16 x 2 x 3/64 inch

1шт.

42

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

1шт.

Выбрано товаров: 37
