Запчасти Case IH 1680 (9D-18) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

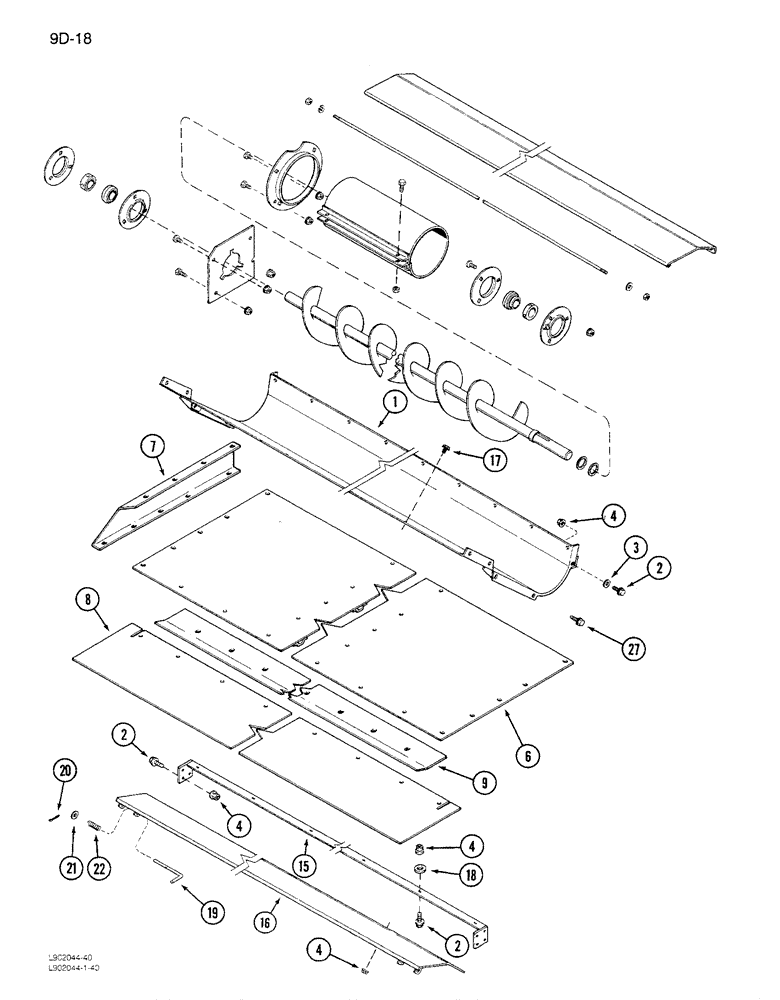

Схема запчастей Case IH 1680 - (9D-18) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS
21
27
15
4
6
8
4
4
16
22
7
1
2
4
9
18
2
3
17
19
20
2

Артикул

Название

Примечание

Количество

1

192026C3

TROUGH

- auger (Shown)

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

1

1346938C1

TROUGH

- auger

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

2

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- 5/16 NC x 3/4 inch

12шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

6

1970423C1

SHEET

PANEL - tailings return

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

7

1346963C1

SUPPORT

- tailings support pan

2шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

8

1979194C1

SEAL

- tailings pan

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

9

1979220C1

DEFLECTOR

- cleaning air

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

15

1970529C1

SUPPORT

- tailings door

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

16

191978C1

GATE ASSY

TAILGATE - trough

1шт.

Ref #16 - This is the door to look through to see the Sieve.

1шт.

17

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

18

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

6шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

19

186736C1

ROD

- tailgate

2шт.

20

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

21

495-51041

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

22

540815R1

SPRING

- lock pin

2шт.

27

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

8шт.

Выбрано товаров: 30
