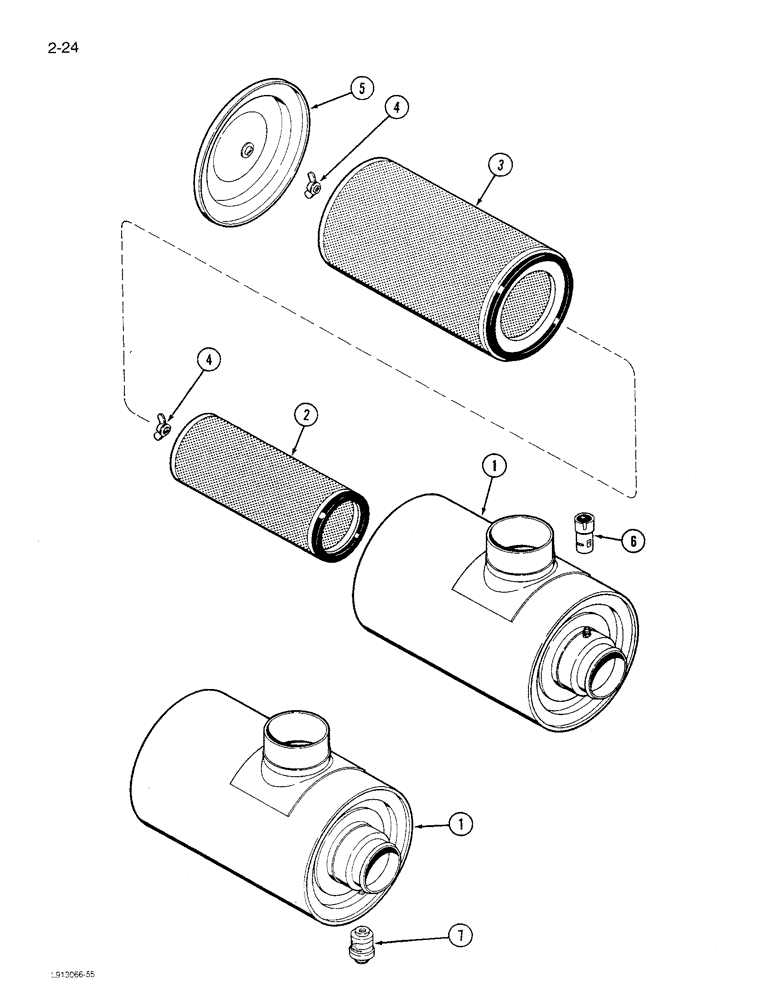

Запчасти Case IH 1680 (2-024) - AIR CLEANER ASSEMBLY, 6TA-830 ENGINE (01) - ENGINE

1541611C1

AIR CLEANER

CLEANER ASSEMBLY - air, engine (Used with 1541610C1 indicator), Includes: Ref. 1 - 5

1шт.

A184799

AIR CLEANER

CLEANER ASSEMBLY - air, engine (Used with 582214C1 indicator), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order Assembly)

1шт.

2

932390C1

AIR FILTER

ELEMENT - safety, secondary

1шт.

3

932391C2

AIR FILTER

ELEMENT - primary

1шт.

4

L35499

NUT

- wing (With washer)

2шт.

Ref. 4 WING NUT IS L37977 AND SEAL A44187

1шт.

5

A189038

COVER

ASSEMBLY - air cleaner

1шт.

Ref 5: WINGNUT FOR END OF COVER IS D37977 (AFTER CROSSING DONALDSON

1шт.

6

582214C1

INDICATOR

- air restriction (Used with A184799 air cleaner)

1шт.

7

1541610C1

INDICATOR

- air restriction (Used with 1541611C1 air cleaner)

1шт.
