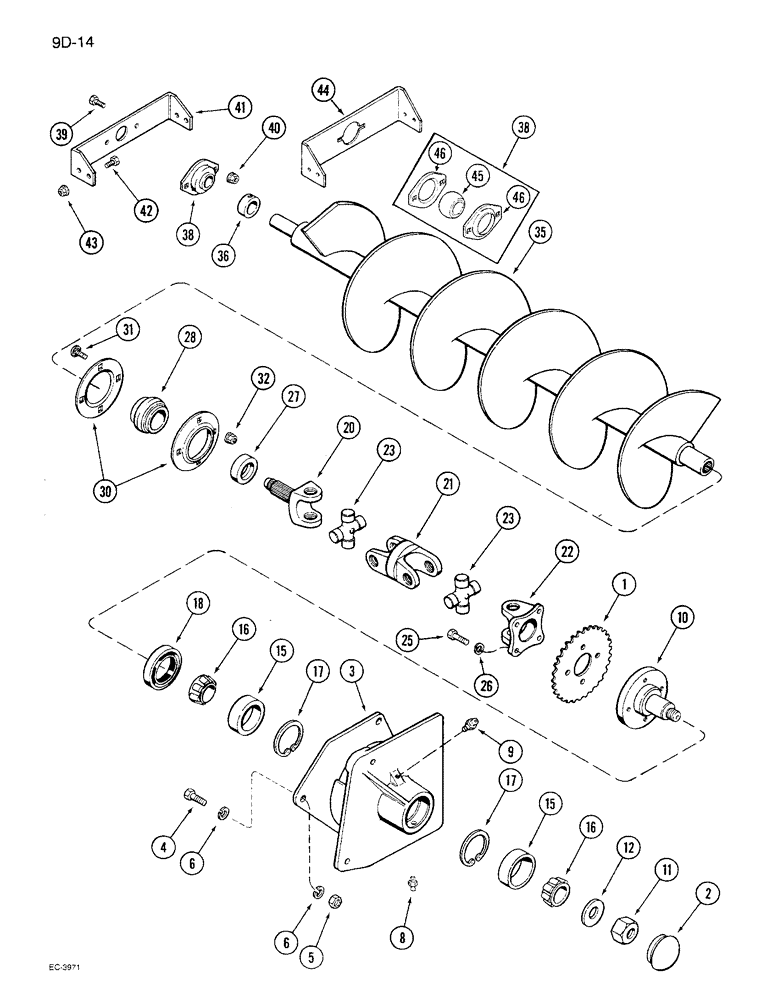

Запчасти Case IH 1680 (9D-14) - INCLINED DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS

1

1321039C1

SPROCKET

- driven, auger

1шт.

2

453771R1

PLUG

CAP - housing, drive

1шт.

3

1321020C1

HOUSING

- drive

1шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

19588R1

FITTING

- straight, lube 1/4 inch

1шт.

9

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING ASSEMBLY - straight, lube 1/8 inch PT

1шт.

10

1321021C1

SHAFT

- drive, auger

1шт.

11

185413C1

LOCK NUT

- hex lock, 7/8 inch NC

1шт.

is a fine threaded nut per print.

1шт.

12

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

- flat, 29/32 x 2-3/64 x 1 1/64 inch

1шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2шт.

16

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing

2шт.

17

617933R1

SNAP RING,2.562", Int, #256

RING - internal snap, 2-27/32 inch

2шт.

18

380200R92

OIL SEAL

- oil, housing

1шт.

1321055C91

UNIVERSAL JOINT

JOINT ASSEMBLY - universal, auger drive, Includes: Ref. 20 - 23

1шт.

20

1321056C1

YOKE

- shaft

1шт.

21

1321057C1

JOINT

YOKE - center

1шт.

22

1321058C1

YOKE

YOKE - flange

1шт.

23

1321059C91

U-JOINT SPIDER

BEARING KIT - joint drive

2шт.

25

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex, 7/16 NC x 1-1/2 inch

4шт.

26

366863C1

LOCK WASHER

WASHER - spring lock, 7/16 inch

4шт.

27

517645R11

COLLAR

ASSEMBLY - locking

1шт.

28

611583R91

BALL BEARING

BEARING ASSEMBLY - auger

1шт.

30

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - bearing

2шт.

31

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

35

1968853C2

AUGER

- delivery (Replaces 1968853C1)

1шт.

36

455102R21

COLLAR

- locking, bearing

1шт.

38

214490C91

BALL BEARING,25.4mm ID

BEARING - auger

1шт.

39

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

40

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

41

1321025C1

SUPPORT

BAR - support (If equipped)

1шт.

42

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

43

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

44

1994833C1

BAR

- support, (If equipped)

1шт.

45

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - auger

1шт.

46

50591

FLANGE,52mm

- bearing

2шт.
