Запчасти Case IH 1680 (9D-12) - GRAIN ELEVATOR DRIVE, P.I.N. JJC0047413 AND AFTER (16) - GRAIN ELEVATORS & AUGERS

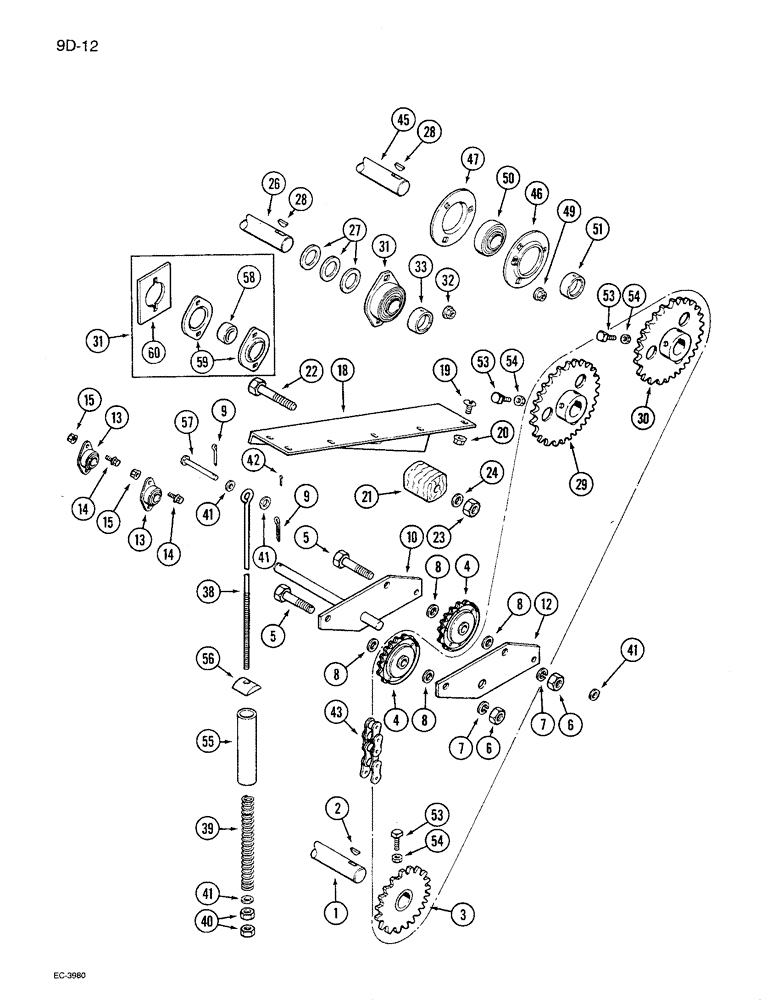

Схема запчастей Case IH 1680 - (9D-12) - GRAIN ELEVATOR DRIVE, P.I.N. JJC0047413 AND AFTER (16) - GRAIN ELEVATORS & AUGERS
19
4
2
20
42
15
7
40
60
46
58
53
50
1
4
29
47
53
6
6
51
41
5
27
8
3
41
8
18
38
22
12
8
13
45
9
31
10
59
21
9
55
53
39
14
6
54
54
56
33
32
54
43
26
49
13
15
7
41
31
57
14
23
28
41
5
24
30
28
8

Артикул

Название

Примечание

Количество

1

1319247C1

SHAFT

- drive, elevator

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

192139C2

SPROCKET

ASSEMBLY - drive 25T

2шт.

4

631905R91

SPROCKET

- idler drive

2шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

10

1345065C1

SUPPORT

ASSEMBLY - pivot tightener

1шт.

12

1345066C1

PLATE

BAR - tightener

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSEMBLY - pivot

2шт.

14

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

18

1317476C2

HOUSING

STIFFENER - block

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

21

582018R1

BLOCK

- tightener

1шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

23

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

24

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

1шт.

26

1317470C1

SHAFT

- elevator head

1шт.

27

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

28

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

- Woodruff, 5/16 x 1 inch

1шт.

29

1317412C1

SPROCKET

ASSEMBLY - headshaft

1шт.

30

1321039C1

SPROCKET

- auger

1шт.

does not have hub welded on like shown in the picture.

1шт.

31

1317250C91

FLANGED BEARING,31.75mm ID

BEARING ASSEMBLY - headshaft

1шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

33

557995R11

COLLAR

ASSEMBLY - bearing

1шт.

38

1345005C1

BOLT,3/8" - 16 x 815mm

ROD - tightener, chain

1шт.

39

523677R1

SPRING

- tightener

1шт.

40

425-106

NUT,3/8"-16, Cl 5

2шт.

41

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

42

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

43

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Use 253 links from Number 50 chain, 3 connector links 1310D and 2 offset links 1315D.

1шт.

45

REF

INSTRUCTION

AUGER - delivery (See Figure 9D-2)

1шт.

46

939460R91

FLANGE

ASSEMBLY - bearing

1шт.

47

939461R1

FLANGE

- bearing

1шт.

49

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

50

156011C92

BALL BEARING

BEARING ASSEMBLY - auger

1шт.

51

557995R11

COLLAR

ASSEMBLY - bearing

1шт.

53

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - square head set, 3/8 NC x 1-1/4 inch

2шт.

54

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

2шт.

55

181119C1

SPACER

- drive rod

1шт.

56

194652C1

PIVOT

- elevator drive

1шт.

57

21006R1

CLEVIS PIN,3/8" x 2.406"

PIN - clevis, 3/8 x 2.406

1шт.

58

156011C92

BALL BEARING

BEARING ASSEMBLY - headshaft

1шт.

59

581469R1

FLANGE,Bearing

- bearing retainer

2шт.

60

1979642C1

SPACER

- bearing flange

1шт.

Выбрано товаров: 51
