Запчасти Case IH 1680 (9D-10) - GRAIN ELEVATOR DRIVE, PRIOR TO P.I.N. JJC0047413 (16) - GRAIN ELEVATORS & AUGERS

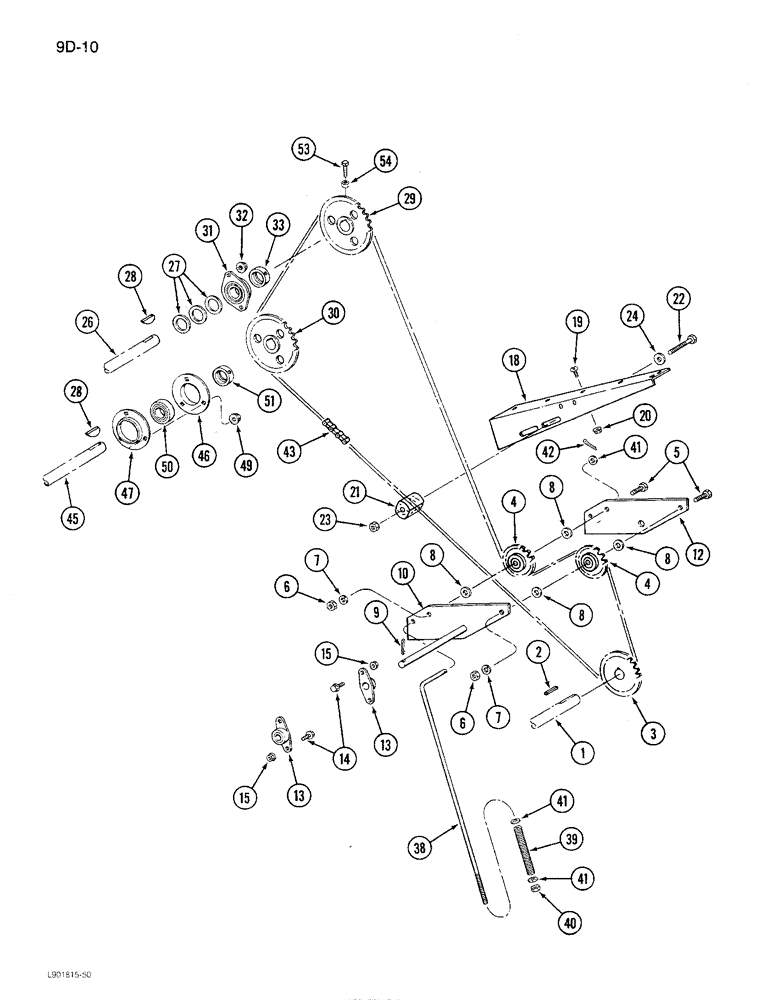

Схема запчастей Case IH 1680 - (9D-10) - GRAIN ELEVATOR DRIVE, PRIOR TO P.I.N. JJC0047413 (16) - GRAIN ELEVATORS & AUGERS
24
6
30
23
53
26
5
32
47
38
13
22
8
54
15
41
51
45
15
6
2
39
1
20
41
8
29
13
3
18
21
43
27
10
8
12
41
7
50
46
28
31
4
33
9
8
14
19
4
7
49
40
42
28

Артикул

Название

Примечание

Количество

1

1319247C1

SHAFT

- drive, elevator

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

192139C2

SPROCKET

ASSEMBLY - drive 25T

2шт.

4

631905R91

SPROCKET

- idler drive

2шт.

5

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

6

129-107

NUT,5/8"-11, G5

2шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

21471R1

WASHER

- flat, 21/32 x 1 x 7/64 inch

4шт.

9

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

10

1321226C1

SUPPORT

- pivot

1шт.

12

1317670C1

PLATE

BAR - tightener

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSEMBLY - pivot

2шт.

14

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

18

1317476C1

SUPPORT

STIFFENER - block

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

21

582018R1

BLOCK

- tightener

1шт.

22

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

23

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

24

21471R1

WASHER

- flat, 21/32 x 1 x 7/64 inch

1шт.

26

1317470C1

SHAFT

- elevator head

1шт.

27

22050R1

WASHER

- flat, 1-9/32 x 1-3/4 x 3/64 inch

6шт.

28

124554

O-RING

- Woodruff, 5/16 x 1 inch

1шт.

29

1317412C1

SPROCKET

ASSEMBLY - headshaft

1шт.

30

1321039C1

SPROCKET

- auger

1шт.

THIS SPROCKET DOES NOT HAVE A HUB WELDED TO IT. THIS IS A STRAIGHT BOLT ON SPROCKET 29 TEETH. IF LOOKING FOR SPROCKET THAT HAS A WELDED ON HUB ... PART NUMBER IS 1317412C1 WHICH IS 32 TEETH. QUALITY COMMENTS

1шт.

See Illustration on 9D-14 Ref #1 to see how this sprocket looks. This a 29 Tooth Sprocket

1шт.

31

1317250C91

FLANGED BEARING,31.75mm ID

BEARING ASSEMBLY - headshaft

1шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

33

557995R11

COLLAR

ASSEMBLY - bearing

1шт.

38

1317666C2

ROD

- tightener, chain

1шт.

39

523677R1

SPRING

- tightener

1шт.

40

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

41

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

3шт.

42

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

1шт.

43

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Use 253 links from Number 50 chain, 3 connector links 1310D and 2 offset links 1315D.

1шт.

45

REF

INSTRUCTION

AUGER - delivery (See Figure 9D-2)

1шт.

Auger can be better viewed on Figure 9D-14

1шт.

46

939460R91

FLANGE

ASSEMBLY - bearing

1шт.

47

939461R1

FLANGE

- bearing

1шт.

49

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

50

156011C92

BALL BEARING

BEARING ASSEMBLY - auger

1шт.

51

557995R11

COLLAR

ASSEMBLY - bearing

1шт.

53

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - square head set, 3/8 NC x 1-1/4 inch

2шт.

54

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

2шт.

Выбрано товаров: 47
