Запчасти Case IH 1680 (9D-06) - INCLINED GRAIN ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS

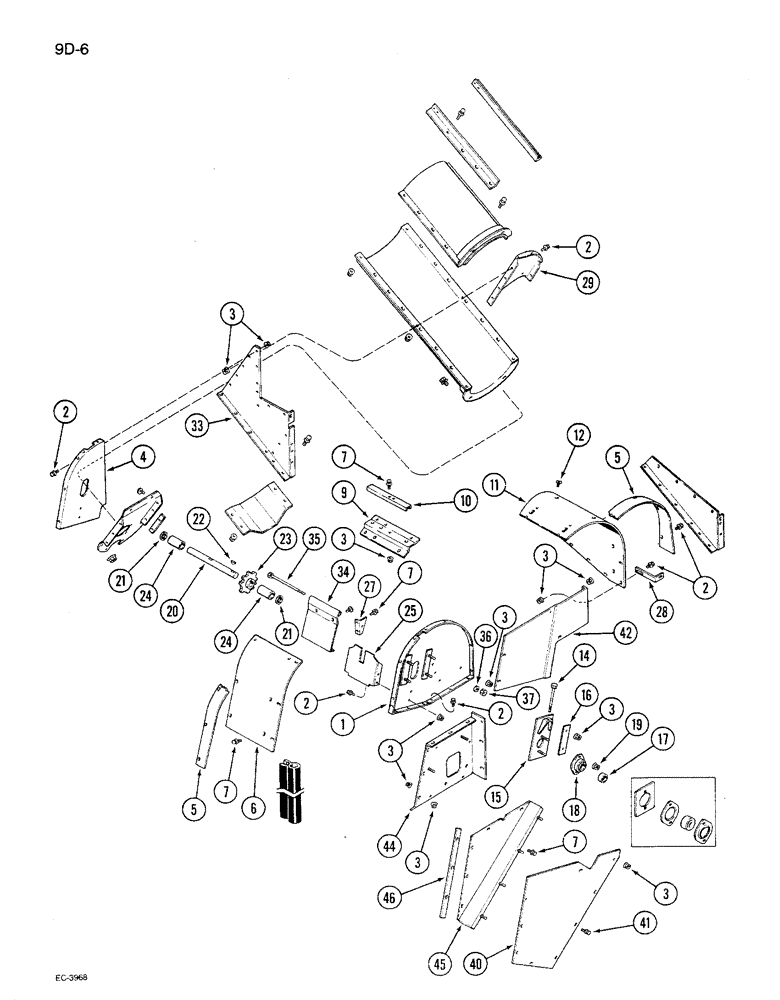

Схема запчастей Case IH 1680 - (9D-06) - INCLINED GRAIN ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS
3
11
44
19
4
36
3
14
3
12
2
29
34
41
3
2
21
24
45
7
24
35
5
23
2
25
18
37
2
15
16
3
17
9
20
7
10
1
40
3
42
3
27
21
6
7
5
3
7
33
22
46
2
28

Артикул

Название

Примечание

Количество

1

1319908C1

SIDE PLATE

SIDE - head, elevator, right

1шт.

2

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange

53шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

76шт.

4

1319901C1

SIDE PLATE

SIDE - head, elevator, left

1шт.

5

1321230C1

PLATE

- sealing

1шт.

6

1319940C1

COVER

- rear

1шт.

7

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

28шт.

9

1319959C1

SUPPORT

ANCHOR - tightener, conveyor

1шт.

10

1317474C1

CHANNEL

- lock, tightener

1шт.

11

1319941C1

COVER

- front, head

1шт.

12

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

14

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

- hex, 1/2 NC x 5-1/2 inch

2шт.

15

1317251C2

SUPPORT

- headshaft

2шт.

16

1310040C1

BAR

- guide, headshaft

4шт.

17

557995R11

COLLAR

- locking, bearing

2шт.

18

1317250C91

FLANGED BEARING,31.75mm ID

BEARING ASSEMBLY - headshaft

2шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

20

1317470C1

SHAFT

HEADSHAFT - elevator

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

- Woodruff, 5/16 x 1 inch

1шт.

23

1317192C1

SPROCKET

- headshaft

1шт.

24

1317471C1

SPACER

- sprocket

2шт.

25

1318476C1

PLATE

- extension, bottom

1шт.

27

1321553C1

BRACKET

ANGLE - support

1шт.

28

1321833C1

STRAP

- brace, head

1шт.

29

1321069C1

LARGE PLATE

PLATE - side, front left

1шт.

33

1321550C2

SUPPORT

PANEL - support, rear

1шт.

34

1319954C1

BRACKET

SECTION - cut off

1шт.

35

413-5144

BOLT,Hex, 5/16" - 18 x 9", Gr 5

- hex, 5/16 x 9 inch

1шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

40

1321095C1

PANEL

SHEET - side, right

1шт.

41

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

42

1321097C2

COVER

- auger

1шт.

44

1321060C1

SUPPORT

- mounting, auger

1шт.

45

1321497C1

PANEL

SHEET - side, left

1шт.

46

1321155C1

SPACER

BAR - spacer

1шт.

Выбрано товаров: 37
