Запчасти Case IH 1680 (9D-04) - GRAIN ELEVATOR HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS

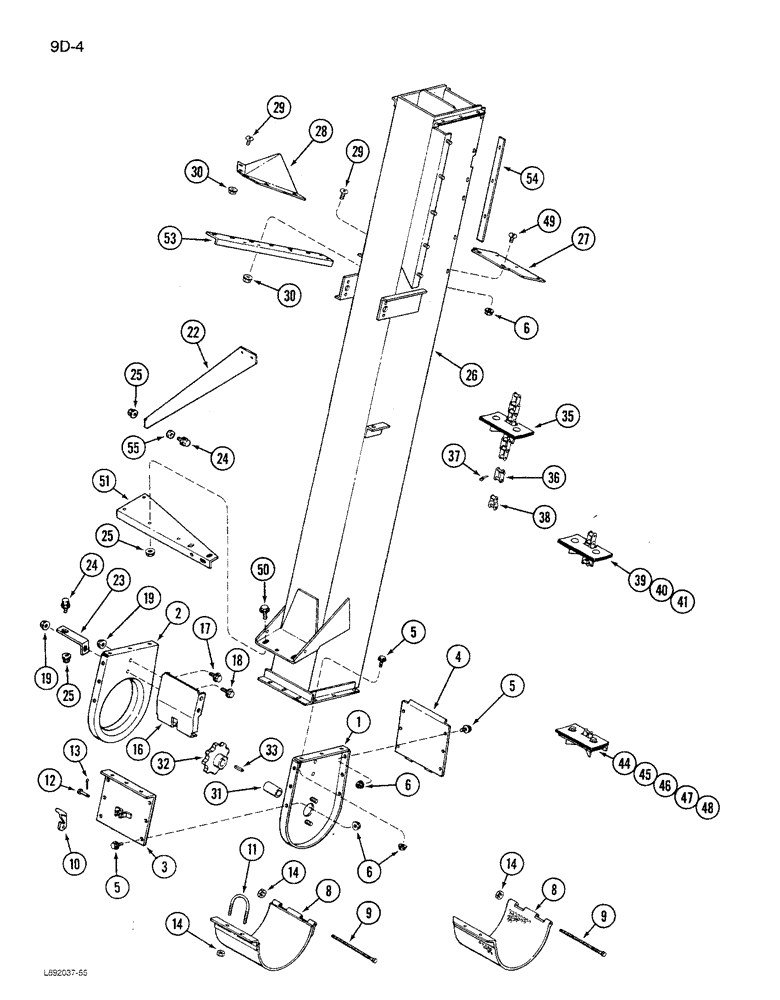

Схема запчастей Case IH 1680 - (9D-04) - GRAIN ELEVATOR HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS
40
9
23
2
22
16
24
45
10
13
30
30
19
11
28
41
31
3
14
8
12
14
48
24
25
50
4
29
55
5
39
47
49
25
18
5
25
17
6
27
53
6
54
26
38
14
8
5
44
37
1
9
29
36
46
32
51
35
33
19
6

Артикул

Название

Примечание

Количество

1

1318585C2

SIDE PLATE

SIDE - boot, outer

1шт.

2

1318584C2

SUPPORT

SIDE - boot, inner

1шт.

3

1317437C1

COVER

- rear, boot

1шт.

4

1317439C1

COVER

- front, boot

1шт.

5

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

8

1317430C1

DOOR

- boot (Not perforated)

1шт.

8

1317842C1

DOOR

- boot (Perforated)

1шт.

9

22394R1

BOLT,Hex, 5/16"-18 x 9 1/2", G2

- hex, 5/16 NC x 9-1/2 inch

1шт.

10

155909C1

LATCH

- door

1шт.

11

316039R1

BOLT,5/16" - 18 x 5", Carbon Steel

U-BOLT - latch, 5/16 inch NC

1шт.

12

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - head, 1/4 x 1-1/4 inch

1шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

14

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

16

1318590C1

GUARD

DEFLECTOR - grain, bottom

1шт.

17

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

7шт.

18

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex flange lock, 3/8 NC x 1 inch

1шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

10шт.

22

1317362C3

SUPPORT ASSY.

BRACKET - support, lower

1шт.

23

186729C2

SUPPORT

- elevator

1шт.

24

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

5шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

5шт.

26

1317456C2

HOUSING

- elevator

1шт.

27

1317694C1

PLATE

- seal

1шт.

28

1317699C1

SUPPORT

- rear seal

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

19шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

19шт.

31

1317471C1

SPACER

- sprocket, 33 x 38 x 77 mm

1шт.

32

1317192C1

SPROCKET

- drive

1шт.

33

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

1шт.

35

1317482C92

ELEVATOR CHAIN

CONVEYOR ASSEMBLY - elevator, Includes: Ref. 36 - 41

1шт.

36

631254R91

DRAG LINK

LINK - connecting, Includes: Ref. 37

1шт.

37

1329837C2

PIN,2.63mm OD

- roller S type, chain

2шт.

38

23880R1

OFFSET LINK

LINK - offset

1шт.

39

1317614C92

RUBBER FLIGHT

FLIGHT ASSEMBLY - rubber, Includes: Ref. 40 and 41

38шт.

40

1318493C1

RUBBER FLIGHT

FLIGHT - conveyor

1шт.

41

185053C1

RIVET

- 23/64 x 3/4 inch

2шт.

44

1321444C92

STEEL FLIGHT

FLIGHT ASSEMBLY - steel, Includes: Ref. 45 - 48

1шт.

45

NSS

NOT SOLD SEPARAT

FLIGHT - conveyor

1шт.

46

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

48

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

2шт.

49

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/8 inch

2шт.

50

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

2шт.

51

192223C2

BRACKET

- elevator side

1шт.

53

1317475C1

BRACKET

ANGLE - left tank bottom stiffener

1шт.

54

1321155C1

SPACER

BAR - spacer

1шт.

55

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 3/64 inch

7шт.
