Запчасти Case IH 1680 (9D-02) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

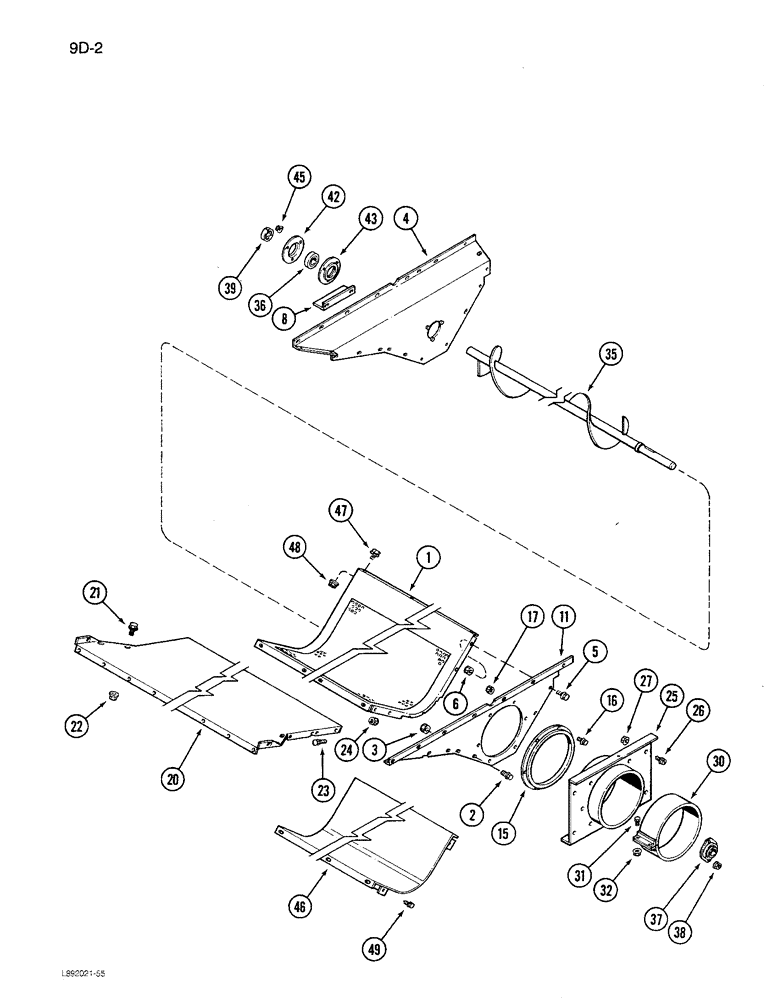

Схема запчастей Case IH 1680 - (9D-02) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS
36
17
26
16
31
37
5
39
46
47
43
38
42
30
20
23
11
22
3
8
1
6
4
25
21
48
27
24
49
15
35
2
45
32

Артикул

Название

Примечание

Количество

1

1317420C1

TROUGH

- bottom, perforated

1шт.

1

1317392C1

TROUGH

- bottom, not perforated

1шт.

If curved portion of auger trough is too short, dealer may need to order auger trough out of 2100 series book if using a cross flow fan - order P/N 87395607

1шт.

2

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex, 5/16 NC x 1/2 inch

19шт.

3

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch

19шт.

4

1317393C1

SUPPORT

- trough, left

1шт.

5

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange, 5/16 NC x 1/2 inch

7шт.

6

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch NC

7шт.

8

1317407C1

BRACKET

ANGLE - support, trough, left

1шт.

11

1317395C1

SUPPORT

- trough, right

1шт.

15

1317401C1

RETAINER

- support, trough, right

1шт.

16

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

6шт.

17

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch NC

6шт.

20

191984C2

PLATE

SUPPORT - extension, trough

1шт.

21

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

SCREW - slotted truss head, 5/16 NC x 1/2 inch

12шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

19шт.

24

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch NC

19шт.

25

1317398C1

SUPPORT

- tube, trough

1шт.

26

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW - hex flange lock, 1/2 NC x 1 inch

9шт.

26

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

- hex flange lock, 1/2 NC x 1-1/4 inch

1шт.

27

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

10шт.

30

1317442C1

CLAMP

- trough, auger

1шт.

31

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

32

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

35

1317409C1

AUGER

- grain

1шт.

36

156011C92

BALL BEARING

BEARING - auger, left

1шт.

37

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - auger, right

1шт.

38

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

39

557995R11

COLLAR

- bearing (With set screw)

2шт.

42

939460R91

FLANGE

- bearing (With 45 degree lube fitting)

1шт.

43

939461R1

FLANGE

- bearing (Grooved)

1шт.

45

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

46

1317422C1

COVER

- grain trough (Use with perforated trough bottom)

1шт.

47

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

14шт.

48

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

14шт.

49

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

SCREW - hex washer head tap, 5/16 NC x 1 inch

4шт.

Выбрано товаров: 37
