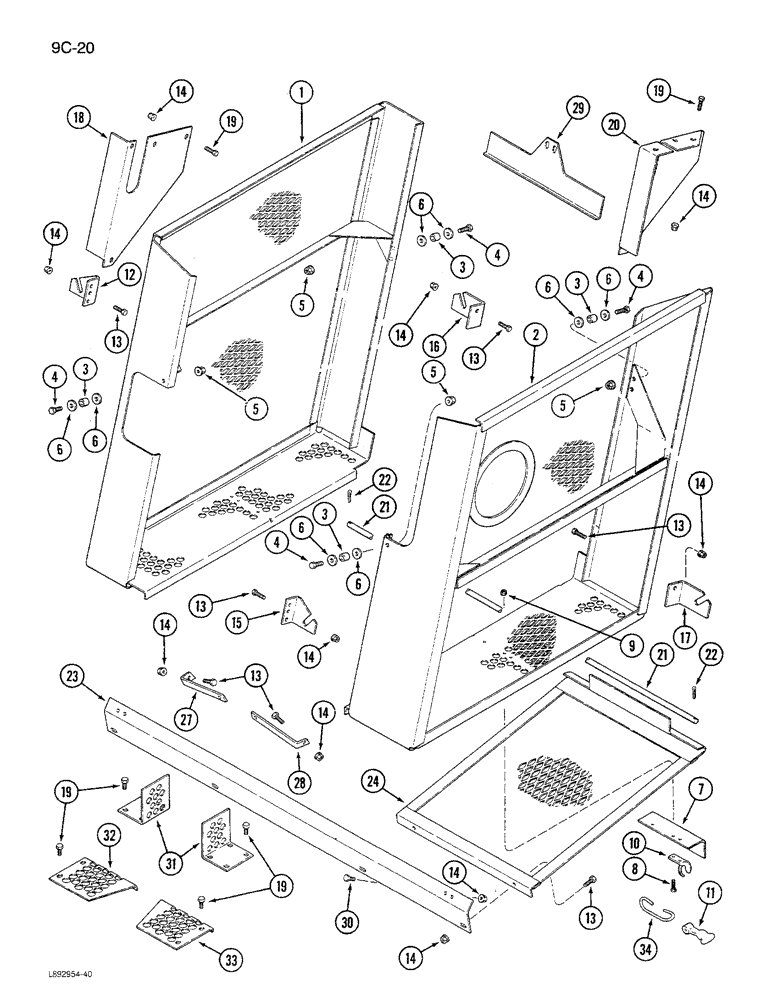

Запчасти Case IH 1680 (9C-20) - FAN SHIELDS (15) - BEATER & CLEANING FANS

1

182824C3

GUARD ASSY.

SHIELD - fan drive, left

1шт.

2

182846C3

SUPPORT

SHIELD - fan drive, right

1шт.

3

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch

4шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

6

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

8шт.

7

181496C1

SHIELD

- latch

2шт.

8

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- pan head slotted machine, No. 10 NC x 3/4 inch

4шт.

9

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24 NC

6шт.

10

764071C1

BRACKET

HOOK - fan shield latch bracket

2шт.

11

494307C1

LATCH

HOOK - shield hold down latch

2шт.

12

182858C2

SUPPORT

- fan shield rear, left

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

18шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

30шт.

15

182859C2

SUPPORT

- fan shield rear, right

1шт.

16

182860C1

ANGLE

- front left shield

1шт.

17

182861C1

ANGLE

- front right shield

1шт.

18

182864C1

SHIELD

- left front

1шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

20

182867C1

SHIELD

- right front

1шт.

21

182812C1

ROD

- fan shield

1шт.

22

432-1216

COTTER PIN,3/16" x 1"

2шт.

23

182823C1

SUPPORT

- bottom screen rear retainer

1шт.

24

182817C2

GUARD ASSY.

SHIELD - lower fan

2шт.

27

182874C1

SUPPORT

- fan bearing, left

1шт.

28

182875C1

SUPPORT

- fan bearing, right

1шт.

29

182873C1

SUPPORT

- axle to auger bed seal

2шт.

30

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

31

182809C2

GUARD

SHIELD - intake lower rear

2шт.

32

182805C1

SHIELD

- intake upper rear, left

1шт.

33

182806C1

SHIELD

- intake upper rear, right

1шт.

34

1302723C1

HOOK

- inlet shield

2шт.
