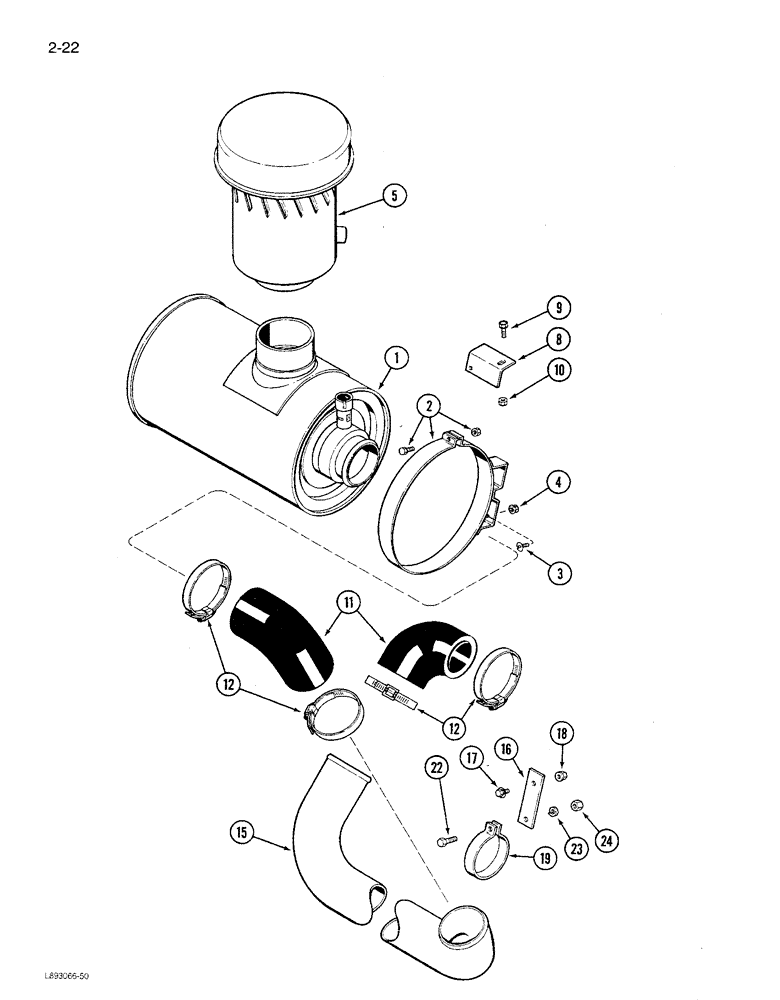

Запчасти Case IH 1680 (2-022) - AIR INDUCTION SYSTEM, 6TA-830 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

CLEANER ASSEMBLY - air, engine (See Figure 2-24)

1шт.

2

259922C91

BAND

ASSEMBLY - mounting, air cleaner

2шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head lock, 3/8 NC x 1 inch

4шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

5

1275728C1

PRECLEANER

ASSEMBLY - air

1шт.

8

1979801C1

SUPPORT

- rear, air cleaner

1шт.

9

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

11

218899R1

ELBOW

- outlet, air cleaner

2шт.

12

146570C1

CLAMP

ASSEMBLY - elbow

4шт.

15

1970445C1

AIR INTAKE TUBE

TUBE - outlet, air

1шт.

16

187509C1

BAR

BRACKET - support, tube

1шт.

17

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

18

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

19

1970473C1

CLAMP

- retaining, air tube

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.
