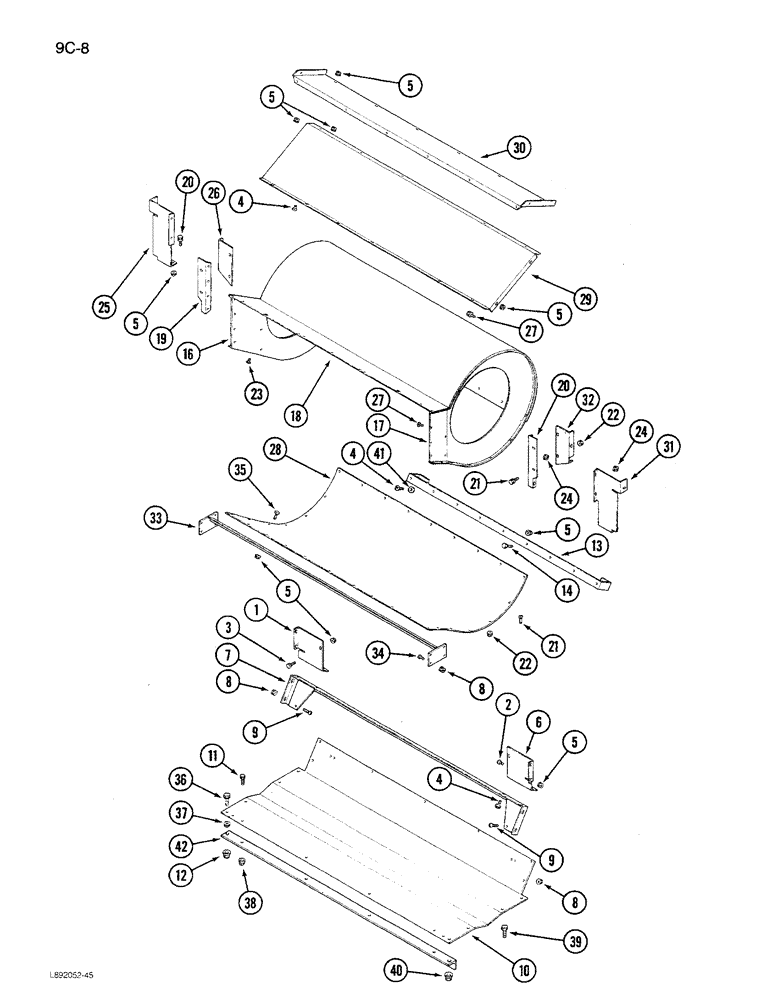

Запчасти Case IH 1680 (9C-08) - CLEANING FAN HOUSING (15) - BEATER & CLEANING FANS

1

188112C2

SUPPORT

- intake, fan, front left

1шт.

2

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange, 5/16 NC x 1/2 inch

18шт.

3

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

25шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch

54шт.

6

188113C2

SUPPORT

- intake, fan, front right

1шт.

7

194715C2

SUPPORT

- fan, bottom shield

1шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

22шт.

9

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

13шт.

10

194718C1

SUPPORT

- bottom, fan

1шт.

11

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange lock, 1/2 NC x 1 inch

8шт.

12

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch

8шт.

13

191930C1

STRIP

SUPPORT - front support, fan

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

1324002C91

KIT

HOUSING KIT - cleaning fan, Includes: Ref. 16 - 24

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - fan, left section

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - fan, right section

1шт.

18

NSS

NOT SOLD SEPARAT

PANEL - top

1шт.

19

186713C2

KIT

EXTENSION - filler, left

1шт.

20

186714C2

EXTENSION

- filler, right

1шт.

21

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

32шт.

22

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch

34шт.

23

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 2 inch

13шт.

24

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch

33шт.

25

188114C2

SUPPORT

- fan intake rear, left

1шт.

26

186715C1

SUPPORT

- fan side sheet, left

1шт.

27

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

28

191927C1

SUPPORT

- fan housing bottom

1шт.

29

192067C1

SUPPORT

- pan to auger bed

1шт.

30

192065C1

SUPPORT

- chaffer front seal

1шт.

31

188115C2

SUPPORT

- fan intake rear, right

1шт.

32

186716C1

SUPPORT

- fan side sheet, right

1шт.

33

191928C1

SUPPORT

- fan, rear

1шт.

34

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

12шт.

35

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

36

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

2шт.

37

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

38

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex lock special, 1/2 inch NC

2шт.

39

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

40

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

41

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

2шт.

42

186025C1

BRACKET

ANGLE - main sill center cross (Rice)

1шт.
