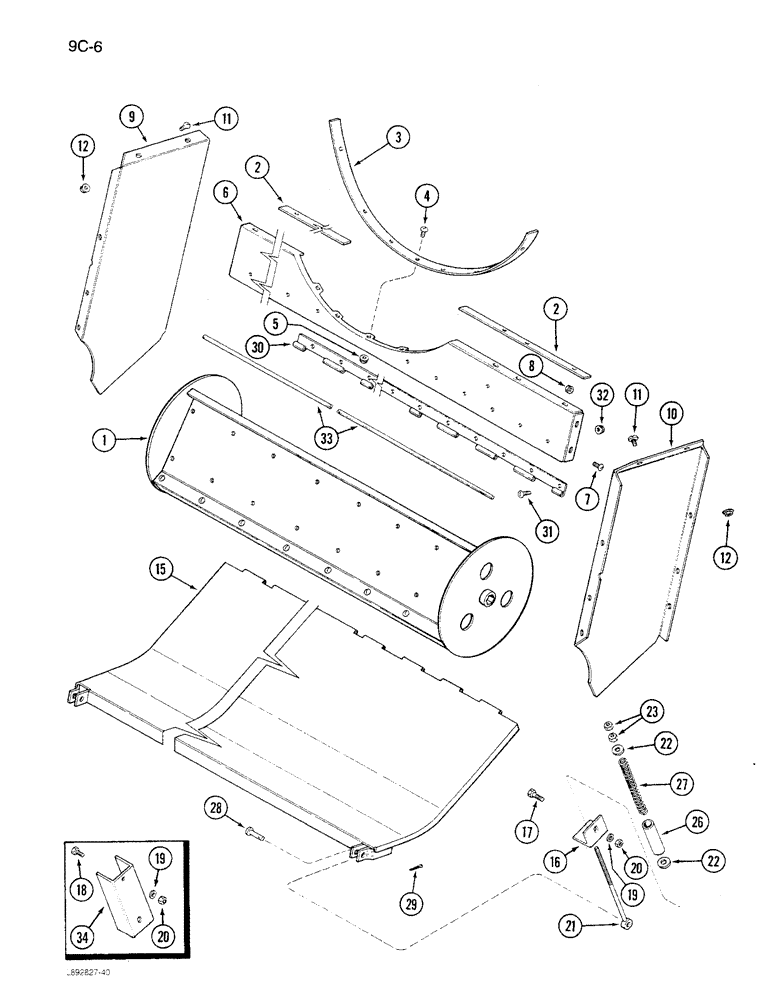

Запчасти Case IH 1680 (9C-06) - DISCHARGE BEATER BOTTOM, SPRING LOADED (RICE) (15) - BEATER & CLEANING FANS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
BEATER ASSEMBLY - discharge (See Figure 9C-02)
1шт.
2
182895C1
FILLER
STRIP - bulkhead rear filler
2шт.
3
182950C1
SUPPORT
STRIP - housing filler rear
1шт.
5
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex flange lock, 3/8 inch NC
7шт.
6
182931C1
SUPPORT
- rear lower housing
1шт.
7
135270
SERRATED SCREW,5/16" - 18 x 3/4"
- slotted truss head, 5/16 NC x 3/4 inch
10шт.
8
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange lock, 5/16 inch NC
10шт.
9
182948C2
DEFLECTOR
- discharge, left
1шт.
10
182949C2
DEFLECTOR
- discharge, right
1шт.
11
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
- slotted truss head, 3/8 NC x 3/4 inch
12шт.
12
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex flange lock, 3/8 inch NC
12шт.
15
182926C2
BOTTOM
- beater
1шт.
16
182896C2
SUPPORT
- spring, bottom (Replaces 182896C1)
2шт.
17
326-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
2шт.
18
186917C1
SCREW
BOLT - hex special, 3/8 NC x 3/4 inch
2шт.
19
396-31041
WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk
4шт.
20
131-1216
LOCK NUT,3/8"-16, GC
NUT, LOCK, 3/8"-16, GC
4шт.
21
182892C2
BOLT,1/2" - 13 x 330mm
EYEBOLT - beater bottom
2шт.
22
495-81162
WASHER,17/32" x 1 1/2" x .179"
- flat, 17/32 x 1-1/2 x 11/64 inch
4шт.
23
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
26
182981C1
SPACER
- beater bottom
2шт.
27
391745R1
SPRING
- beater bottom
2шт.
28
21806R1
HEADED PIN,1/2" x 1 3/4"
PIN - clevis, 1/2 x 1-3/4 inch
2шт.
30
182893C1
HINGE
- beater bottom
2шт.
31
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
- slotted truss head, 3/8 NC x 3/4 inch
10шт.
32
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex flange lock, 3/8 inch NC
10шт.
33
182980C1
ROD,11.11mm OD x 1556mm L
- bottom hinge
1шт.
34
REF
INSTRUCTION
SUPPORT - spring (Order 182896C2)
2шт.
Выбрано товаров: 30
