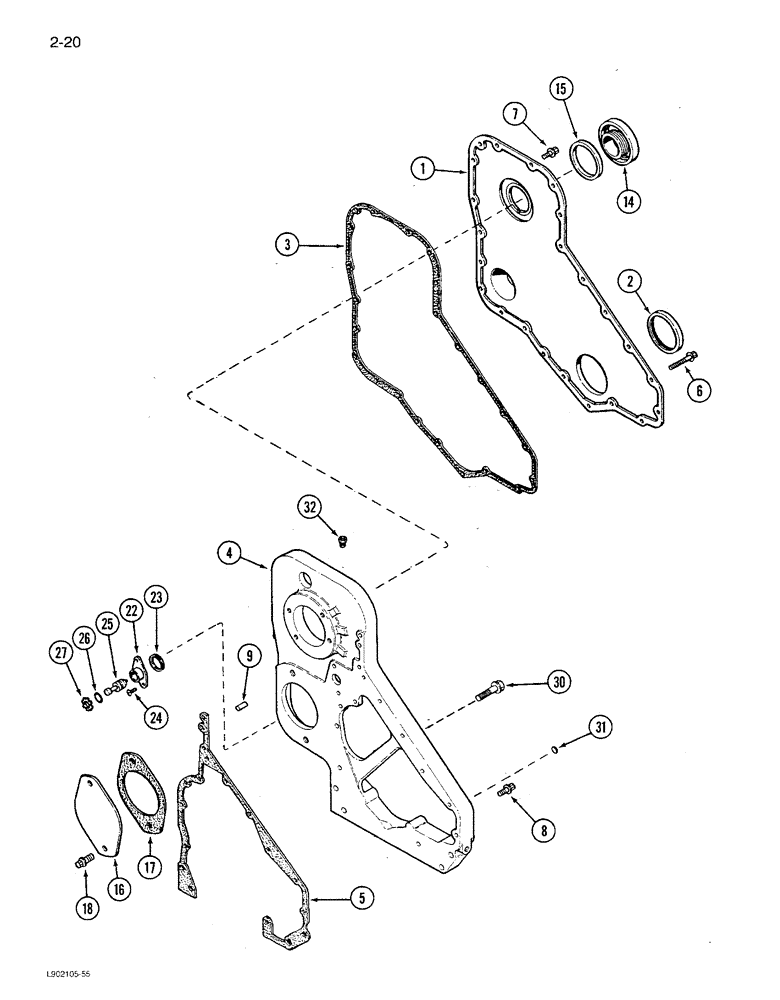

Запчасти Case IH 1680 (2-020) - FRONT GEAR COVER, 6TA-830 ENGINE (01) - ENGINE

1

J916192

COVER ASSY

COVER ASSEMBLY - gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil (See Figure 2-64)

1шт.

3

J917779

GASKET,0.98mm Thk

- cover, gear

1шт.

4

J917316

MOTOR HOUSING

HOUSING - gear

1шт.

5

J914303

SEAL

GASKET - housing, gear

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 50 mm

6шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

17шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

14

J903463

PLUG,M63 x 5

- access

1шт.

15

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

16

J914868

COVER

PLATE - accessory drive cover (Replaces J909918)

1шт.

17

J919601

GASKET

- cover plate (Replaces J913288)

1шт.

18

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

2шт.

22

J919683

HOUSING

- timing pin (Replaces J905933)

1шт.

23

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING, rectangular

1шт.

24

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

25

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

26

J913994

O-RING

- sealing

1шт.

27

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

30

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

4шт.

31

A77552

PLUG

- expansion, lower dowel hole, 29/64 inch diameter

1шт.

32

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

3шт.

J823494

SEALANT

- liquid gasket (Not shown)

1шт.
