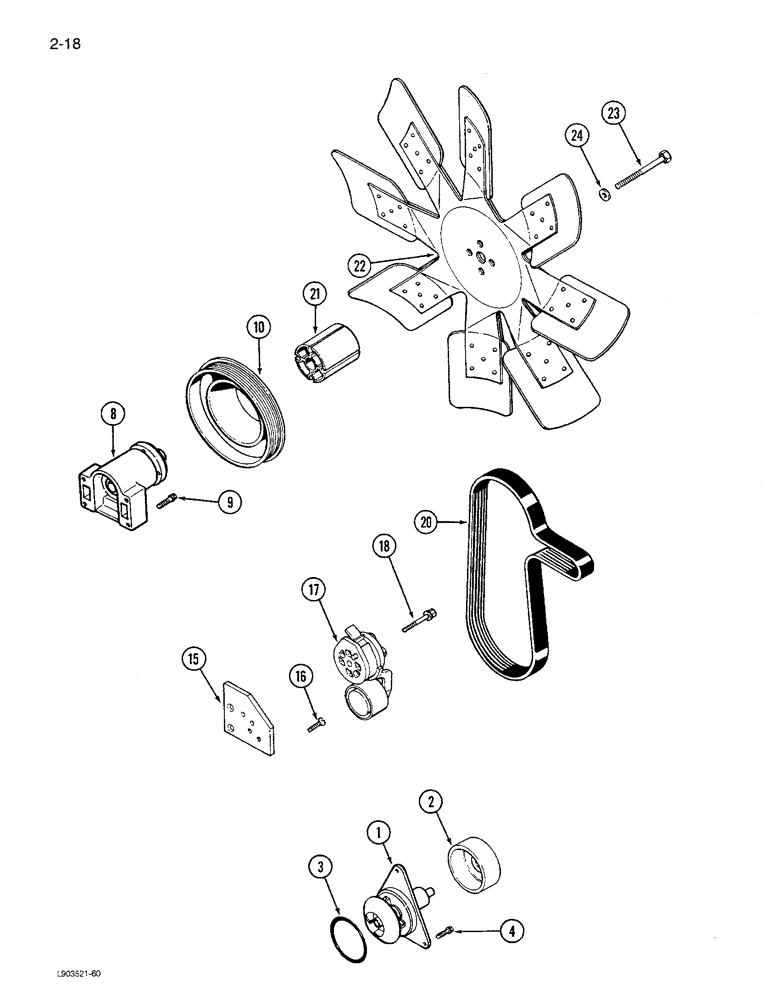

Запчасти Case IH 1680 (2-018) - WATER PUMP, FAN AND BELT, 6TA-830 ENGINE (01) - ENGINE

AR77704

PUMP, WATER

PUMP - water, remanufactured (North America Only)

1шт.

J800976R

REMAN-WATER PUMP

1680 6TA-830 ENGINE (S/N JJC0045689 & AFTER) (1/86-12/92), Reman for New P/N AR77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77704

CORE-HYDRAULIC PUMP

RETURN NUMBER - water pump (Use this part number to return pump core for credit)

1шт.

A77704

PUMP, WATER

PUMP KIT - water, Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

1680 6TA-830 ENGINE (S/N JJC0045689 & AFTER) (1/86-12/92), Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

8

J910738

SUPPORT ASSY.

SUPPORT ASSEMBLY - fan

1шт.

9

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 50 mm

4шт.

10

J914461

PULLEY

- fan

1шт.

15

J919932

SUPPORT

BRACKET - mounting, tensioner

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head slotted, 8 x 25 mm

2шт.

17

J914086

BELT TENSIONER

TENSIONER ASSEMBLY - belt

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- hex flange, 10 - 1.5 x 70 mm, Grade 10.9

1шт.

20

J911574

V-BELT,27.92mm W x 1587.5mm L, 8 Ribs

Fan 3.56 mm W x 1587.50 mm L, 8 Ribs

1шт.

21

A184548

SPACER,Fan, 89/90mm Thk

- fan

1шт.

22

A189206

FAN

- engine, puller

1шт.

23

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 mm - 1.5 x 130 mm

4шт.

24

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 3 mm

4шт.
