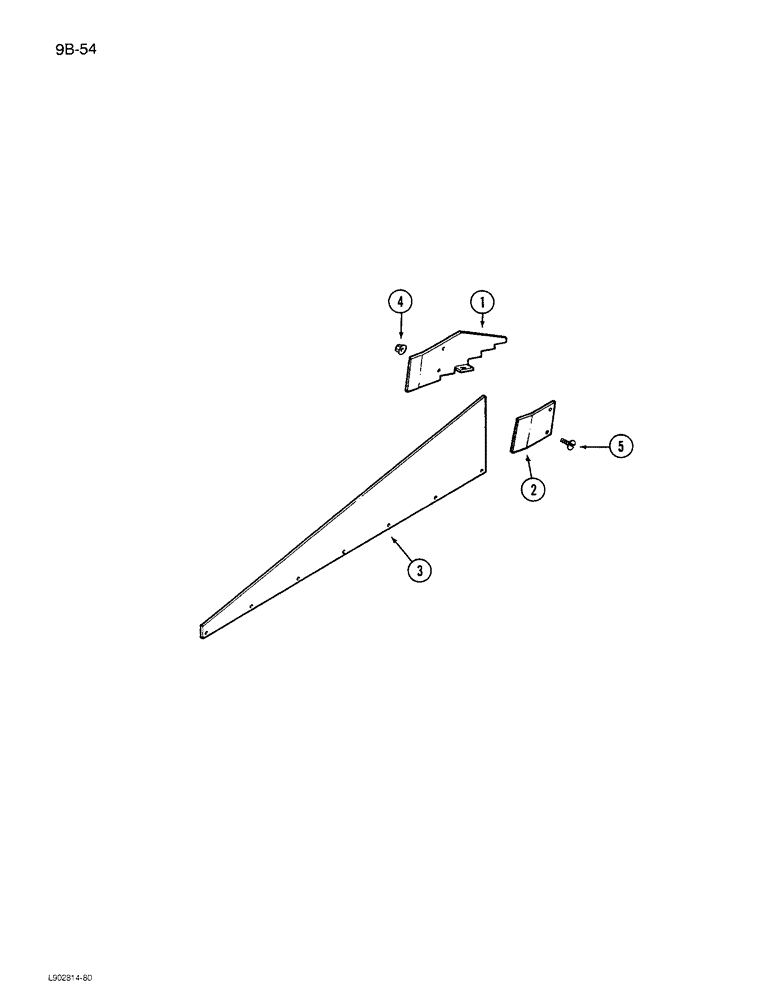

Запчасти Case IH 1680 (9B-54) - GRAIN PAN SIDE HILL DIVIDERS (14) - ROTOR, CONCANVES & SIEVE

180771C91

KIT

DIVIDER KIT - grain pan, Includes: Ref. 1 - 5

5шт.

1

185115C1

DIVIDER

- chaffer front pan

1шт.

2

185116C1

RETAINER

- chaffer divider

1шт.

3

185114C1

DIVIDER

- chaffer sieve

1шт.

4

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

11шт.

5

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW - slotted truss head, 1/4 NC x 1/2 inch

11шт.
