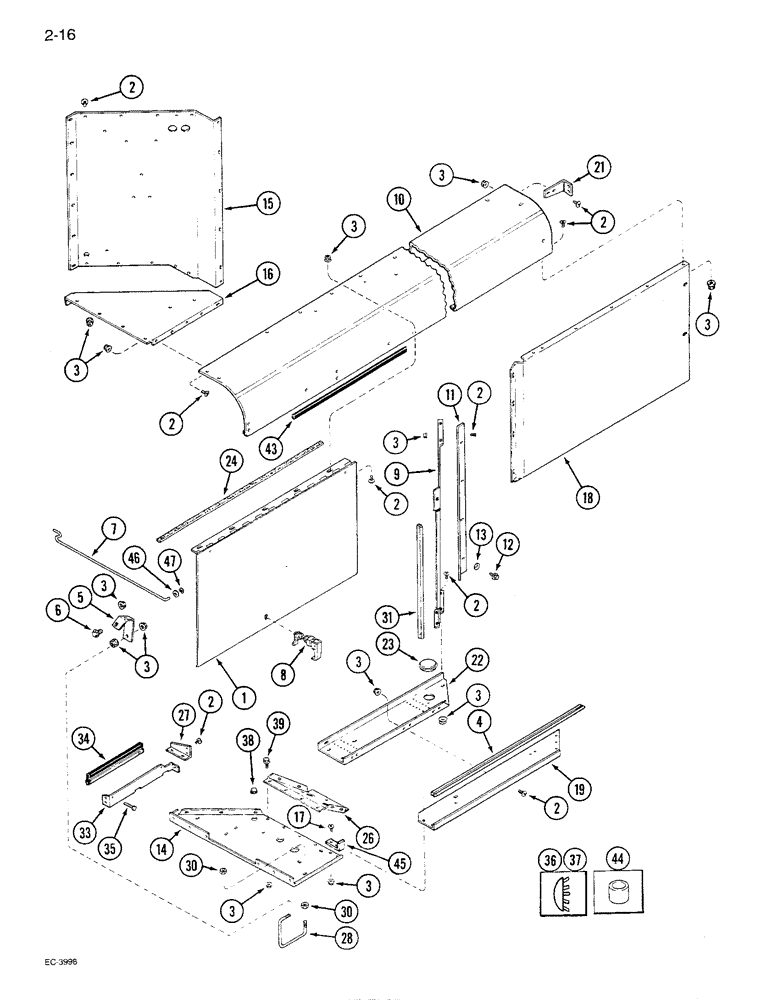

Запчасти Case IH 1680 (2-016) - ROTARY AIR SCREEN CHUTE, P.I.N. JJC0115352 AND AFTER (01) - ENGINE

1

1979861C2

TRAP DOOR

DOOR - radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

86шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

94шт.

4

1989478C1

DOOR SEAL

- radiator access door, bottom

1шт.

5

1347199C2

GUIDE

- radiator door

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

7

1979919C1

STEM

ROD - door

1шт.

8

1302494C2

LATCH

- access door

2шт.

9

1979860C2

DEFLECTOR

- screen chute

1шт.

10

1977121C7

CHUTE (DOWNWARD)

CHUTE - air screen, top

1шт.

11

1330422C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

19шт.

13

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

11шт.

14

1324919C3

SHEET

SUPPORT - bottom rear

1шт.

15

1979228C2

SHEET ASSY.

SUPPORT - screen chute rear

1шт.

16

1324920C2

SUPPORT

- screen, upper

1шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- 5/16 x 3/4 inch slotted truss head

2шт.

18

1989205C2

SHIELD

PANEL - front, side (Replaces 1989205C1)

1шт.

19

1979853C2

CHUTE (DOWNWARD)

CHUTE - bottom rear outlet

1шт.

21

1317704C1

SUPPORT

- top chute mounting

1шт.

22

1979471C4

SUPPORT

- radiator clean out

1шт.

23

1302758C1

PLUG

- clean out hole

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - hinge, 37-1/2 inch (Order 1338148C1 and, Serial Range: cut-length)

1шт.

26

1346916C1

SUPPORT

- bottom front

1шт.

27

1968548C1

SUPPORT

- chute, discharge side

1шт.

28

1979918C1

HANDLE

- assist

1шт.

30

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

6шт.

31

1347460C1

DOOR SEAL,648mm L

- radiator access door, 648 mm long

2шт.

33

1968546C2

SUPPORT

- discharge chute

1шт.

34

1338012C1

BRUSH, COMMUTATOR

BRUSH - block off

1шт.

35

196880C1

RIVET

- mandrel

2шт.

36

432366

HOLE PLUG BUTTON,1 3/8"

PLUG - 1-3/8 inch dia

1шт.

37

432564

HOLE PLUG BUTTON,1 3/4"

PLUG - 1-3/4 inch dia

1шт.

38

1970461C1

GROMMET

- 1-1/2 x 1-1/8 x 7/16 inch

1шт.

38

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

43

1315670C3

SEAL

SEAL - radiator top and bottom

2шт.

44

D81147

SPACER

- tube, door

1шт.

45

1347430C1

SUPPORT

BRACKET - retainer, latch

1шт.

46

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

1шт.

47

437157R1

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

2шт.
