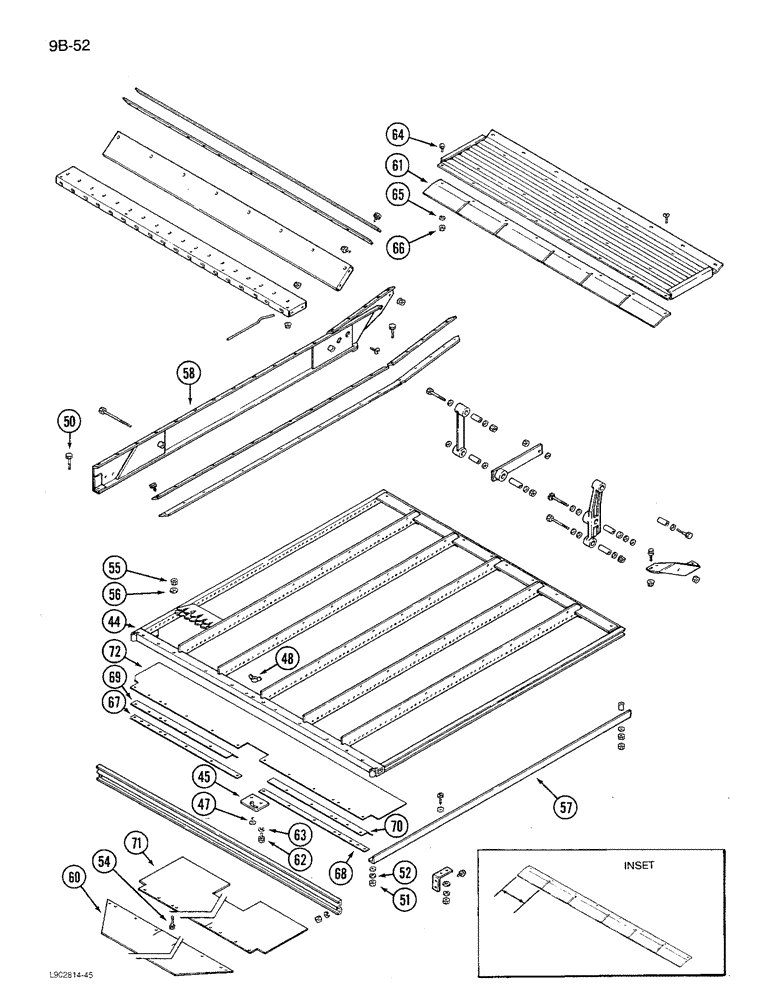

Запчасти Case IH 1680 (9B-52) - CHAFFER SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE

44

1330688C2

GRAIN SIEVE

SIEVE ASSEMBLY - 1-5/8 closz slat chaffer, Includes: Ref 45, 47 and 48, continued

1шт.

For standard length chaffer and drive.

1шт.

44

1322673C3

GRAIN SIEVE

SIEVE ASSEMBLY - 1-5/8 closz slat chaffer, Includes: Ref 45, 47 and 48

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

44

1302172C94

FILTER SCREEN

SIEVE ASSEMBLY - 1-5/8 corn chaffer, Includes: Ref 45, 47 and 48

1шт.

For standard length chaffer and drive.

1шт.

44

1322659C3

GRAIN SIEVE

SIEVE ASSEMBLY - 1-5/8 corn chaffer, Includes: Ref 45, 47 and 48

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

44

1319093C5

GRAIN SIEVE

SIEVE ASSEMBLY - Petersen chaffer, Includes: Ref 45, 47 and 48

1шт.

For standard length chaffer and drive.

1шт.

44

1347372C4

GRAIN SIEVE

SIEVE ASSEMBLY - Petersen chaffer, Includes: Ref 45, 47 and 48

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

44

1330687C3

GRAIN SIEVE

SIEVE ASSEMBLY - 1-1/8 inch adjustable (Grain), Includes: Ref 45, 47 and 48

1шт.

For standard length chaffer and drive.

1шт.

44

1322467C3

GRAIN SIEVE

SIVE ASSEMBLY - 1-1/8 inch adjustable extended, Includes: Ref 45, 47 and 48

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

45

186675C1

ADJUSTING PLATE

- chaffer lever

1шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - round head square neck, 1/4 NC x 1/2 inch

1шт.

48

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

50

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

4шт.

52

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

54

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

14шт.

55

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

14шт.

56

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 3/64 inch

14шт.

57

186370C1

ANGLE

- chaffer support, right

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

57

1325334C2

ANGLE

- chaffer support, right

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

58

192040C3

RAIL

- chaffer, right

1шт.

For standard length chaffer and drive.

1шт.

58

1322453C2

RAIL

- chaffer, right

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

58

1979199C1

RAIL

- chaffer, right

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

60

1302785C2

EXTENSION

- chaffer

1шт.

Ref #60 - Rubber Flap Type Chaffer

1шт.

61

1319259C1

COVER

- chaffer finger (228 mm to first slot, see inset)

1шт.

61

1994858C1

COVER

- chaffer finger (237 mm to first slot, see inset)

1шт.

62

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT - hex washer head, 3/8 x 1-1/4 inch

2шт.

63

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

64

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

65

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

66

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

67

1338345C2

RETAINER

- chaffer seal, left

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

68

1338346C1

RETAINER

- chaffer seal, right

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

69

1322698C3

ANGLE

- chaffer seal, rear left

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

70

1322699C3

ANGLE

- rear chaffer seal, right

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

71

195184C2

SEAL SHEET

- chaffer

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

72

1979332C3

SEAL

- chaffer

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.
