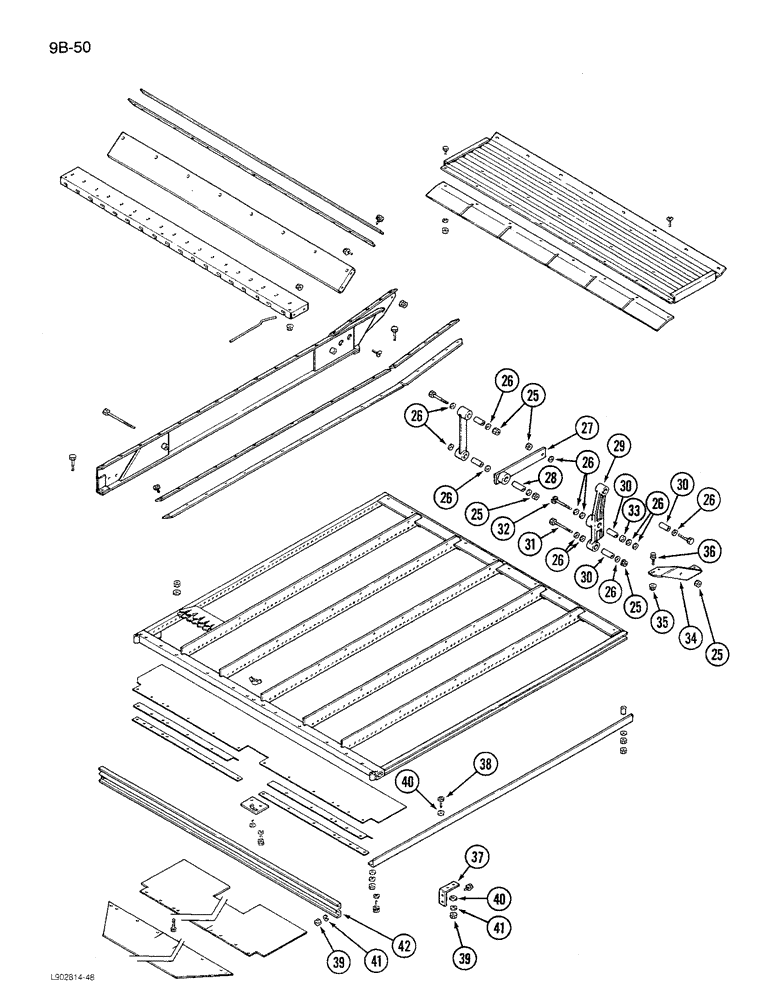

Запчасти Case IH 1680 (9B-50) - CHAFFER SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE
№
Артикул
Название
Примечание
Количество
25
131-1219
LOCK NUT,5/8"-11, GC
NUT, LOCK, , Continued 5/8"-11, GC
10шт.
25
425-1410
JAM NUT,Jam, 5/8"-11, G5
- hex jam, 5/8 inch NC
3шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
26
495-81057
WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk
- flat, 29/32 x 1-1/2 x 7/64 inch
2шт.
27
188010C91
ARM ASSY.
ARM ASSEMBLY - shoe rear, Includes: Ref. 28
2шт.
For standard length chaffer and drive.
1шт.
27
1330357C1
ARM
ASSEMBLY - shoe rear, Includes: Ref. 28
2шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
28
627555R91
BUSHING,16mm ID x 28.96mm OD x 44.45mm L
- shoe arm
1шт.
For standard length chaffer and drive.
1шт.
28
1330324C1
BUSHING
- shoe arm
1шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
29
192941C92
LEVER ASSY.
LEVER ASSEMBLY - shoe, Includes: Ref. 30
2шт.
For standard length chaffer and drive.
1шт.
29
1957460C2
LEVER
ASSEMBLY - shoe, Includes: Ref. 30
2шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
30
627555R91
BUSHING,16mm ID x 28.96mm OD x 44.45mm L
- shoe lever
3шт.
For standard length chaffer and drive.
1шт.
30
1330323C2
BUSHING
- shoe lever
3шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
31
326-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8
BOLT, Hex, 5/8"-11 x 3 1/2", G8
2шт.
For standard length chaffer and drive.
1шт.
31
326-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 8
2шт.
31
326-1092
BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 8
2шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
32
111-630
CARRIAGE BOLT,Short NK, 5/8"-11 x 4", G2
BOLT, CARRIAGE, Short NK, 5/8"-11 x 4", G2
2шт.
For standard length chaffer and drive.
1шт.
32
433-1080
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5
BOLT - round head square neck, 5/8 x 6 inch
2шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
33
168250C1
RING
SPACER - shoe and chaffer lever
2шт.
For standard length chaffer and drive.
1шт.
34
193107C2
SUPPORT
- shoe lever, left
1шт.
For standard length chaffer and drive.
1шт.
34
193108C2
SUPPORT
- shoe lever, right
1шт.
For standard length chaffer and drive.
1шт.
34
1968827C1
SUPPORT
- shoe lever, left
1шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
34
1968828C1
SUPPORT
- shoe lever, right
1шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
35
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex, 3/8 lock
4шт.
36
541313R1
BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"
- hex, 3/8 x 3/4 inch
4шт.
37
186674C1
ANGLE
- rear deflector
2шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For standard length chaffer and drive.
1шт.
38
443-13116
SCREW,Cross Flat Hd, 5/16"-18 x 1"
1шт.
39
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
40
495-81112
WASHER,.344" x 3/4" x .120"
- flat, 11/32 x 3/4 x 7/64 inch
2шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For standard length chaffer and drive.
1шт.
42
193970C1
CHANNEL
- rear
1шт.
For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.
1шт.
For standard length chaffer and drive.
1шт.
42
1322458C3
SUPPORT
CHANNEL - rear
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
