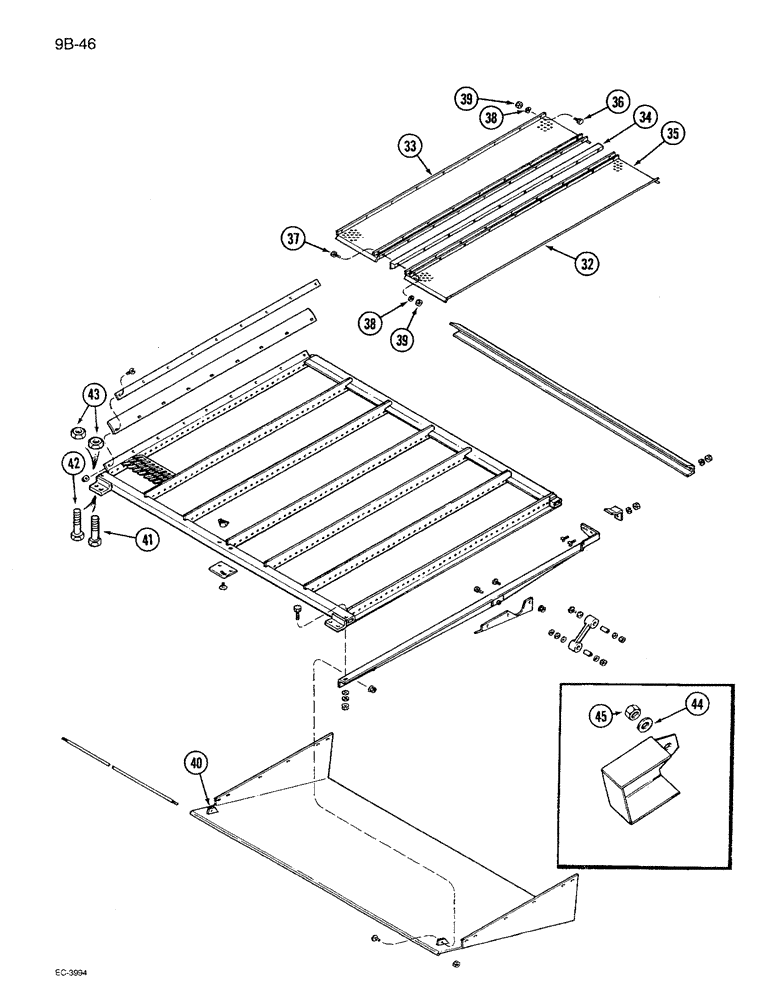

Запчасти Case IH 1680 (9B-46) - SHOE SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE

32

1319282C1

SCREEN

- perforated side section

2шт.

For use with sieve 193960C2.

1шт.

33

1319283C1

SCREEN

- perforated mid section

4шт.

For use with sieve 193960C2.

1шт.

34

1319284C1

BAR

- wood spacer

1шт.

For use with sieve 193960C2.

1шт.

35

1319300C1

BAR

- screen fastener backing

10шт.

For use with sieve 193960C2.

1шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

36шт.

For use with sieve 193960C2.

1шт.

37

413-320

BOLT - hex, 1/4 NC x 1-1/4 inch

9шт.

For use with sieve 193960C2.

1шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

45шт.

For use with sieve 193960C2.

1шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

45шт.

For use with sieve 193960C2.

1шт.

40

1319219C1

PLATE

BAR - shoe return pan filler

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

41

326-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 8

2шт.

42

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

2шт.

43

232-5316

FLANGE NUT,Flg, 3/8"-16

NUT - lock 3/8 NC

4шт.

44

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

45

125-1410

NUT - hex 5/8 inch

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

1319277C91

PACKAGE

PARTS ACCESSORY - alfalfa (Consists of Ref 11, Figure 9B-42, Ref 32 t- 39, Figure 9B-46, and Ref 61, Figure 9B-???).

1шт.
