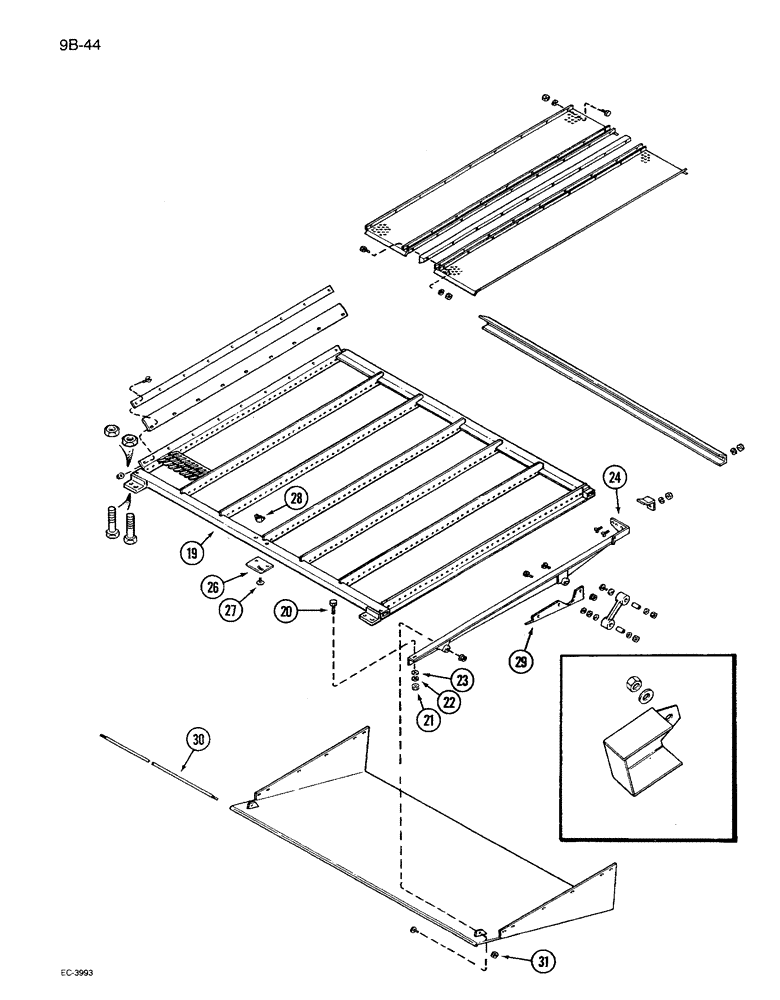

Запчасти Case IH 1680 (9B-44) - SHOE SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE

19

1346915C2

GRAIN SIEVE

SIEVE - shoe, 1-1/8 inch slat

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

If looking for the handle for shoe sieve Ref. 19 the part number is 303957A1

1шт.

19

1322464C5

GRAIN SIEVE

SIEVE - shoe, 1-1/8 inch slat

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

19

186820C2

GRAIN SIEVE

SIEVE - shoe, 1/10 inch round holes

1шт.

For standard length chaffer and drive.

1шт.

19

1347365C1

GRAIN SIEVE

SIEVE - shoe, 1/10 inch round holes

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

19

186821C2

GRAIN SIEVE

SIEVE - shoe, 7/32 inch round holes

1шт.

For standard length chaffer and drive.

1шт.

19

1347366C1

GRAIN SIEVE

SIEVE - shoe, 7/32 inch round holes

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

19

186822C2

GRAIN SIEVE

SIEVE - shoe, 3/8 inch round holes

1шт.

For standard length chaffer and drive.

1шт.

19

1347367C1

GRAIN SIEVE

SIEVE - shoe, 3/8 inch round holes

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

19

186823C2

GRAIN SIEVE

SIEVE - shoe, 1/2 inch round holes

1шт.

For standard length chaffer and drive.

1шт.

19

1347368C1

GRAIN SIEVE

SIEVE - shoe, 1/2 inch round holes

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

19

1302233C2

GRAIN SIEVE

SIEVE - shoe, 1-5/8 inch closz slat

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

19

1979328C5

GRAIN SIEVE

SIEVE - shoe, 1-5/8 inch closz slat

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

19

1347375C2

GRAIN SIEVE

SIEVE - shoe, 1-1/8 inch closz slat, with 1/4 inch hole

1шт.

For standard length chaffer and drive.

1шт.

19

1347376C4

GRAIN SIEVE

SIEVE - shoe, 1-1/8 inch closz slat with 1/4 inch hole

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

19

1347373C1

GRAIN SIEVE

SIEVE - shoe, 1/2 inch hole with lip

1шт.

For standard length chaffer and drive.

1шт.

19

1347374C1

GRAIN SIEVE

SIEVE - shoe, 1/2 inch hole with lip

1шт.

If looking for the Rubber Seal for item #19, look at Figure 9D-18 Ref. 8

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

20

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, Grade 8

2шт.

20

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT - hex washer head, 3/8 NC x 1-1/4 inch

2шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

21

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

2шт.

22

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

23

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

24

1302071C3

SUPPORT

- shoe side right (Shown)

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

24

1302070C3

SUPPORT

- shoe side, left

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

24

1979901C3

RAIL ASSY.

SUPPORT - shoe side, right

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

24

1979900C3

RAIL ASSY.

SUPPORT - shoe side, left

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

26

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

27

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - round head square neck, 1/4 x 1/2 inch

2шт.

28

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

29

1302335C2

SUPPORT

- forward shoe left

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

29

1302336C2

SUPPORT

- forward shoe right

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

29

1325320C1

SUPPORT ASSY.

SUPPORT - forward shoe, left

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

29

1325321C1

SUPPORT

- forward shoe, right

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

30

1319216C1

ROD

- return pan bottom rear

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

31

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.
