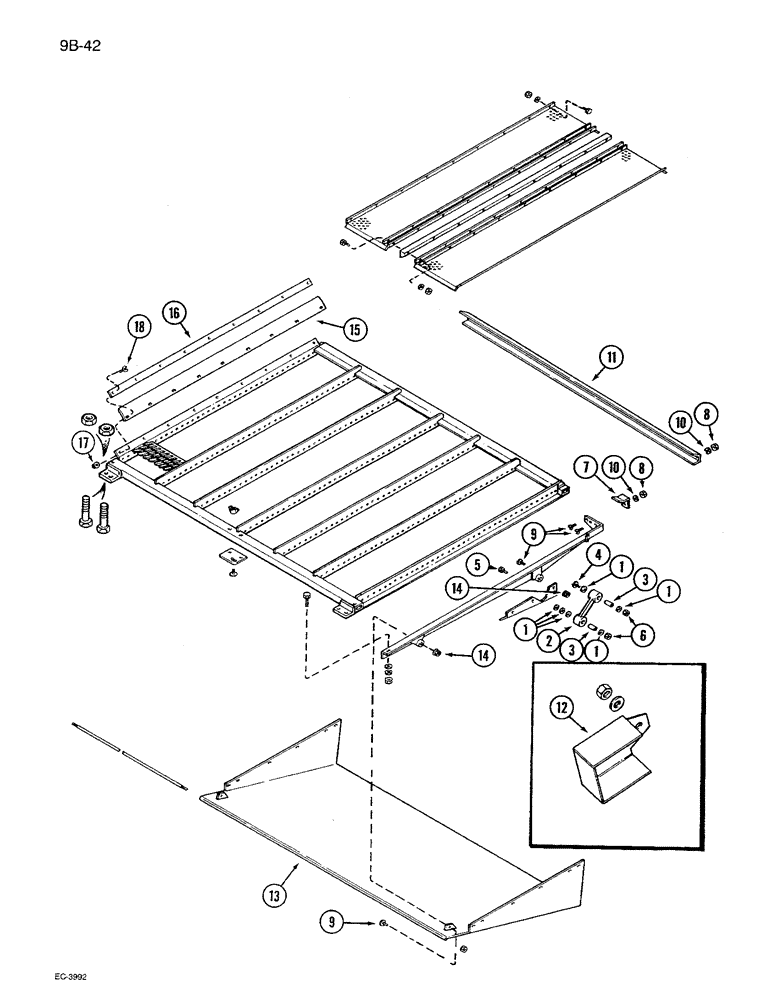

Запчасти Case IH 1680 (9B-42) - SHOE SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- shoe hanger arm

12шт.

2

175160C91

LEVER

HANGER ASSEMBLY - front shoe, Includes: Ref. 3

2шт.

For standard length chaffer and drive.

1шт.

2

1957450C1

ARM

HANGER ASSEMBLY - front shoe, Includes: Ref. 3

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

3

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- shoe front hanger

2шт.

For standard length chaffer and drive.

1шт.

3

1330324C1

BUSHING

- shoe front hanger

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

4

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT - round head square neck, 5/8 NC x 3-1/4 inch

2шт.

For standard length chaffer and drive.

1шт.

4

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

BOLT - round head square neck, 5/8 x 4 inch

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

5

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

6

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

7

182684C2

CLIP

- shoe front support

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 x 3/4 inch

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

1319239C1

ANGLE

- shoe front

1шт.

12

1345081C1

GUARD

SHIELD - front shoe hanger

2шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

13

1319209C1

BOTTOM

- shoe return pan

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

13

1322461C1

PAN

BOTTOM - shoe return pan

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

432564

HOLE PLUG BUTTON,1 3/4"

PLUG - button, 1-3/4 inch hole

2шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

15

192192C1

SEALING STRIP

- shoe sieve

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

15

1325324C1

SEAL,56mm W x 1582mm L

- shoe sieve

2шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

16

192193C1

BAR

- shoe sieve seal

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For standard length chaffer and drive.

1шт.

16

1325325C1

RETAINER

BAR - shoe sieve seal

2шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch

18шт.

18

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

18шт.
