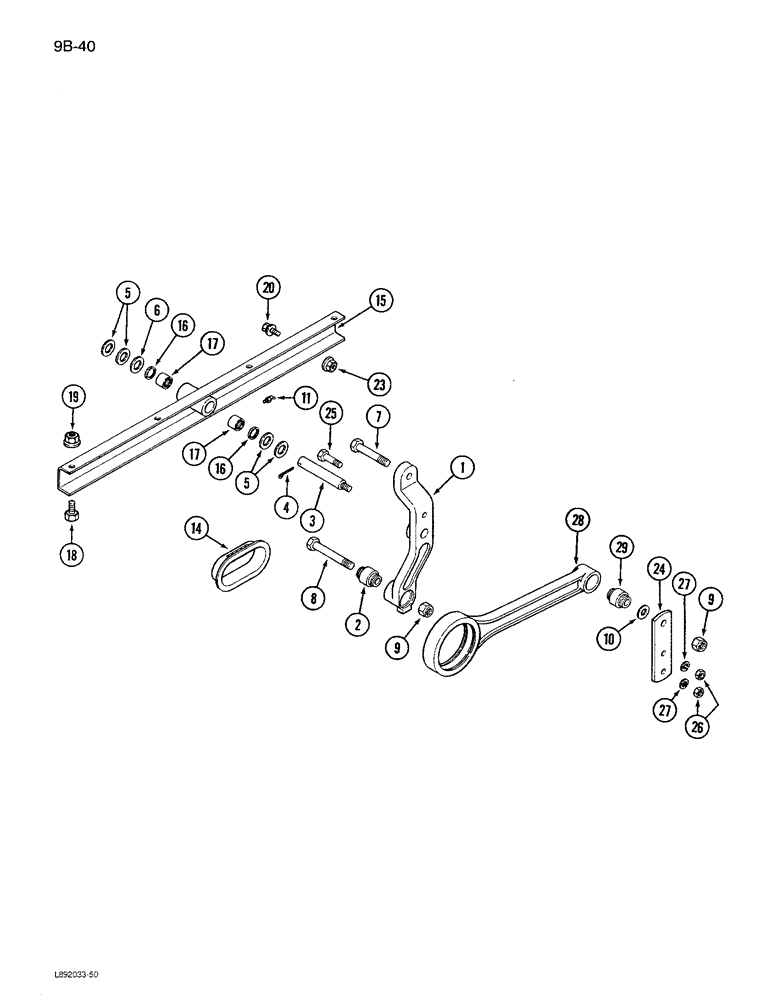

Запчасти Case IH 1680 (9B-40) - CHAFFER DRIVE HANGER LEVER AND SUPPORT (14) - ROTOR, CONCANVES & SIEVE

1

1321374C91

LEVER ASSY.

LEVER ASSEMBLY - chaffer drive hanger, Includes: Ref. 2, 3 and hardware

2шт.

For short chaffer cleaning system.

1шт.

1

1957467C2

LEVER

ASSEMBLY - chaffer drive hanger, Includes: Ref. 2, 3 and hardware

2шт.

For long chaffer cleaning system.

1шт.

2

186597C1

BUSHING,16mm ID x 38.23mm OD x 44.7mm L

- chaffer drive hanger arm

1шт.

For short chaffer cleaning system.

1шт.

2

1330323C2

BUSHING

- chaffer drive hanger arm

1шт.

For long chaffer cleaning system.

1шт.

3

186740C1

PIN,22.25mm OD x 147.32mm L

SHAFT - hanger arm

1шт.

For short chaffer cleaning system.

1шт.

3

1979251C1

SHAFT

- hanger arm

1шт.

For long chaffer cleaning system.

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - retaining, hanger arm shaft

1шт.

For long chaffer cleaning system.

1шт.

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 21/32 x 1-1/4 x 3/64 inch

4шт.

For long chaffer cleaning system.

1шт.

4

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

5

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch

6шт.

6

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 3/64 inch

4шт.

7

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, Grade 8

2шт.

For short chaffer cleaning system.

1шт.

8

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

8

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

For long chaffer cleaning system.

1шт.

9

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

10

21782R1

WASHER

- flat, 21/32 x 2 x 3/64 inch

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch

2шт.

14

1302644C1

PLUG

SEAL - chaffer rail front pivot

2шт.

15

186651C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - front hanger, Includes: Ref. 16 and 17

2шт.

16

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

- front hanger support bearing

4шт.

17

551139R91

BEARING, NEEDLE

BEARING - front hanger support

4шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

19

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock

12шт.

20

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

24

186752C1

BAR

- pitman stablizer

2шт.

For short chaffer cleaning system.

1шт.

24

1957462C1

BAR

- pitman stablizer

2шт.

For long chaffer cleaning system.

1шт.

25

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

28

186738C91

PITMAN

ASSEMBLY - shaker shaft, Includes: Ref. 29

2шт.

For short chaffer cleaning system.

1шт.

28

1957458C2

ARM ASSY.

PITMAN ASSEMBLY - shaker shaft, Includes: Ref. 29, Start Serial: JJC0117060

2шт.

For long chaffer cleaning system.

1шт.

28

1989251C1

ARM

PITMAN ASSEMBLY - shaker shaft, Includes: Ref. 29, Serial Range: -JJC0117060

2шт.

For long chaffer cleaning system.

1шт.

29

186597C1

BUSHING,16mm ID x 38.23mm OD x 44.7mm L

- chaffer drive hanger arm

1шт.

For short chaffer cleaning system.

1шт.

29

1330323C2

BUSHING

- chaffer drive hanger arm, Start Serial: JJC0117060

1шт.

For long chaffer cleaning system.

1шт.

29

1979383C1

BUSHING

- chaffer drive hanger arm, Serial Range: -JJC0117060

1шт.

For long chaffer cleaning system.

1шт.
