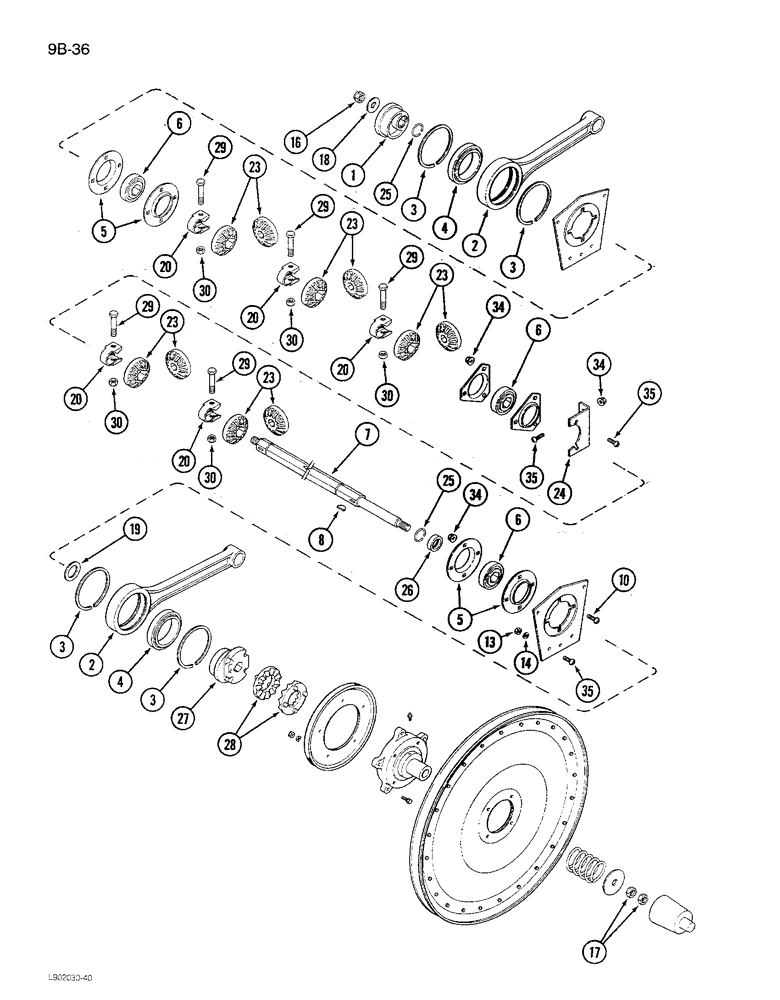

Запчасти Case IH 1680 (9B-36) - SHAKER SHAFT AND AUGER DRIVE (14) - ROTOR, CONCANVES & SIEVE

1

183053C2

ECCENTRIC

CAM - left, shaker shaft pitman drive

1шт.

For standard length chaffer and drive.

1шт.

1

1322573C1

CAM

- left, shaker shaft pitman drive

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

From TSG "Keyway is 5/16 in this cam. The width and depth have been increased. The 1/4 inch Key P/N did not change. The key is used for timing only and the STD tolerances are not required."

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

1322623C1

RETAINER

RING - retainer, internal 1-13/64 inch

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

- flat, 29/32 x 1-1/4 x 1/8 inch

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

1979190C1

RETAINER

RING - retainer, external 2.961 ID

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

2

REF

INSTRUCTION

PITMAN - shaker shaft (See Figure 9B-40)

2шт.

3

892775C1

SNAP RING,#475, 5.070", Int

RING - snap, shaker shaft pitman bearing

4шт.

For standard length chaffer and drive.

1шт.

3

1322624C1

SNAP RING

RING - retaining, external, 5.125 inch

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

4

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

BEARING - shaker shaft, pitman

2шт.

For standard length chaffer and drive.

1шт.

4

1322676C1

BALL BEARING,3.1496" ID x 4.9213" OD x 0.8661"

- shaker shaft, pitman

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

5

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - shaker shaft bearing

4шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - shaker shaft

3шт.

7

194176C1

SHAFT

- shaker

1шт.

For standard length chaffer and drive.

1шт.

7

1322616C1

SHAFT

- shaker

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

8

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

8шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

14

492-11038

LOCK WASHER,3/8"

8шт.

16

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

17

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

18

23245R1

WASHER

- flat, 25/32 x 1-3/4 x 5/32 inch

1шт.

For standard length chaffer and drive.

1шт.

18

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

- shaker cam

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

19

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

20

225265R1

CLAMP

- auger bed gear

5шт.

23

1300639C1

GEAR-SET

GEAR SET - auger drive, 14 teeth, consists of: P/N 191677C1 and P/N 194194C1

5шт.

Now subs to P/N 191677C1 and P/N 194194C1.

1шт.

24

186589C1

SUPPORT

- auger drive center bearing

1шт.

25

575186R1

SNAP RING

RING - main drive shaft

2шт.

For standard length chaffer and drive.

1шт.

26

935856R1

BUSHING

- main drive shaft

1шт.

For standard length chaffer and drive.

1шт.

26

225265R1

CLAMP

- auger bed gear

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

27

191429C2

CAM

- right, shaker shaft pitman drive

1шт.

For standard length chaffer and drive.

1шт.

27

1322574C1

CAM

- right, shaker shaft pitman drive

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

1322623C1

RETAINER

RING - retainer, internal 1-13/64 inch

2шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

- flat, 1-1/16 x 1-1/3 x 1/8 inch

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

1979190C1

RETAINER

RING - retainer, external 1-21/32 inch

1шт.

For heavy duty chaffer drive system, P.I.N. JJC0047025 and after.

1шт.

For long chaffer cleaning system, P.I.N. JJC0047412 and after.

1шт.

28

B12170

RATCHET,Clutch Slip, 94.49mm

- shaker shaft drive slip clutch

2шт.

29

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

5шт.

30

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

5шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

13шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

1шт.
