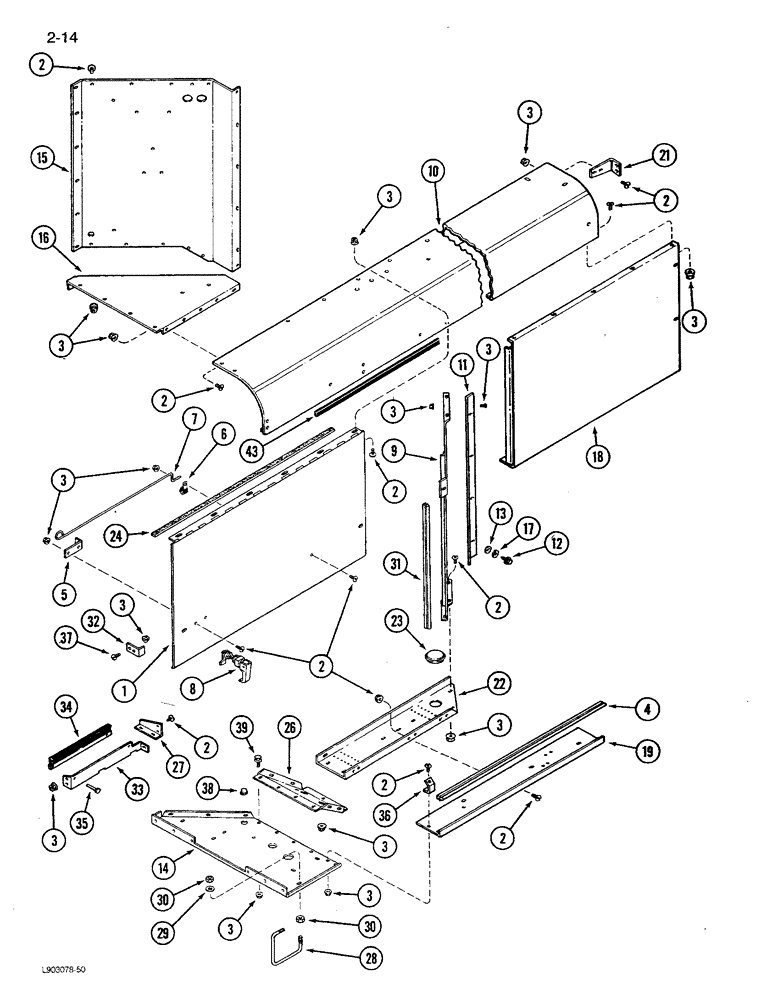

Запчасти Case IH 1680 (2-014) - ROTARY AIR SCREEN CHUTE, PRIOR TO P.I.N. JJC0115352 (01) - ENGINE

1

1321245C1

DOOR

- radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

84шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

92шт.

4

1977216C2

SEAL

- radiator access door, bottom

1шт.

5

1319697C1

SUPPORT

- rod mounting

1шт.

6

362123R1

CLIP

- trim

1шт.

7

183444C1

ROD

- door

1шт.

8

1302494C2

LATCH

- access door

2шт.

9

1317996C1

GUARD

DEFLECTOR - screen chute

1шт.

10

1977121C7

CHUTE (DOWNWARD)

CHUTE - air screen, top

1шт.

11

1330422C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

19шт.

13

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

11шт.

14

1324919C3

SHEET

SUPPORT - bottom rear

1шт.

15

1979228C2

SHEET ASSY.

SUPPORT - screen chute rear

1шт.

16

1324920C2

SUPPORT

- screen, upper

1шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

18

1321287C1

SUPPORT

PANEL - front side

1шт.

19

1319674C4

SUPPORT

CHUTE - bottom rear outlet

1шт.

21

1317704C1

SUPPORT

- top chute mounting

1шт.

22

1979471C4

SUPPORT

- radiator clean out

1шт.

23

1302758C1

PLUG

- clean out hole

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - hinge, 37-1/2 inch (Order 1338148C1 and, Serial Range: cut-length)

1шт.

26

1346916C1

SUPPORT

- bottom front

1шт.

27

1968548C1

SUPPORT

- chute, discharge side

1шт.

28

1321939C2

ROD

HANDLE - assist

1шт.

29

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

30

905263R1

NUT,M12 x 1.75, Cl 10

NUT - hex lock, 12 mm, Grade 10

4шт.

31

1319817C2

SEAL

- radiator door

2шт.

32

1317718C1

BRACKET

- door lock

1шт.

33

1968546C2

SUPPORT

- discharge chute

1шт.

34

1338012C1

BRUSH, COMMUTATOR

BRUSH - block off

1шт.

35

196880C1

RIVET

- mandrel

2шт.

36

561915R1

BRACKET

SUPPORT - light

1шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 x 3/4 inch

2шт.

38

1970461C1

GROMMET

- 1-1/2 x 1-1/8 x 7/16 inch

1шт.

38

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

43

1315670C3

SEAL

SEAL - radiator top and bottom

2шт.
