(9B-34) - AUGER BED

Запчасти Case IH 1680 (9B-34) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

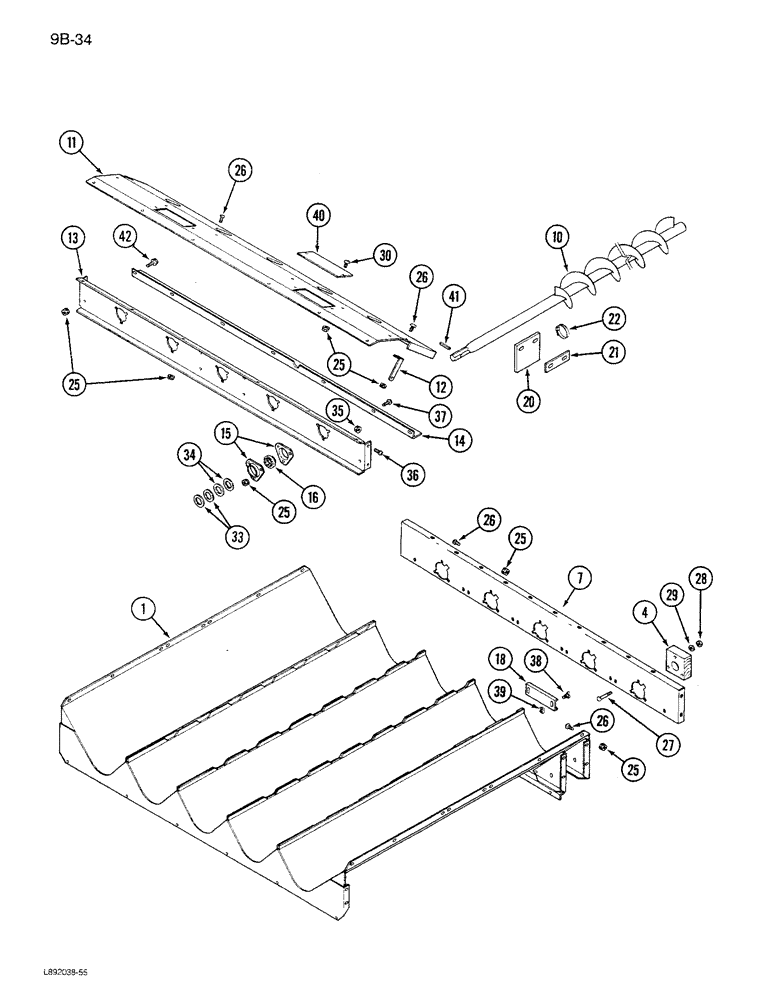

Схема запчастей Case IH 1680 - (9B-34) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE
1
12
10
15
20
26
29
25
28
41
14
37
4
21
25
11
26
30
36
22
35
25
25
25
39
33
16
26
7
27
34
42
18
13
40
38
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

191645C4

TROUGH

- auger (Replaces 191645C3)

1шт.

4

193414C2

BOARD

- front auger bearing

5шт.

7

1345014C3

SUPPORT

- auger, front (Replaces 1345014C2)

1шт.

10

1308541C1

AUGER

right rotation, 208 inch, 2 peice setup

5шт.

11

1321372C1

FILLER

- support, rotor to auger drive

1шт.

12

193554C1

SUPPORT

- pan

2шт.

13

1309226C1

SUPPORT

- auger drive gear

1шт.

14

188360C1

STIFFENER

ANGLE - auger support stiffener

1шт.

15

571424R1

FLANGE

- auger bearing

10шт.

16

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - auger drive

5шт.

18

185068C1

COVER

- auger trough clean out

5шт.

1300666C91

KIT

ACCESSORY KIT - auger bed grain spreader, Includes: Ref. 20 - 22

1шт.

20

1302112C1

STRIP

- auger bed grain spreader

1шт.

21

1302113C1

BAR

- grain spreader strip

1шт.

22

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

27

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/4 inch

15шт.

28

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

15шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

15шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

13шт.

33

495-81210

WASHER,34.14mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-11/32 x 2 x 3/64 inch

10шт.

34

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch

10шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

37

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

10шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

- wing, clean out cover

10шт.

39

564791R1

SPRING NUT

- Tinnerman, 1/4 inch NC

10шт.

40

1319548C1

BAR

COVER - grain sensor

2шт.

41

576482R1

LOCK PIN,5/16" x 2", Slotted

5шт.

42

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.
