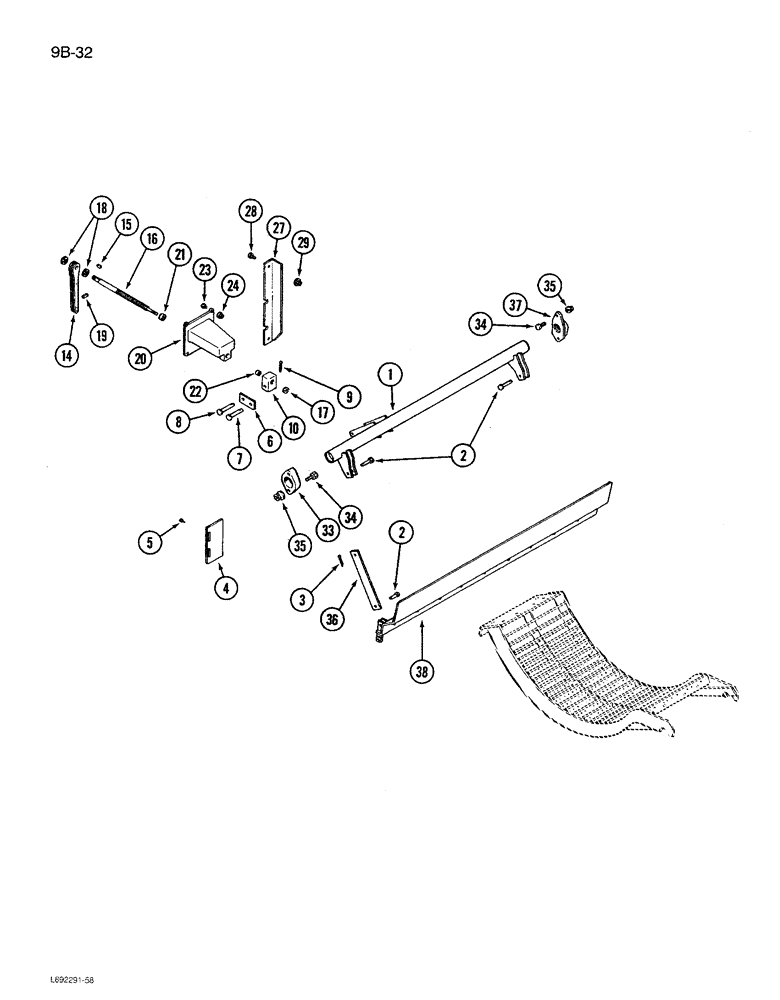

Запчасти Case IH 1680 (9B-32) - CONCAVE CONTROL (14) - ROTOR, CONCANVES & SIEVE

1

191422C1

LEVER

- concave control

1шт.

2

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN - clevis, 1/2 x 1-1/2 inch

4шт.

3

432-1216

COTTER PIN,3/16" x 1"

4шт.

4

188168C1

PLATE

BAR - concave indicator

1шт.

5

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex slotted, No. 10-24 x 1/2 inch

2шт.

6

192888C1

PLATE

BAR - concave control, upper

2шт.

7

21814R1

HEADED PIN,1/2" x 3"

PIN - clevis, 1/2 x 3 inch long

1шт.

8

22899R1

HEADED PIN,1/2" x 2 3/8"

PIN, HEADED, 1/2" x 2 3/8"

1шт.

9

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

192886C1

NUT

- adjusting, concave control

1шт.

14

170282C1

HANDLE

- concave control

1шт.

15

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

16

1989682C1

STEM

SHAFT - concave adjusting

1шт.

17

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

18

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

- flat 21/32 x 1-5/16 x 3/32 inch

2шт.

19

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

20

192883C93

SUPPORT

HOUSING ASSEMBLY - concave control, Includes: Ref. 21 and 22

1шт.

21

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

- concave control housing

1шт.

22

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- concave control housing

1шт.

23

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

4шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

27

182577C1

ANGLE

- housing support

1шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

2шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

33

192890C2

HUB

- concave control shaft

2шт.

34

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

35

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

4шт.

36

1318893C1

BAR

- concave control

1шт.

37

188351C1

HUB

- concave control shaft, front

2шт.

38

REF

INSTRUCTION

SUPPORT - anchor, concave (See Figure 9B-36)

1шт.
