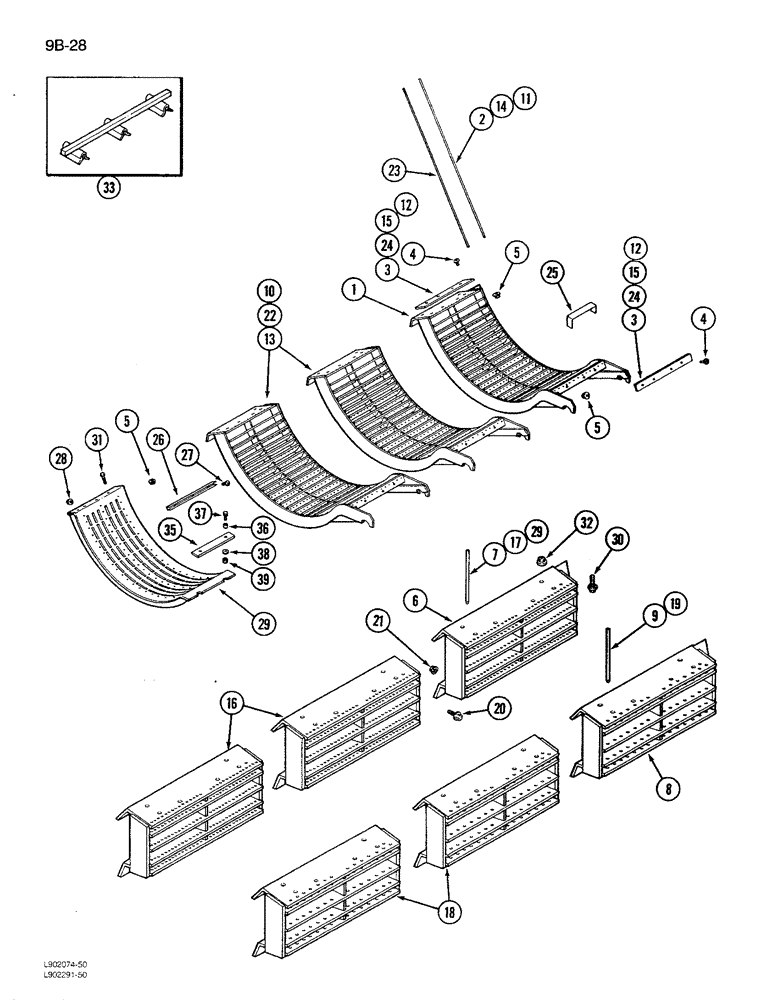

Запчасти Case IH 1680 (9B-28) - CONCAVES, TWO PIECE CONCAVES AND GRATES (IF EQUIPPED) (14) - ROTOR, CONCANVES & SIEVE

1

1309204C3

CONCAVE

ASSEMBLY - front, small wire, Includes: Ref. 1 - 5

1шт.

1

193782C6

CONCAVE

ASSEMBLY - front, large wire, Includes: Ref. 1 - 5

1шт.

2

188193C2

ROD

- concave, 3/16 x 36 inch

30шт.

2

191485C2

ROD

- concave, 1/4 x 36 inch

14шт.

3

193859C1

PLATE

BAR - concave wire retaining

2шт.

4

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- truss head, 3/8 NC x 1 inch

1шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

6

1318557C1

CONCAVE

ASSEMBLY - front extension, small wire, Includes: Ref. 7

1шт.

7

1318563C1

SMALL PIN,4.76mm OD x 145mm L

PIN - small wire, 3/16 x 5-3/4 inch

30шт.

8

1318555C1

CONCAVE

ASSEMBLY - front extension, large wire, Includes: Ref. 9

1шт.

9

1318562C1

PIN

- large wire, 1/4 x 5-3/4 inch

14шт.

10

195348C5

CONCAVE

ASSEMBLY - No. 2 and 3, small wire, Includes: Ref 11 and 12

2шт.

11

188193C2

ROD

- concave, 3/16 x 36 inch

1шт.

12

193859C1

PLATE

BAR - concave wire retaining

2шт.

13

193783C5

CONCAVE

ASSEMBLY - No. 2 and 3, large wire, Includes: Ref. 14 and 15

2шт.

14

191485C2

ROD

- concave, 1/4 x 36 inch

14шт.

15

193859C1

PLATE

BAR - concave wire retaining

2шт.

16

1318558C1

CONCAVE

ASSEMBLY - No. 2 and 3, extension, small wire, Includes: Ref. 17

2шт.

17

1318563C1

SMALL PIN,4.76mm OD x 145mm L

PIN - small wire, 3/16 x 5-3/4 inch

30шт.

18

1318556C1

CONCAVE

ASSEMBLY - No. 2 and 3, extension, large wire, Includes: Ref. 18

2шт.

19

1318562C1

PIN

- large wire, 1/4 x 5-3/4 inch

14шт.

20

1302787C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8

BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8

1шт.

21

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

22

1309207C3

CONCAVE

ASSEMBLY - No. 2 and 3, small wire (Heat treated), Includes: Ref. 23

2шт.

23

188193C2

ROD

- concave, 3/16 x 36 inch

60шт.

24

193859C1

PLATE

BAR - concave wire retaining

4шт.

1300673C91

PACKAGE

FILLER KIT - concave, small wire (Set of 6), Includes: Ref. 25

1шт.

25

1309425C1

CHANNEL

STRIP - concave, small wire

6шт.

1300716C91

CHANNEL

FILLER KIT - concave, large wire, Includes: Ref. 25

1шт.

25

1309424C1

CHANNEL

STRIP - concave, large wire

6шт.

26

191536C1

CHANNEL

- grate adjusting, corn (Used with slotted grate)

1шт.

27

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

28

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

29

191535C2

GRATE

- slotted (Crain)

3шт.

29

1302563C1

CONCAVE

- keystock (Corn and Rice)

3шт.

29

1319405C1

GRATE

- smooth

1шт.

30

1302787C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8

BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8

1шт.

31

1302788C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex lock, 3/8 NC x 1 inch

1шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

33

1324046C1

BAR ASSY.

BAR - concave, filler, small wire

1шт.

35

186784C2

BAR

- grate hanger

3шт.

36

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

37

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 2 inch, Grade 8

6шт.

38

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 9/64") 1/2", SAE

6шт.

39

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

6шт.
