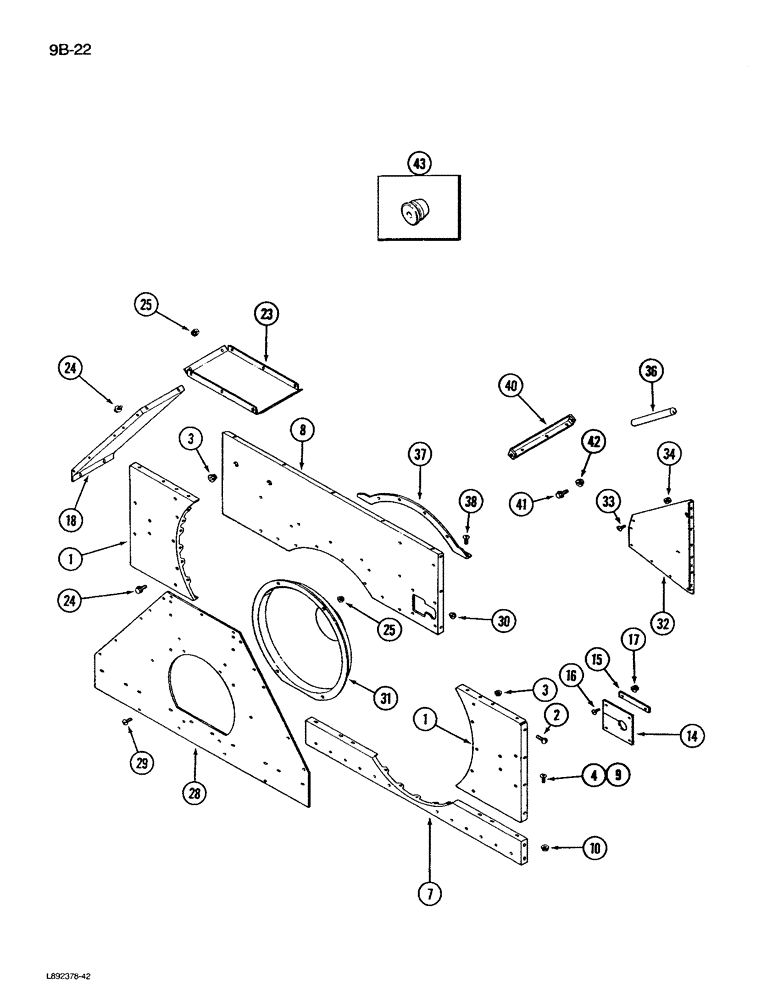

Запчасти Case IH 1680 (9B-22) - CAGE, REAR (14) - ROTOR, CONCANVES & SIEVE

1

191269C4

SUPPORT

- rotor cage, rear

2шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

8шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

40шт.

4

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

8шт.

7

182931C1

SUPPORT

- rear lower cage

1шт.

8

193392C2

SUPPORT

- rotor rear upper

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

11шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

11шт.

14

191191C2

GASKET,6.35mm Thk

SEAL - drive line dust

1шт.

15

191192C1

BAR

- dust seal

2шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

18

193393C1

COVER

- discharge side

2шт.

23

193170C1

COVER

- discharge top

1шт.

24

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

10шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

7шт.

28

193967C1

PLATE

- discharge back

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

31

182550C1

RETAINER

- rotor gear housing

1шт.

32

191398C2

SHEET

SUPPORT - gear housing inner

1шт.

33

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

36

191498C1

SEALING STRIP

SEAL - gear housing support

1шт.

37

1308696C1

SUPPORT

- rear upper cage

1шт.

38

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

7шт.

40

182634C3

SUPPORT

STIFFENER - cage grate rear

1шт.

41

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

2шт.

42

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/32 inch NC

2шт.

43

195803C1

GROMMET

- harness

1шт.
