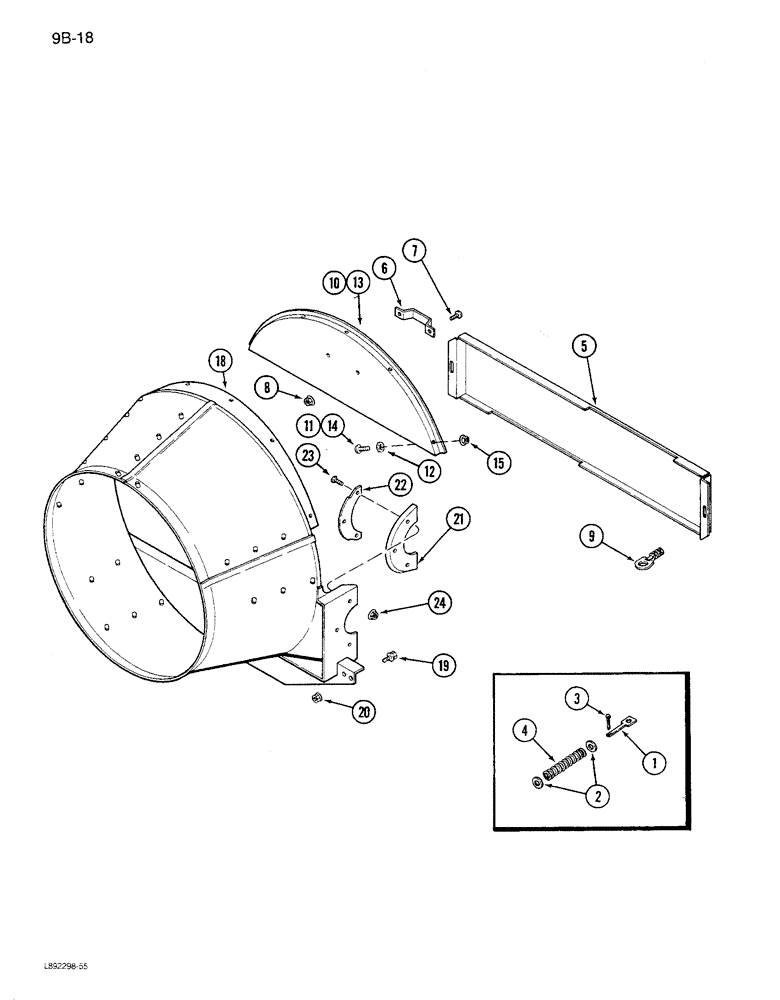

Запчасти Case IH 1680 (9B-18) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

454502R1

LATCH

- separator, front door (If equipped)

2шт.

2

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch (If equipped)

4шт.

3

648002

KNIFE

1/8" x 3/4" (If equipped)

2шт.

4

M296

SPRING

- front door latch (If equipped)

2шт.

5

193608C2

DOOR

- separator, front

1шт.

6

160638C1

HANDLE

- rotor, front door

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

9

188029C1

LATCH

- separator, front door

2шт.

10

1309385C1

DOOR

- rotor, front (Rice combine)

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

12

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

13

182974C93

DOOR

ASSEMBLY - rotor, front (With decal)

1шт.

1309385C1 is the Door Assy for Rice.

1шт.

14

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

6шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

18

1309384C2

HOUSING ASSY.

CONE - transition (Rice)

1шт.

18

1317778C2

CONE

- transition (Grain and Corn)

1шт.

19

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

4шт.

20

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

4шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

21

195202C1

SEAL

- feeder

2шт.

22

195409C1

PLATE

ASSEMBLY - seal backup, Includes: Ref. 23

2шт.

23

1324026C1

BOLT,Torx Hd, 5/16" - 18 x 28.58mm

BOLT - plate, backup

3шт.

24

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.
