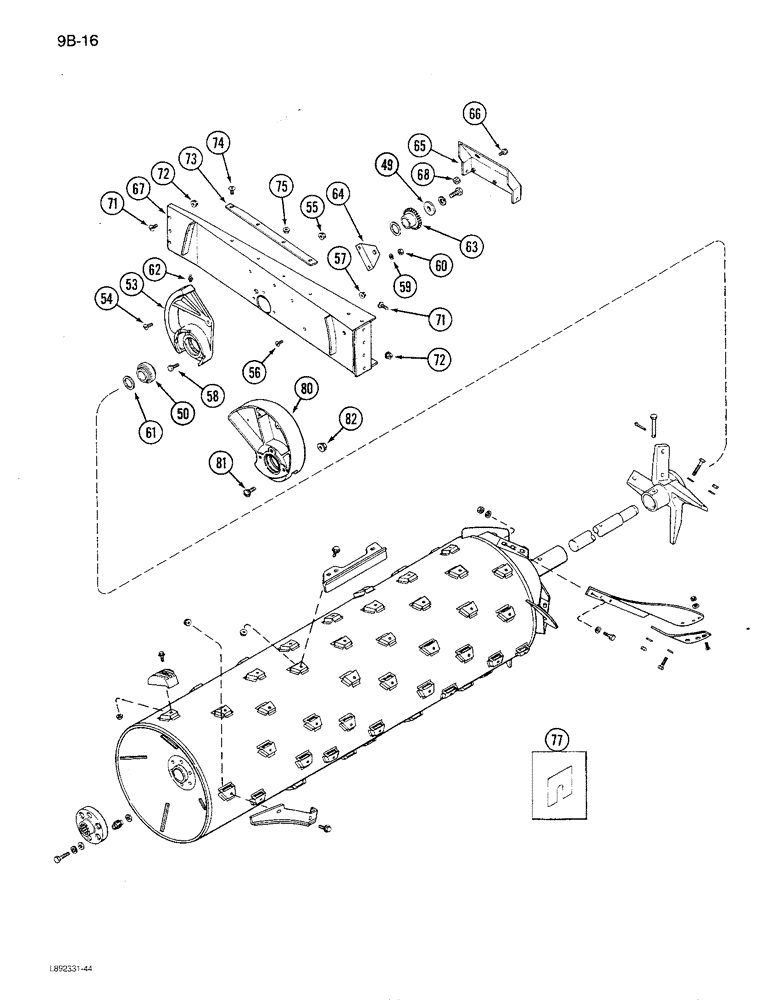

Запчасти Case IH 1680 (9B-16) - ROTOR, SPECIALTY CROP (CONTD) (14) - ROTOR, CONCANVES & SIEVE

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING ASSEMBLY - rotor front

1шт.

53

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

BOLT - slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

55

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch (One used, Ref. 80)

2шт.

57

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - front bearing housing

1шт.

62

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight

1шт.

63

1979965C1

ROTOR

- multi-position tachometer

1шт.

64

1301239C1

BRACKET

- rotor tachometer

1шт.

65

182845C2

SHIELD - RPM sensor

1шт.

66

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange lock, 3/8 NC x 3/4 inch

3шт.

67

193384C3

SUPPORT

- front bearing

1шт.

68

131-872

SPRING NUT,Ret, 3/8"-16

- standard retainer 3/8 inch

3шт.

71

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW - slotted truss head, 1/2 NC x 1-1/4 inch

8шт.

72

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

8шт.

73

1308967C1

BAR

- rotor front door hold down

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

4шт.

75

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

1324208C1

SHIM KIT

- rotor rasp, Includes: Ref. 77

1шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.053 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.093 inch

28шт.

80

1302129C2

HOUSING

- rotor front bearing (Rice combine)

1шт.

81

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/2 inch

1шт.

81

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

BOLT - round head square neck, 3/8 NC x 3 inch

1шт.

81

433-664

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

BOLT - round head square neck, 3/8 NC x 4 inch

1шт.

82

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.
