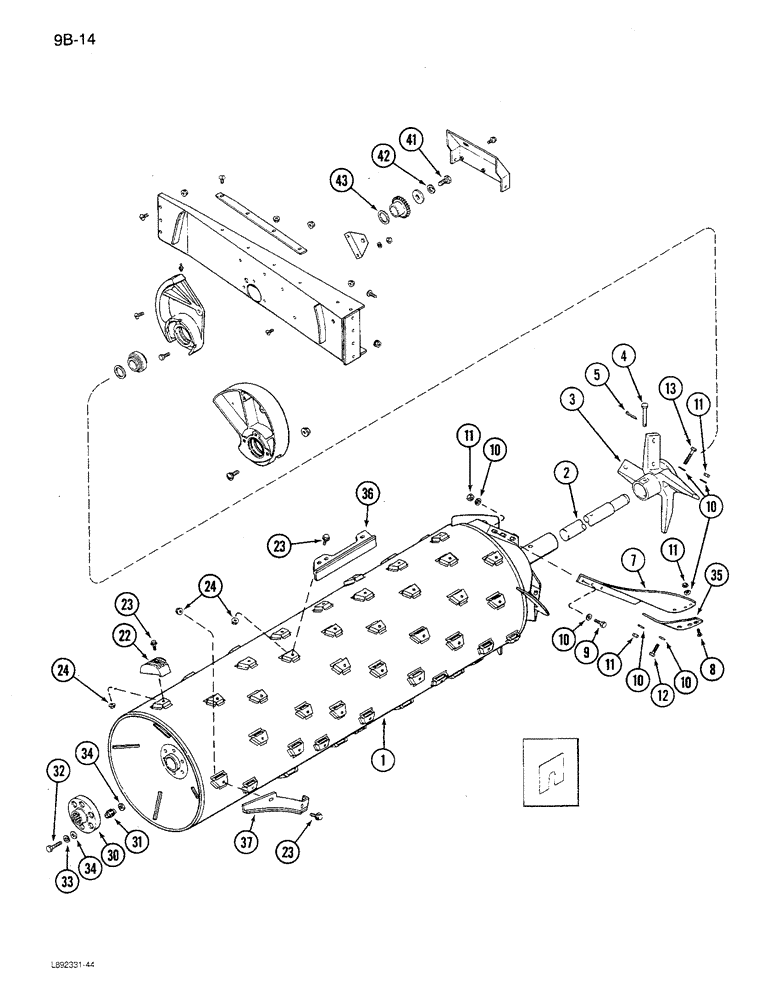

Запчасти Case IH 1680 (9B-14) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1

1347123C2

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, edible bean (Replaces 1347123C1), Includes: Ref. 2 - 35

1шт.

1

184461C1

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, rice, Includes: Ref. 2 - 35

1шт.

2

191545C2

SHAFT

- rotor front

1шт.

3

188371C3

TURBINE

IMPELLER - rotor front, 4 Blades (Shown), edible bean

1шт.

3

184460C1

IMPELLER

- rotor front, 2 Blades, rice

1шт.

4

22109R1

HEADED PIN

PIN - clevis, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

1957445C1

BLADE

KIT - rotor, Includes: Ref. 8 - 13

2шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - blade retaining

6шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

6шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/16 x 9/64 inch

26шт.

11

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

16шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

2шт.

22

1309175C1

BAR

- rasp, with spike, rice

32шт.

Part nbr that 22 bolts onto is 1309176C1

1шт.

22

1309336C1

BAR

- rasp, without spike, edible bean

44шт.

1309336C1, QTY. SHOULD BE 64. PER HERB H. BJR.

1шт.

22

1309336C1

BAR

- rasp, without spike, rice

48шт.

1309336C1, QTY. SHOULD BE 64. PER HERB H. BJR.

1шт.

22

1968743C1

BAR

- rasp, without spike, (Custom Cut) chrome

1шт.

19688743C1, Chrome Rasp is not supplied with Rotor

1шт.

22

1968970C1

BAR

- chrome rasp, with spike edible bean

32шт.

23

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

1шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, 1/2 inch NC

1шт.

30

1345307C1

COUPLING

ASSEMBLY - rotor drive (Replaces 185166C91)

1шт.

31

180703C1

PACKAGE,SERVICE

BUSHING - rotor drive hub (Set of 6)

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat

12шт.

35

1309186C1

BAR

- wear, chrome

1шт.

36

1968969C1

BAR

- chrome separator, edible bean

4шт.

37

1327676C1

BAR

KICKER - angle

2шт.

37

1968968C1

PLATE

KICKER - angle (Custom Cut) chrome

2шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.
