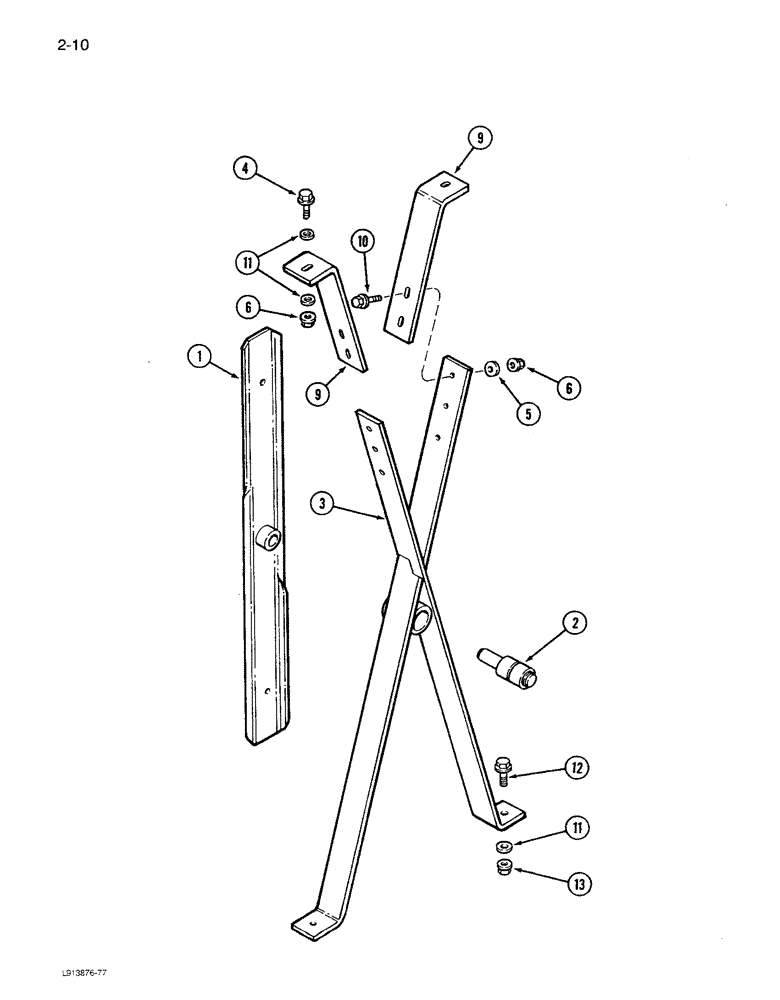

Запчасти Case IH 1680 (2-010) - RADIATOR CLEANING FAN, ADJUSTABLE SUPPORT (01) - ENGINE

1

1345399C1

FAN

BLADE - cleaning, radiator

1шт.

2

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

- blade

1шт.

3

1345404C1

SUPPORT

LEG - support, blade

1шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

5

495-81253

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

- flat, 11/32 x 7/8 x 1/16 inch

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

9

1345403C1

SUPPORT

LEG - support, adjustable

2шт.

10

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

4шт.

11

495-81253

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

- flat, 11/32 x 7/8 x 1/16 inch

8шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.
