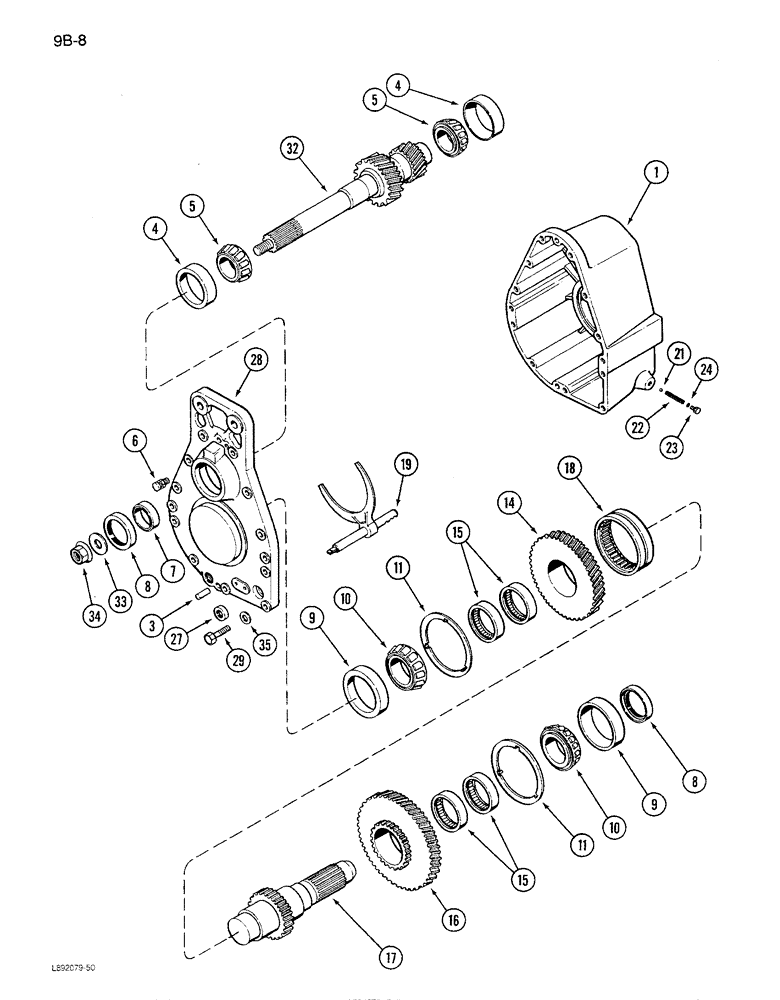

Запчасти Case IH 1680 (9B-08) - ROTOR DRIVE GEAR HOUSING (14) - ROTOR, CONCANVES & SIEVE

1315328C3

HOUSING

GEAR HOUSING ASSEMBLY - rotor drive, Includes: Ref. 1 - 35

1шт.

1

194064C91

HOUSING ASSY.

HOUSING ASSEMBLY - rotor gear, Includes: Ref. 3

1шт.

3

19846R1

DOWEL,1/2" x 1 1/4"

PIN - dowel, 1/2 x 1-1/4 inch

2шт.

4

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - bearing, housing

2шт.

5

ST783A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

CONE - bearing, housing

2шт.

6

1338222C1

BREATHER,1/8"-27, Short

Housing 1/8"-27, Short

1шт.

7

194047C1

BUSHING,49.16mm ID x 63.5mm OD x 21.02mm L

- input shaft

1шт.

8

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

- oil

2шт.

9

13363D

TAPERED BEARING

CUP - bearing, gear

2шт.

10

13367DC

ROLLER BEARING

CONE - bearing, gear

2шт.

11

194057C1

THRUST WASHER,127mm ID x 152.4mm OD x 1.6mm Thk

WASHER - thrust

2шт.

14

193826C1

PINION

GEAR - driven, 51 tooth

1шт.

15

619085C91

BEARING, NEEDLE,Needle, 76.19mm ID x 89.04mm OD x 19.05mm W

BEARING - needle

4шт.

16

193824C1

GEAR

GEAR - driven, 58 tooth

1шт.

17

194059C1

SHAFT

- rotor drive output

1шт.

18

194069C1

COLLAR

- shift

1шт.

19

1979753C1

FORK

- shift

1шт.

21

17014R1

BALL

- shifter rail

1шт.

22

107234C1

SPRING

- compression

1шт.

23

9410357

PLUG

- shaft

1шт.

27

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- shift rail

1шт.

28

194039C3

COVER

- rotor gear housing

1шт.

29

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

11шт.

32

1330280C1

SHAFT

GEARED SHAFT - input

1шт.

33

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, retainer nut

1шт.

34

1315288C1

FLANGE NUT

- hex flange lock special, 7/8 inch NC

1шт.

35

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

24

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
