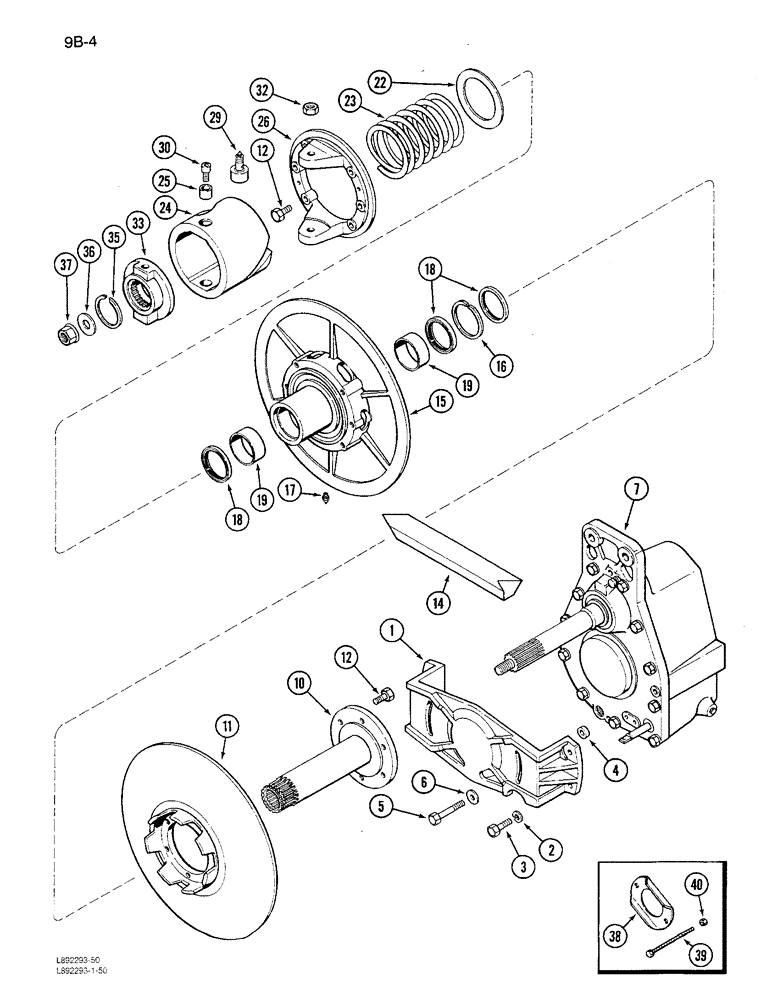

Запчасти Case IH 1680 (9B-04) - ROTOR DRIVE PULLEY AND CAM (14) - ROTOR, CONCANVES & SIEVE

1

194058C1

SUPPORT

- gear housing, rear

1шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

4

194077C1

SPACER

- gear housing

2шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

6

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/2 x 3/16 inch

2шт.

7

REF

INSTRUCTION

HOUSING ASSEMBLY - rotor drive (See Figure 9B-08)

1шт.

10

1315291C2

HUB

- fixed variable pulley (Welded, if equipped)

1шт.

10

184489C1

HUB

- fixed variable pulley (Machined forged, if equipped)

1шт.

11

1315292C1

PULLEY

- fixed variable

1шт.

12

26318R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

12шт.

14

193945C2

V-BELT,2554.68 mm L

Rotor variable drive, Over center 2554.68 mm L

1шт.

15

1315294C3

PULLEY

ASSEMBLY - adjustable variable, Includes: Ref. 16 and 17

1шт.

16

537602R1

RING

- pulley retaining

1шт.

17

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT 1/8"-27 x .66 lg

1шт.

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

AND SEAL KIT - variable pulley, Includes: Ref. 18 and 19

1шт.

18

193965C91

SEAL

- pulley

3шт.

will sub to C2 upon depletion. Service Bulletin NHE SB 06399 states this "new version spring will be painted blue for indentification" this service bulletin is incorrect. Per Terry Radewan and this correction these springs will not be painted blue. There is a correction is filed with service bulletins in hard copy catalogs.

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - pulley (Order 188839C91)

2шт.

22

1315521C1

THRUST BEARING

BEARING ASSEMBLY - rotor drive thrust

1шт.

P/N 1315521C1. PLEASE SEE THE 2188 COMBINE FIGURE 9B-4 ON THE ROTOR DRIVE, REF# 17 P/N 188210C91 IS THE NEW THRUST BEARING USED

1шт.

23

193936C2

SPRING

- rotor drive torque sensing (Use with 186365C1 bolt)

1шт.

23

184486C1

SPRING

- rotor drive torque sensing (Use with 1319996C2 rod)

1шт.

24

1315299C1

CAMSHAFT

CAM ASSEMBLY - torque sensing

1шт.

25

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

26

1315344C2

HUB

- cam follower

1шт.

29

1315343C1

BEARING,38.1 mm OD x 22.22 mm

- cam follower

2шт.

30

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

32

425-1110

NUT,5/8"-18, G5

2шт.

33

1315297C2

HUB,20T

CAM - rotor drive torque sensing

1шт.

35

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- retaining, hub cam follower

1шт.

36

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 57/64 x 1-7/8 x 7/32 inch

1шт.

37

1315288C1

FLANGE NUT

- special hex lock

1шт.

38

1315304C2

PLATE

- torque spring (Replaces 1315304C1)

1шт.

Used to service variable speed pulley.

1шт.

39

1319996C2

ROD

ROD - torque sensing spring (11-1/2 inch, if equipped)

2шт.

39

186365C1

BOLT

BOLT - torque sensing spring (10 inch, if equipped)

2шт.

40

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC

1шт.
