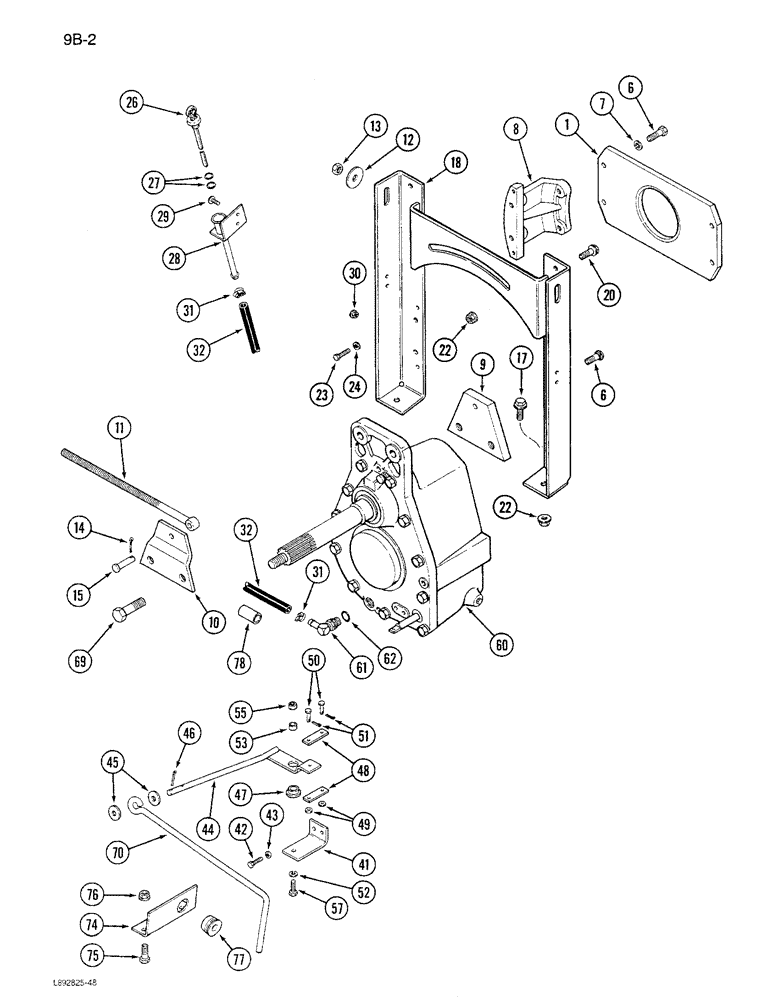

Запчасти Case IH 1680 (9B-02) - ROTOR DRIVE MOUNTING (14) - ROTOR, CONCANVES & SIEVE

1

181315C1

PLATE

- gear housing support, front

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

181314C2

BLOCK

- housing support, front

2шт.

9

188141C1

SUPPORT

- gear housing anchor

1шт.

10

188142C1

SUPPORT

- gear housing anchor

1шт.

11

188143C1

EYEBOLT

EYE BOLT - gear housing

1шт.

12

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch

2шт.

13

425-1010

NUT,5/8"-11, G5

2шт.

14

432-1216

COTTER PIN,3/16" x 1"

1шт.

15

21573R1

HEADED PIN,1/2" x 2"

PIN - clevis, 1/2 x 2 inch

1шт.

17

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange lock, 1/2 NC x 1-1/4 inch

2шт.

18

1338397C1

SUPPORT ASSY.

SUPPORT - gear housing

1шт.

20

435-820

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

6шт.

22

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

6шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

26

194066C91

DIPSTICK

GAUGE ASSEMBLY - rotor gear housing, Includes: Ref. 27

1шт.

27

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

28

193946C1

TUBE,12.7 mm OD

- gear housing gauge

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

2шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

31

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

32

NSS

NOT SOLD SEPARAT

HOSE - gear housing (Order S118466 and, Serial Range: cut-length)

1шт.

41

1979167C1

SUPPORT ASSY.

SUPPORT - gear housing pivot

1шт.

42

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

44

1979164C1

LEVER

- rotor drive shift

1шт.

45

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

46

432-1216

COTTER PIN,3/16" x 1"

2шт.

47

1979265C1

BUSHING

- shift lever

1шт.

48

188169C1

BAR

- shift lever

2шт.

49

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

4шт.

50

21886R1

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

2шт.

51

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

52

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

53

1979327C1

SPACER

- lever

1шт.

55

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

57

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

60

REF

INSTRUCTION

HOUSING ASSEMBLY - rotor drive (See Figure 9B-08)

1шт.

61

188272C1

ELBOW

- gear housing

1шт.

62

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

69

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

70

186648C2

ROD

- lever shaft control linkage

1шт.

74

188816C91

ANGLE

- support, rod lever control link (With decal)

1шт.

75

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

76

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

77

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- control rod

1шт.

78

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - cover, oil hose

1шт.
