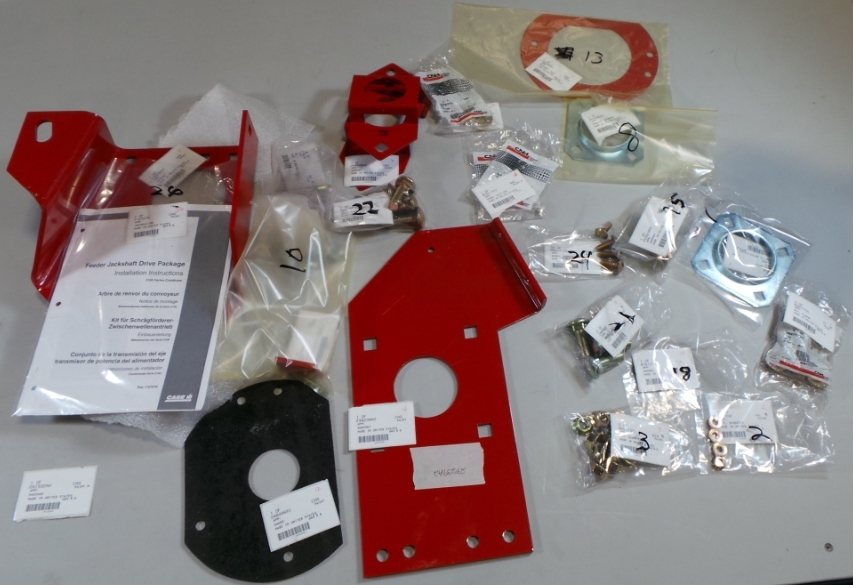

Запчасти Case IH 1680 (9A-53) - PACKAGE FEEDER JACKSHAFT (13) - FEEDER

1

241932A2

KIT

Incl 2 - 26

1шт.

2

7-67270

INSTRUCTION

1шт.

3

84165643

BEARING HOUSING

1шт.

4

86974037

FLANGE

1шт.

5

241930A1

PULLEY

1шт.

6

239239A2

SUPPORT

1шт.

7

248406A1

GUARD

1шт.

8

252441A1

SEAL RETAINER

1шт.

9

86624125

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

4шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

11

253531A1

SHAFT

1шт.

12

239240A2

SUPPORT

1шт.

13

240437A3

PLASTIC-RUBBER TUBE,60.3 mm OD

1шт.

14

240436A2

SUPPORT

2шт.

15

241580A1

SUPPORT

1шт.

16

253910A2

SUPPORT

1шт.

17

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

7шт.

18

86512371

SERRATED NUT,Flg, USR, 1/2"-13

10шт.

19

86977731

FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5

5шт.

20

87613305

LOCK WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

4шт.

21

87611057

SELF-TAP SCREW

2шт.

22

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

4шт.

23

86632556

JAM NUT,Jam, 5/8"-11, G5

4шт.

24

280805

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

4шт.

25

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

26

87613289

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

1шт.
