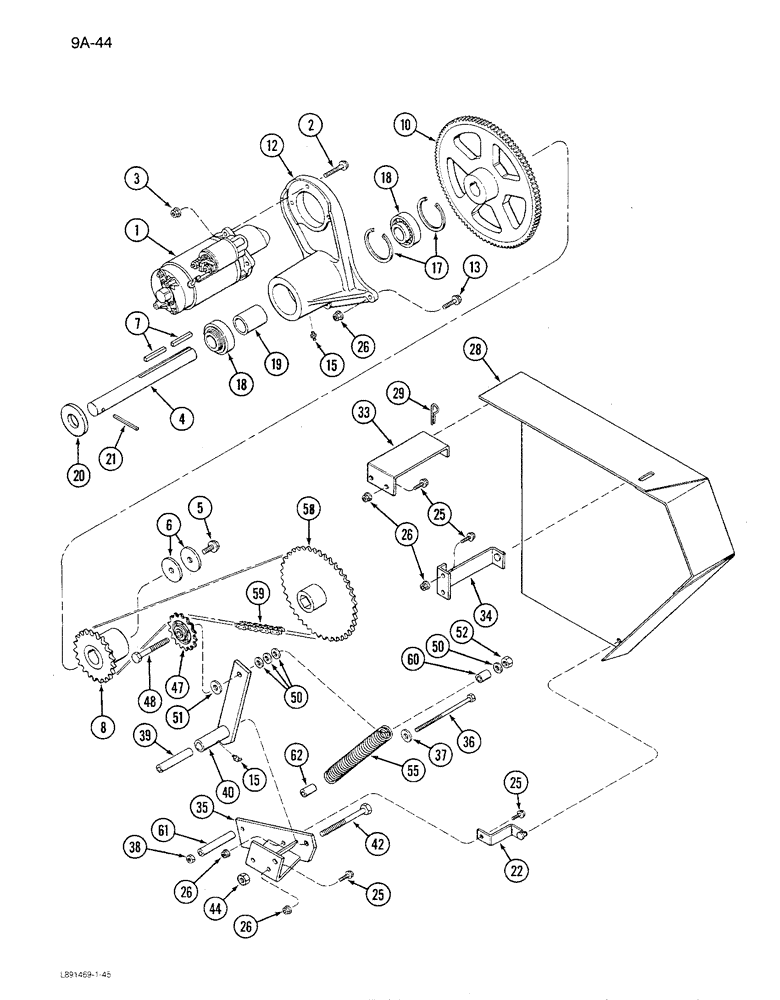

Запчасти Case IH 1680 (9A-44) - FEEDER REVERSER, WITHOUT ROCK TRAP (13) - FEEDER

1

245927C91

STARTING MOTOR

MOTOR ASSEMBLY - reverser, feeder (See Figure 4-76)

1шт.

1

245927C93R

REMAN-STARTER

Reman for New PN 245927C91

1шт.

1

245927C93C

CORE-STARTER

Return Number

1шт.

2

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

3шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

4

1321534C1

SHAFT

- reverser

1шт.

5

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW - hex flange, 1/2 NC x 1 inch

1шт.

6

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

- flat, 17/32 x 2 x 7/64 inch

2шт.

7

Q51

KEY,3/8" Sq x 2 1/2", Par

2шт.

8

1329717C1

SPROCKET

- drive

1шт.

10

1321537C91

FLYWHEEL

ASSEMBLY - motor, reverser

1шт.

12

1321539C1

HOUSING

- shaft, reverser

1шт.

13

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW - hex flange, 3/8 NC x 1-1/2 inch

2шт.

15

87414

LUBE NIPPLE,1/4" - 28

FITTING - lube straight, 1/4 inch

2шт.

17

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

2шт.

18

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSEMBLY - ball

2шт.

19

1321523C1

SPACER

- bearing

1шт.

20

896-16036

WASHER,39mm ID x 78mm OD x 7mm Thk

- flat, 39 x 78 x 7 mm

1шт.

21

28340R1

PIN,1/2" x 3", Coiled

1шт.

22

1979317C1

SUPPORT ASSY.

SUPPORT - shield

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

1шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

28

1321516C2

GUARD

SHIELD - reverser, feeder

1шт.

29

480523R1

HAIR PIN COTTER

3шт.

33

1329840C1

BRACKET

- support, rear

1шт.

34

1329838C2

BRACKET

- support, front

1шт.

35

1979299C2

SUPPORT

- idler bar

1шт.

36

25253R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

- hex, 3/8 NC x 7 inch

1шт.

37

495-81002

WASHER,3/8"

- flat, 7/16 x 1-3/8 x 5/64 inch

1шт.

38

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

39

1979303C1

SPACER

- tube

1шт.

40

1979305C1

ARM

SUPPORT - idler

1шт.

42

326-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

1шт.

44

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

47

629972R91

DRIVE SPROCKET,15T

SPROCKET - idler

1шт.

48

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

50

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 5/64 inch

4шт.

51

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch

1шт.

52

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

55

1330032C1

SPRING

- return

1шт.

58

1329720C2

SPROCKET

- driven

1шт.

59

1321524C94

CHAIN,60, 76 Links x 19.05mm = 1447.8mm

ASSEMBLY, O-ring, new

1шт.

For service use 75 links of 1793D (10ft bulk chain) and 1786D connecting link; OR, For service order 75 links of 1979285C1 chrome roller chain and two connecting link 1329768C1.

1шт.

111714A1

LINK,Connecting

LINK connecting

1шт.

60

UA17298

SPACER,7/8" Tube x 1 1/16"

- tube, 7/8 x 1-1/16 inch

1шт.

61

1979304C1

SPACER

- spring

1шт.

62

154397C1

SPACER,5/8" Tube x 1 1/4"

- 5/8 x 1-1/4 inch tube

1шт.
