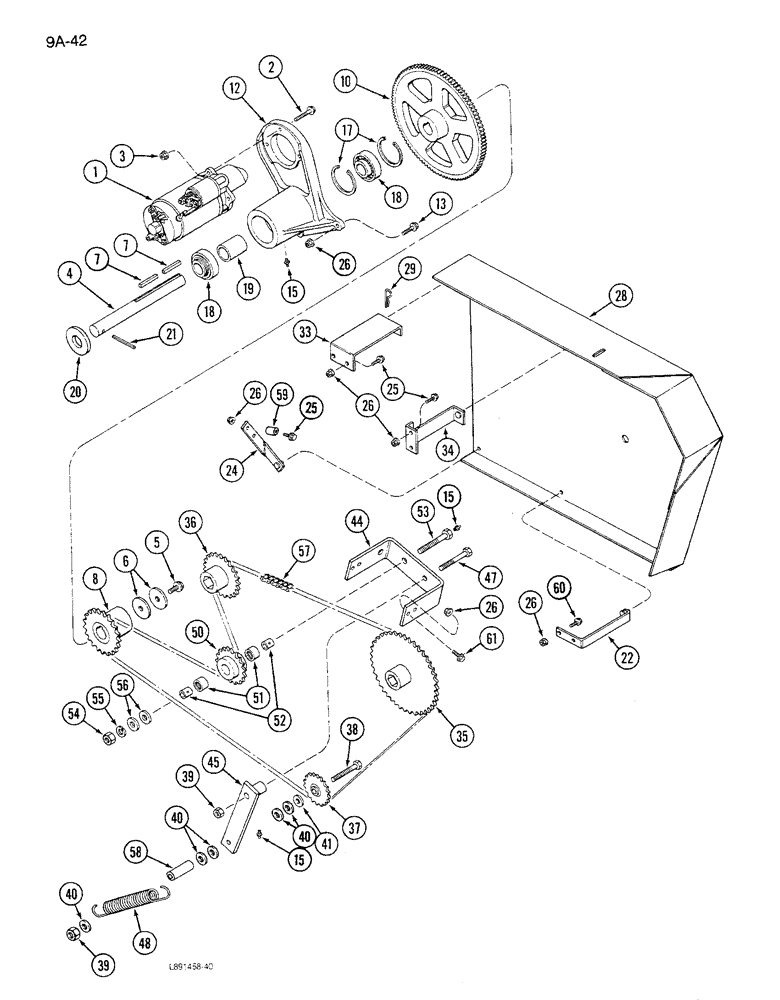

Запчасти Case IH 1680 (9A-42) - FEEDER REVERSER, WITH ROCK TRAP (13) - FEEDER

1

245927C91

STARTING MOTOR

MOTOR ASSEMBLY - reverser, feeder (See Figure 4-76)

1шт.

1

245927C93R

REMAN-STARTER

Reman for new P/N 245927C91

1шт.

1

245927C93C

CORE-STARTER

Return Number

1шт.

2

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

3шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

4

1321534C1

SHAFT

- reverser

1шт.

5

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW - hex flange, 1/2 NC x 1 inch

1шт.

6

22042R1

WASHER

- flat, 17/32 x 2 x 7/64 inch

2шт.

7

Q51

KEY,3/8" Sq x 2 1/2", Par

2шт.

8

1329717C1

SPROCKET

- drive

1шт.

10

1321537C91

FLYWHEEL

ASSEMBLY - motor, reverser

1шт.

12

1321539C1

HOUSING

- shaft, reverser

1шт.

13

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW - hex flange, 3/8 NC x 1-1/2 inch

2шт.

15

87414

LUBE NIPPLE,1/4" - 28

FITTING - lube straight, 1/4 inch

3шт.

17

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

2шт.

18

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSEMBLY - ball

2шт.

19

1321523C1

SPACER

- bearing

1шт.

20

30190R1

WASHER,M39 x 78.5 x 7, HT

- flat, 39 x 78 x 7 mm

1шт.

21

28340R1

PIN,1/2" x 3", Coiled

1шт.

22

1321780C2

SUPPORT

- shield

1шт.

24

1321710C1

SUPPORT

- shield

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

1шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

28

1321905C2

GUARD

SHIELD - reverser, feeder

1шт.

29

480523R1

HAIR PIN COTTER

4шт.

33

1329840C1

BRACKET

- support, rear

1шт.

34

1329838C2

BRACKET

- support, front

1шт.

35

1329720C2

SPROCKET

- driven

1шт.

36

1329719C2

SPROCKET

- driven

1шт.

37

541857R92

SPROCKET,15T

- idler

1шт.

38

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

39

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

40

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 5/64 inch

5шт.

41

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch

1шт.

44

1321528C2

SUPPORT

- idler, outer

1шт.

45

1321933C3

SUPPORT

- idler

1шт.

47

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

48

1330032C1

SPRING

- return, idler

1шт.

50

1321531C93

SPROCKET

ASSEMBLY - idler, fixed, Includes: Ref. 51

1шт.

51

630836C91

NEEDLE BEARING,Needle, 25.4mm ID x 33.35mm OD x 20.62mm W

BEARING - needle 1-19/64 OD

1шт.

52

1327991C1

BUSHING,19.04mm ID x 25.37mm OD x 25.65mm L

- bearing, inner

2шт.

53

1327990C1

BOLT,Hex, 3/4" - 10 x 4, Type 5, Drilled

Idler Hex, 3/4"-10 x 4, Drilled

1шт.

54

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

55

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

56

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

2шт.

57

1321529C95

CHAIN,#60, 118 Links x 19.05mm = 2247.9mm

ASSEMBLY, o-ring, new

1шт.

For service order 119 links of No. 60H chain and one connecting link 1786D and one roller link 1316D.

1шт.

111714A1

LINK,Connecting

LINK connecting

1шт.

58

187217C1

SPACER,7/8" Tube x 1 13/16"

- tube, 7/8 x 1-13/16 inch

1шт.

59

85490H

SPACER

- tube, 5/8 x 3/4 inch

2шт.

60

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

61

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

4шт.
