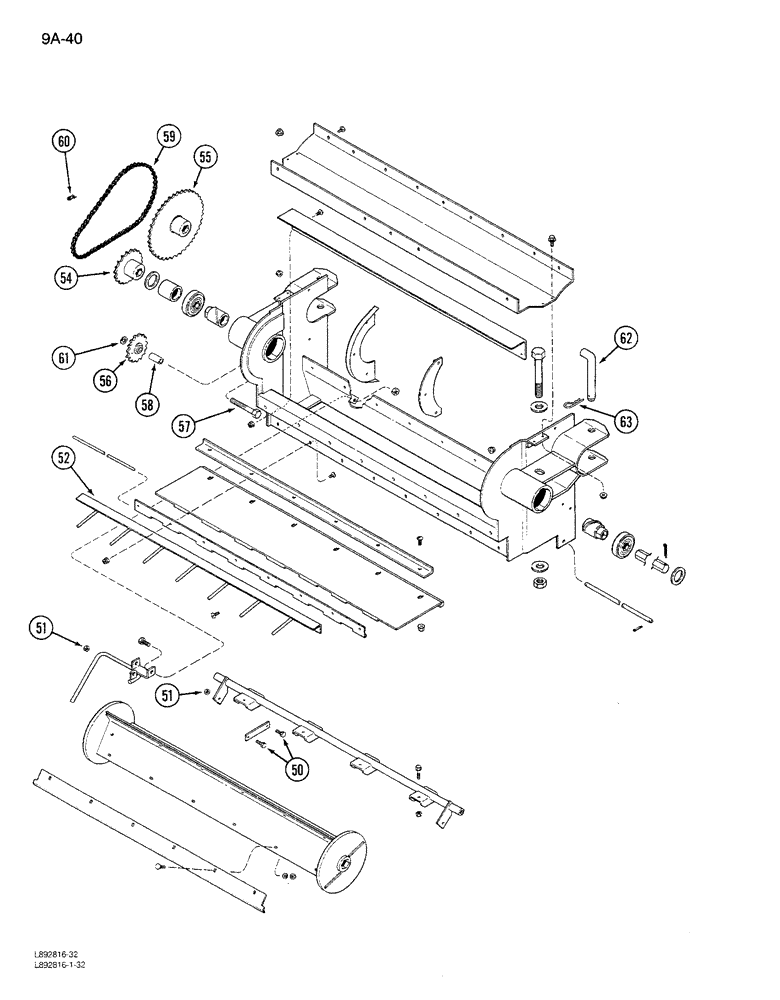

Запчасти Case IH 1680 (9A-40) - ROCK TRAP (CONTD) (13) - FEEDER

50

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, continued

2шт.

51

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

2шт.

52

1320776C1

SUPPORT

ANGLE - support

1шт.

54

1329719C2

SPROCKET

- drive, 20 tooth

1шт.

55

1320110C3

SPROCKET

- drive, 32 tooth

1шт.

56

541857R92

SPROCKET,15T

ASSEMBLY - tightener, 15 tooth

1шт.

57

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

58

187217C1

SPACER,7/8" Tube x 1 13/16"

- pivot, 7/8 x 1-13/16 inch

1шт.

59

1979285C1

CHAIN (CE)

CHAIN ASSEMBLY - sprocket (124 links), Includes: Ref. 60

1шт.

60

1329768C1

LINK,19.05mm Pitch

ASSEMBLY - connecting, with chrome pins

2шт.

61

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 5/64 inch

1шт.

62

192533C2

ROD

PIN - pivot

1шт.

63

486830R1

COTTER PIN

PIN - cotter, hair type

1шт.
